Tractor · 2009Unverified

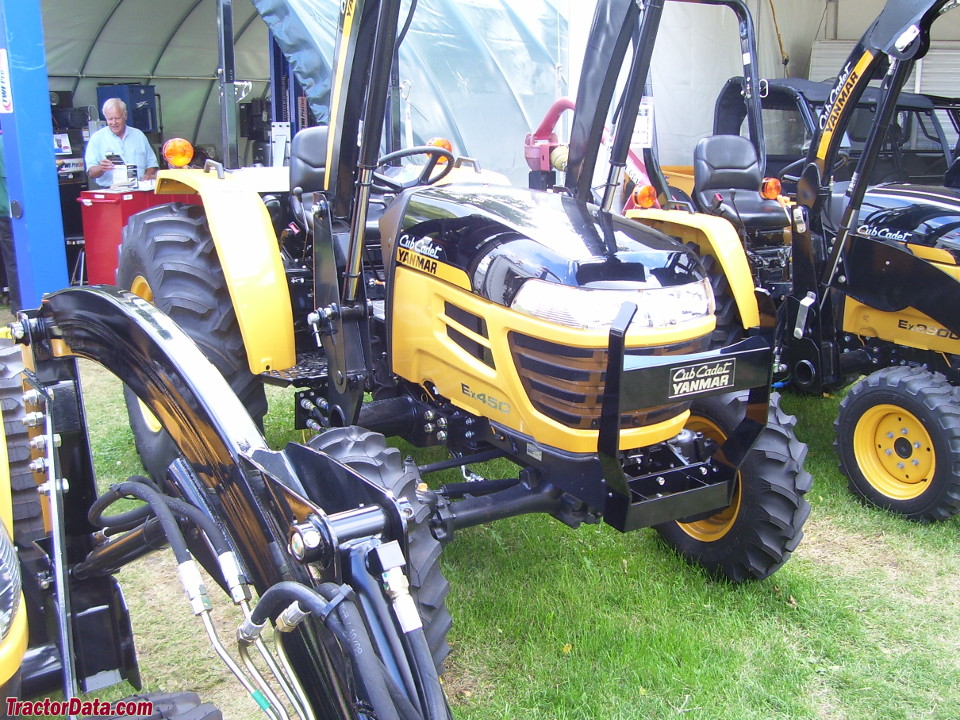

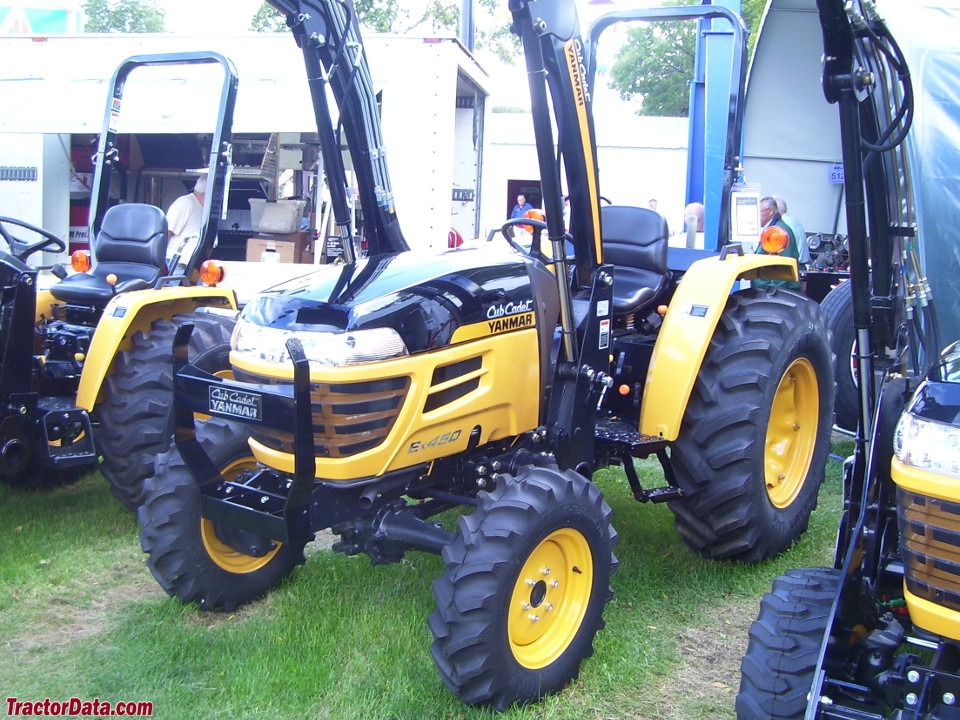

Cub Cadet Ex450
Cub Cadet Ex450 — Ex Series · 38 hp. Reference specifications; pending source verification.
The Cub Cadet Ex450 is a tractor with a rated power output of 38 hp, positioning it at the lighter end of its class. It was manufactured from 2009 to 2011 and is equipped with a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 9-speed gearbox. The tractor's operating weight is listed at 1587 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1587 kg
Catalogue coverage
Variants represented
2
Richest spec table
60 rows
Recorded power
38 hp
Recorded weight
1587 kg
Transmissions
9-speed synchronized shuttle
Production years
2009-2011
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorCub CadetReference
ManufacturerYanmarReference
Compact Utility tractorReference
Original price$21,299 (2009)Reference
Four-wheel driveReference
Steeringhydraulic powerReference
ROPS standardReference
Engine
Yanmar 2.2L 4-cyl dieselReference
Engine33.6 kWReference
YanmarReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power33.6 kWReference
Air cleanerdual dry elementsReference
Rated RPM2700Reference
Oil capacity5.3 LReference
Coolant capacity4.4 LReference
Transmission
9-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears9 forward and reverseReference
Oil capacity26.5 LReference
PTO & Hydraulics
PTO (claimed)28.0 kWReference
Typeopen centerReference
Pump flow32.2 lpmReference
Total flow49.2 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1117 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Capacities
Fuel42.8 LReference
Front axle7.6 LReference
Dimensions
Wheelbase182 cmReference
Weight1587 kgReference
Front tire8-16Reference
Rear tire14.9-24Reference
Ag front8-16Reference
Ag rear14.9-24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear44x18-20Reference
Industrial front10-16.5Reference
Industrial rear17.5-24Reference
Length322 cmReference
Width182 cmReference
Operating weight1587 kgReference
Ground clearance34 cmReference
Cub Cadet Ex450 attachments
front-end loaderReference
backhoeReference
Attachment overview
Front-end loaderReference
BackhoeReference
Cub Cadet CB85 Backhoe
Backhoe typeCub Cadet CB85 BackhoeReference
Digging depth261 cmReference
2-Foot flat digging depth259 cmReference
Reach from pivot360 cmReference
Loading height220 cmReference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
