Tractor · 2011Unverified

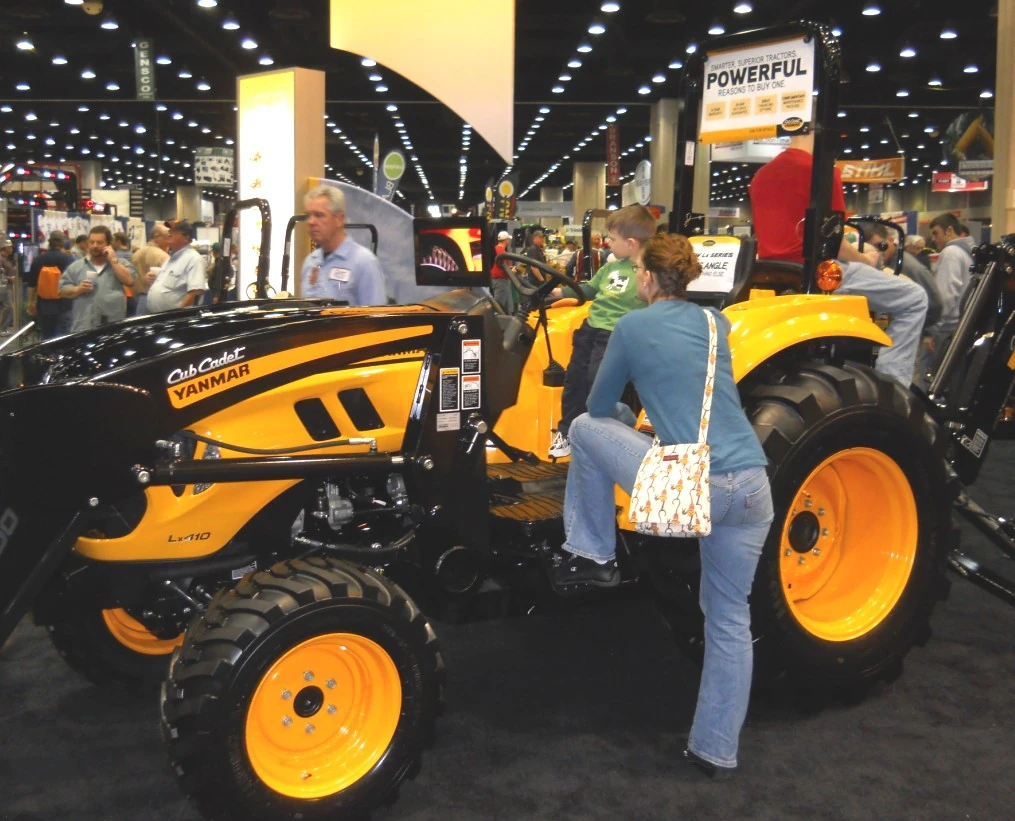

Cub Cadet Lx410

Name: Cub Cadet Lx410
Brand: Cub Cadet

Cub Cadet Lx410 — Lx Series · 41 hp. Reference specifications; pending source verification.

The Cub Cadet Lx410 is a tractor rated at approximately 41 hp, situated at the lower end of its class in terms of power output. It was manufactured in 2011 and features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 12-speed gearbox. The tractor's listed operating weight is 1626 kg, and it is suitable for operations extending over areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

41 hp

Weight

1626 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

41 hp

Recorded weight

1626 kg

Transmissions

12-speed power shuttle

Production years

2011-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCub CadetReference

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydraulic powerReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Yanmar 2.2L 4-cyl dieselReference

Fuel tank45.0 LReference

Engine (gross)30.6 kWReference

YanmarReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke88 x 90 mmReference

Power (gross)30.6 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.3 LReference

Coolant capacity4.8 LReference

Transmission

12-speed power shuttleReference

TransmissionHydraReverserReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Oil capacity32.2 LReference

PTO & Hydraulics

Typeopen centerReference

Valves2 to 3Reference

Pump flow34.1 lpmReference

Steering flow25.7 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at 24"/610mm)1251 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540Reference

Dimensions

Wheelbase189 cmReference

Weight1626 kgReference

Front tire8-16Reference

Rear tire14.9-24Reference

Weight612 kgReference

Ag front8-16Reference

Ag rear14.9-24Reference

Lawn/turf front27x10.5-15Reference

Lawn/turf rear44x18-20Reference

Lawn/turf front27/12LL-15Reference

Lawn/turf rear22.5LL-16.1Reference

Industrial front10-16.5Reference

Industrial rear17.5LL-24Reference

Length314 cmReference

Width176 cmReference

Ground clearance38 cmReference

Cub Cadet Lx410 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Cub Cadet Yanmar CB85 Backhoe

Backhoe typeCub Cadet Yanmar CB85 BackhoeReference

Digging depth261 cmReference

2-Foot flat digging depth259 cmReference

Reach from pivot360 cmReference

Loading height220 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1691 kgReference

Dipperstick force1104 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
