Tractor · 2010Unverified
Cub Cadet Sx3100
Cub Cadet Sx3100 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
920 kg
Hover a source tag to verify
Overview
DistributorCub CadetReference
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesbevel gearReference
Steeringhydraulic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
Sx3100 TDmower deckReference

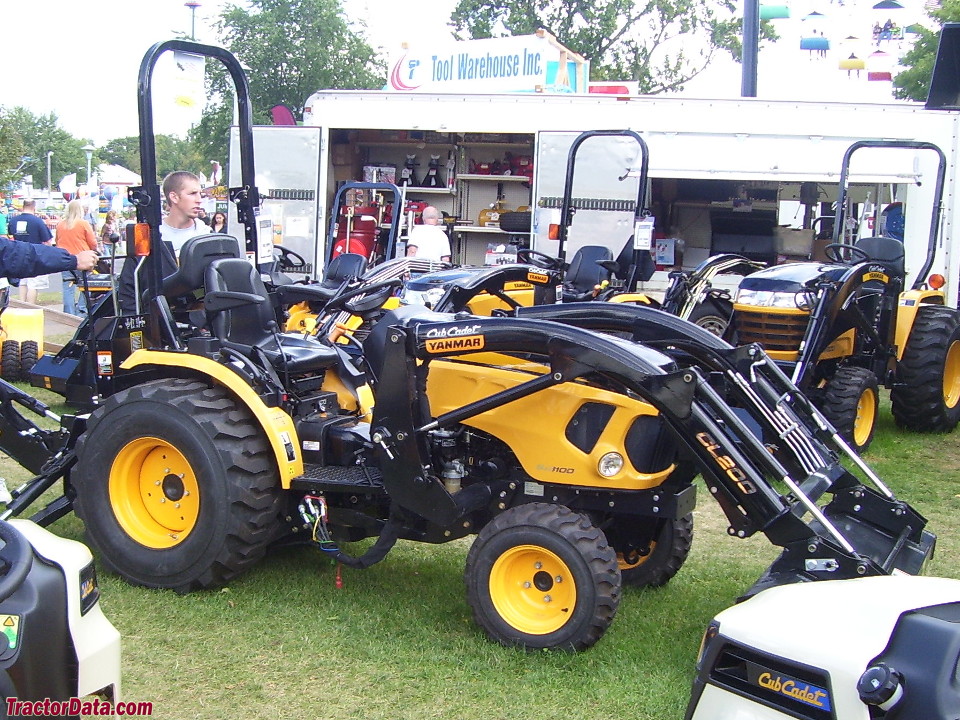

Sx3100 TLfront loaderReference

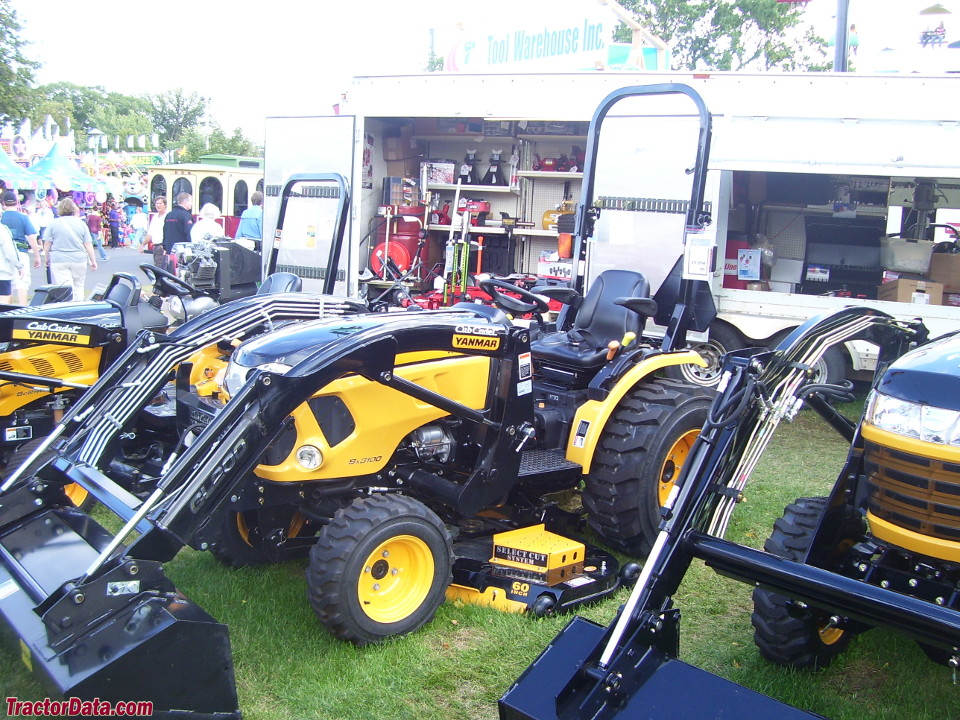

Sx3100TLDloader and deckReference
Sx3100 TLBloader backhoeReference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)23.3 kWReference
Engine (net)22.4 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power (net)22.4 kWReference
Power (gross)23.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dryReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.4 LReference
Coolant capacity2.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity17.4 LReference
PTO & Hydraulics
PTO (claimed)17.5 kWReference
Typeopen centerReference
Pump flow18.2 lpmReference
Total flow38.2 lpmReference
Steering flow20.1 lpmReference
Rear Type1Reference
Controlposition controlReference
Rear lift (at 24"/610mm)548 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2495Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Engine RPM2100@2500Reference
Dimensions
Wheelbase165 cmReference
Weight920 kgReference
Weight439 kgReference
Lawn/turf front24x8.5-14Reference
Lawn/turf rear36x14-15Reference
Industrial front23x8.5-12Reference
Industrial rear14-17.5Reference
Length276 cmReference
Width131 cmReference
Ground clearance26 cmReference
Cub Cadet Sx3100 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Sx3100 Serial Number Location
Serial number plate on the right side of the Cub Cadet Yanmar Sx3100 tractor frame, above the front axle.Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Cub Cadet Yanmar DS60Reference
Type3-bladeReference
Cutting width152 cmReference
Cut height2 to 13 cmReference
Cub Cadet Yanmar CB65 Backhoe
Backhoe typeCub Cadet Yanmar CB65 BackhoeReference
Digging depth208 cmReference
2-Foot flat digging depth203 cmReference
Reach from pivot279 cmReference
Loading height162 cmReference
Swing Arc180°Reference
Bucket force1103 kgReference
Dipperstick force624 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
