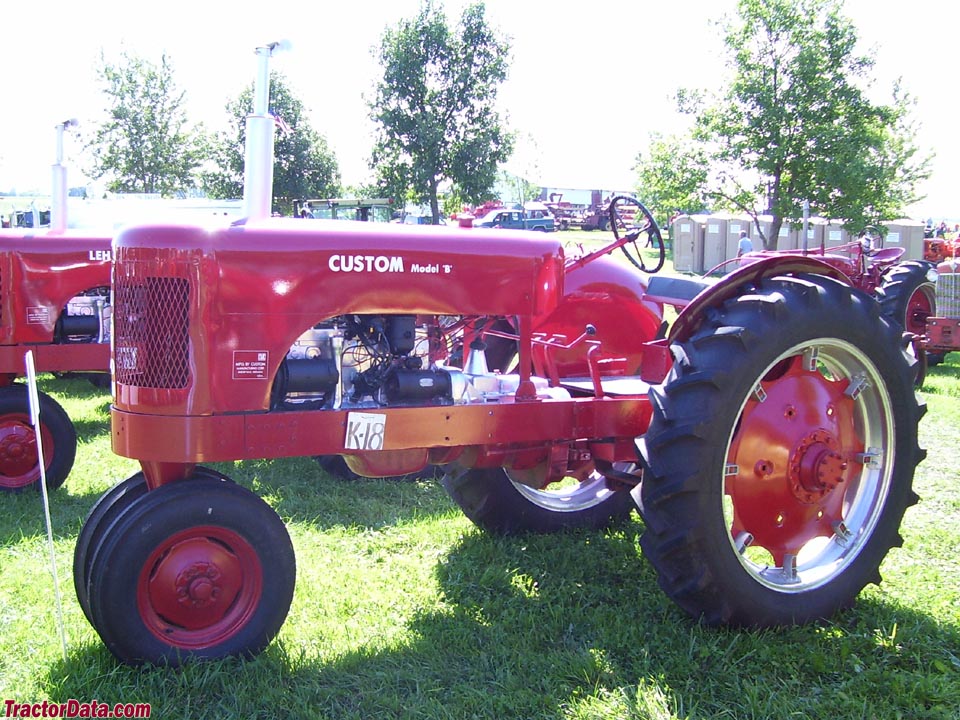

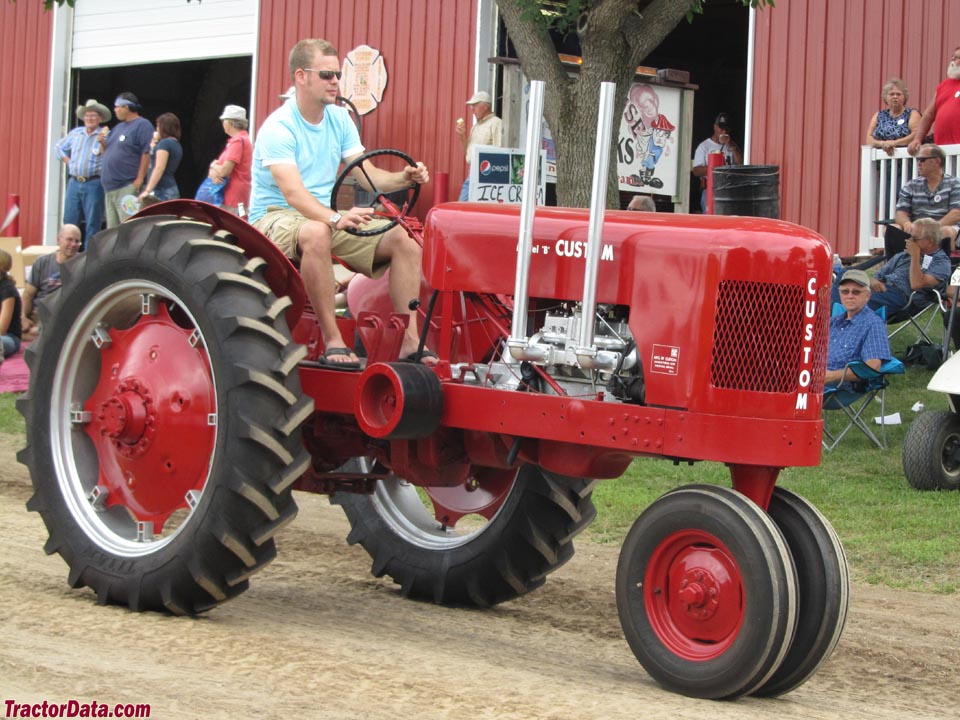

The Custom B is a tractor model with a rated power output of 52 hp, positioning it at the lighter end of its class. It was manufactured between 1947 and 1949. The model features a 6-cylinder petrol liquid-cooled engine, coupled with a 2-wheel drive system and a 4-speed gearbox. Its operating weight is listed at 1564 kg, with a capacity for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
1564 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
52 hp
Recorded weight
1564 kg
Transmissions
4-speed gear
Production years
1947-1949
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCustomReference
Row-Crop tractorReference
Built in Shelbyville, Indiana, USAReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Variants
Btricycle frontReference
Cwide frontReference
Engine
Chrysler 3.6L 6-cyl gasolineReference
Engine38.8 kWReference
Plows2 or 3 (14-inch)Reference
Chrysler IND 5Reference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke83 x 111 mmReference
Power38.8 kWReference
Compression6.6:1Reference
Rated RPM1800Reference
Torque191.2 NmReference
Torque RPM1200Reference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Dimensions
Wheelbase223 cmReference
Weight1564 kgReference
Front tire6-16Reference
Rear tire10-38Reference
Ag front6-16Reference
Ag rear10-38Reference
Length330 cmReference
Height180 cmReference
Shipping weight1564 kgReference
Ground clearance63 cmReference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM1011Reference
Speed886.97 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
