Tractor · Unverified

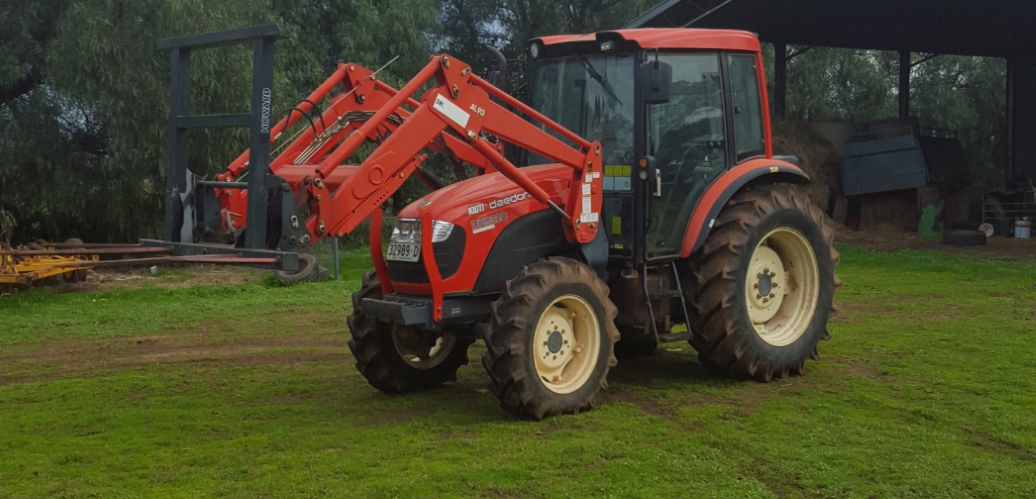

Daedong DK901
Daedong DK901 · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3557 kg
Hover a source tag to verify
Overview
ManufacturerDaedongReference
Built in KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPs; cab with A/C optionalReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank85.9 LReference
Engine67.1 kWReference
Perkins 1104C-44Reference
turbo dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power67.1 kWReference
Compression18.2:1Reference
Rated RPM2200Reference
Firing order1-3-4-2Reference
Oil capacity9.0 LReference
Coolant capacity10.5 LReference
Transmission
12-speedReference
Gears12 forward and reverseReference
Oil capacity60.0 LReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase214 cmReference
Weight3557 kgReference
Front tire11.2-24Reference
Rear tire18.4-30Reference
Ag front11.2-24Reference
Ag rear18.4-30Reference
Length433 cmReference
Height287 cmReference
Ground clearance44 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
