Tractor · Unverified

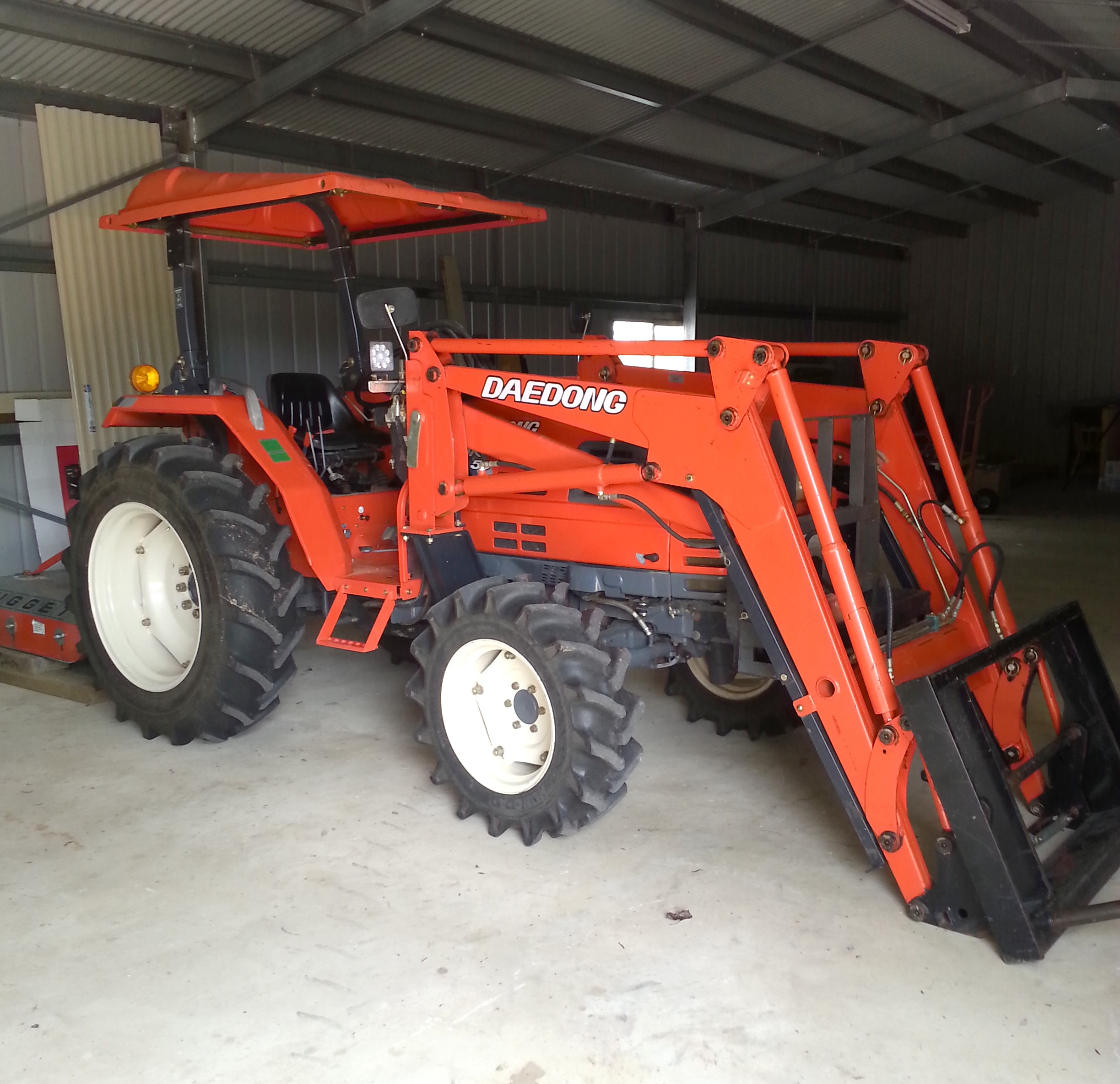

Daedong EX40
Daedong EX40 · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1744 kg
Hover a source tag to verify
Overview
ManufacturerDaedongReference
Built in KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Daedong 2.0L 3-cyl dieselReference
Fuel tank37.4 LReference
Engine30.6 kWReference
Daedong 4A200LXMReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Power30.6 kWReference
Rated RPM2600Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
TransmissionhydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)25.4 kWReference
Total flow63.6 lpmReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase187 cmReference
Weight1744 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Ag front8-16Reference
Ag rear13.6-24Reference
Length345 cmReference
Width163 cmReference
Height241 cmReference
Ground clearance34 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
