Tractor · 1974Unverified

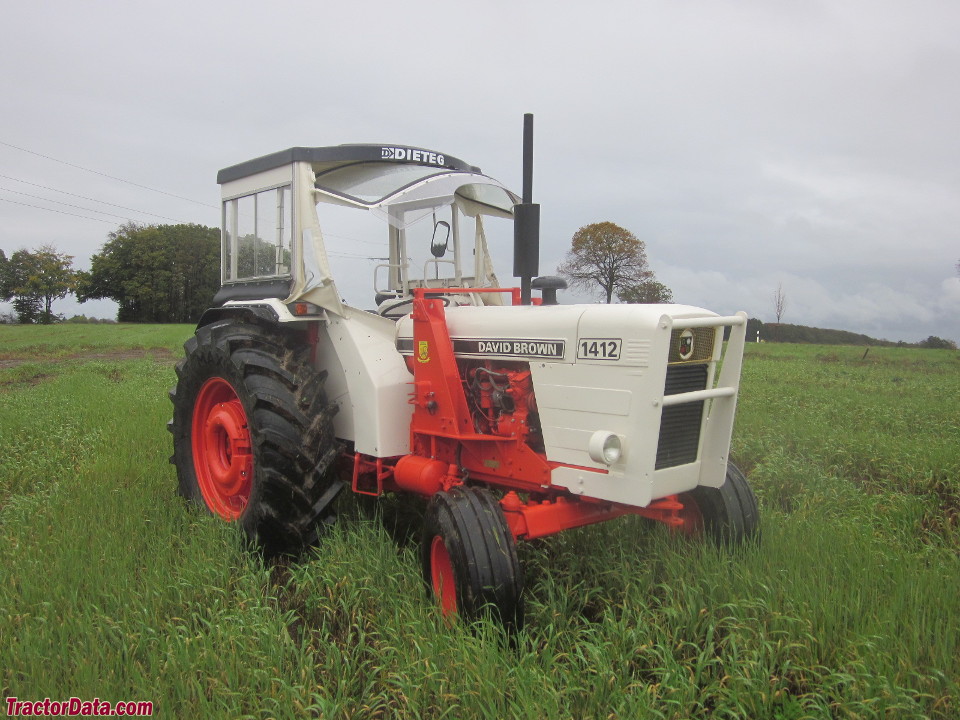

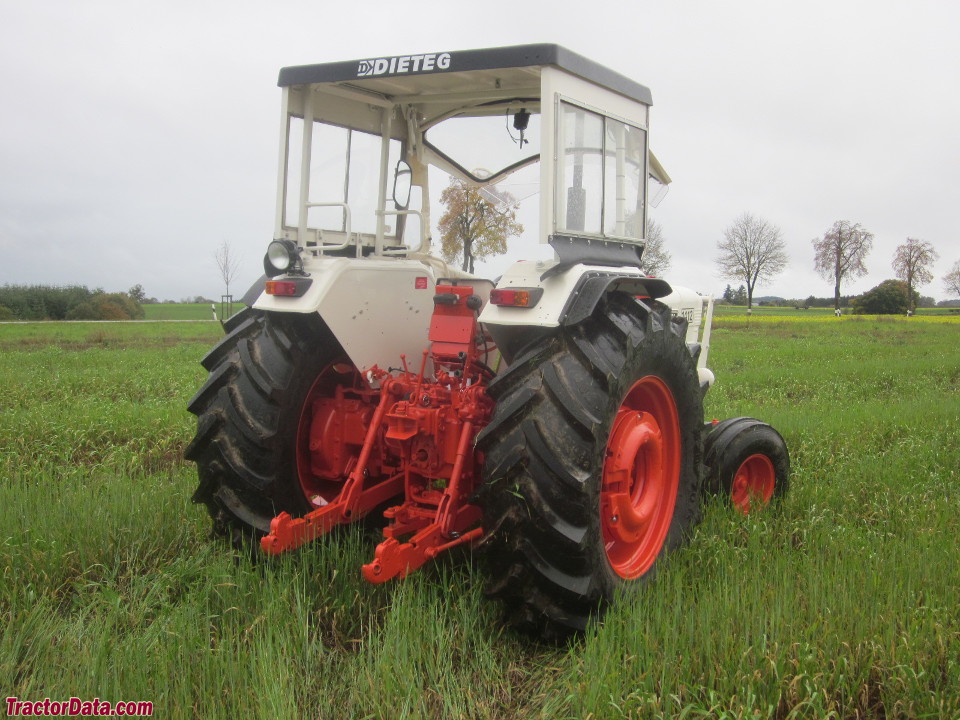

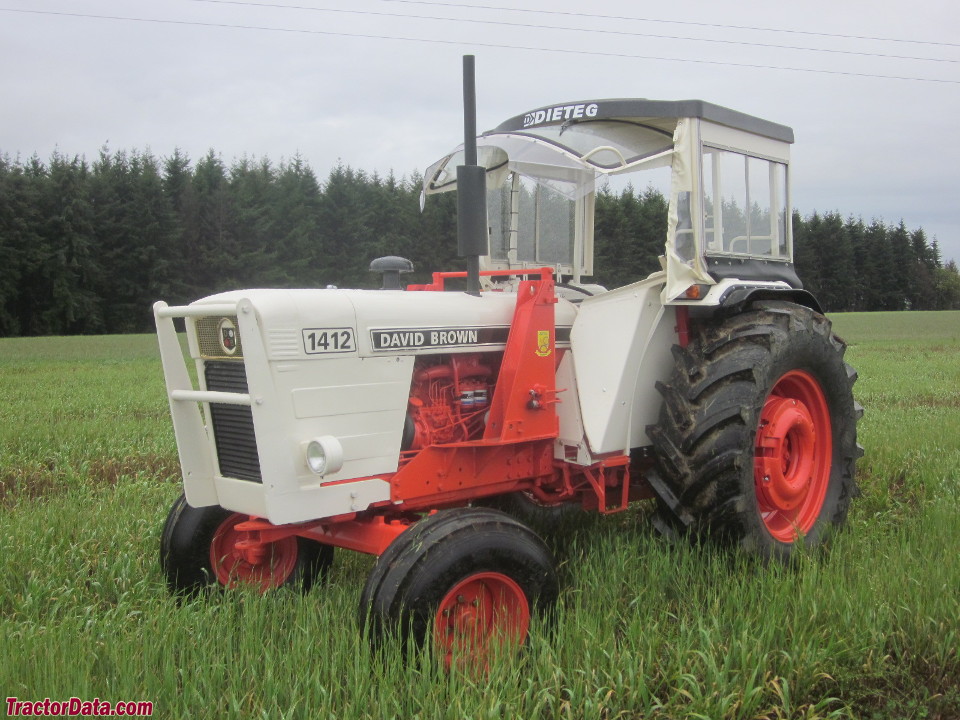

David Brown 1412
David Brown 1412 · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Max power
48.1 kW
Weight
3474 kg
Hover a source tag to verify
Overview
ManufacturerDavid BrownReference
Built in Meltham Mills, Huddersfield, England.Reference
Original price was $12,700 in 1976Reference
Two-wheel driveReference
Power steeringReference
Differential wet disc brakesReference
Two-post fixed ROPS. Cab optional.Reference
Variants
1410synchroReference
1412Hydra-ShiftReference
Engine
David Brown 3.6L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine (net)67.9 kWReference
Drawbar (claimed)48.5 kWReference
Drawbar (tested)48.1 kWReference
David BrownReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 114 mmReference
Power (net)67.9 kWReference
Air cleanerdryReference
Compression16:1Reference
Rated RPM2300Reference
Idle RPM700-2300Reference
Starter volts12Reference
Oil capacity15.0 LReference
Coolant capacity14.2 LReference
Power at rated engine speed60.1 kWReference
Max power48.1 kWReference
Transmission
12-speed partial power shiftReference
TransmissionHydra-ShiftReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Oil capacity42.0 LReference
Four gears (1-4) with three ranges. Power shift between gears.Reference
PTO & Hydraulics
PTO (claimed)60.4 kWReference
PTO (tested)60.1 kWReference
Typeopen centerReference
Pressure137.9 barReference
Pump flow24.6 lpmReference
Rear TypeIIReference
Rear lift1179 kgReference
Rear lift2041 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1800Reference
Engine RPM1000@2000Reference
Power at rated PTO speed56.8 kWReference
Dimensions
Wheelbase228 cmReference
Weight3474 kgReference
Front tire7.50-16Reference
Rear tire16.9/14-34Reference
Ag front7.50-16Reference
Ag rear16.9/14-34Reference
Ag front6.00-19Reference
Ag rear12.4/11-36Reference
Ag rear13.6/12-36Reference
Length368 cmReference
Width195 cmReference
Clearance (front axle)50 cmReference
Clearance (rear axle)41 cmReference
Front tread142 to 203 cmReference
Rear tread142 to 203 cmReference
Operating3474 kgReference
Max Drawbar1360 kgReference
Max Drawbar1134 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH100Reference
Capacities
Max capacity4989 kgReference
David Brown 1412 Height
Hood165 cmReference
ROPS261 cmReference
Exhaust228 cmReference
Test results
Turbo diesel 12-speed 2WDMay 4 - 18, 1976Link: Nebraska Tractor Test 1210 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Fuel use17.0 l/hourReference
Drawbar performanceReference
Fuel use18.2 l/hourReference
Max pull3544 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
