Tractor · 1960Unverified

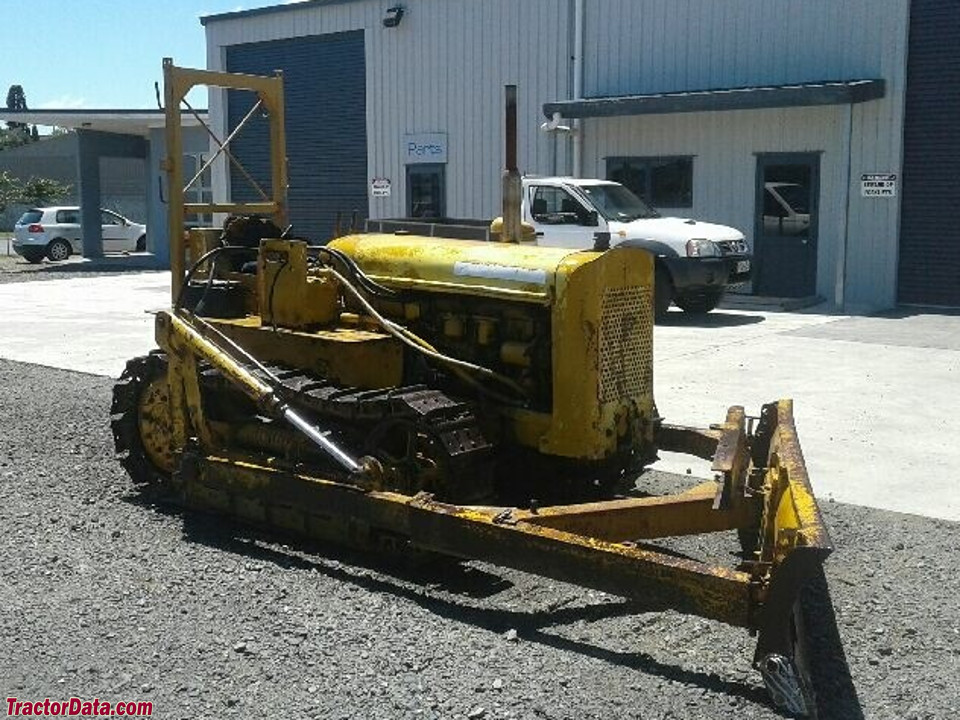

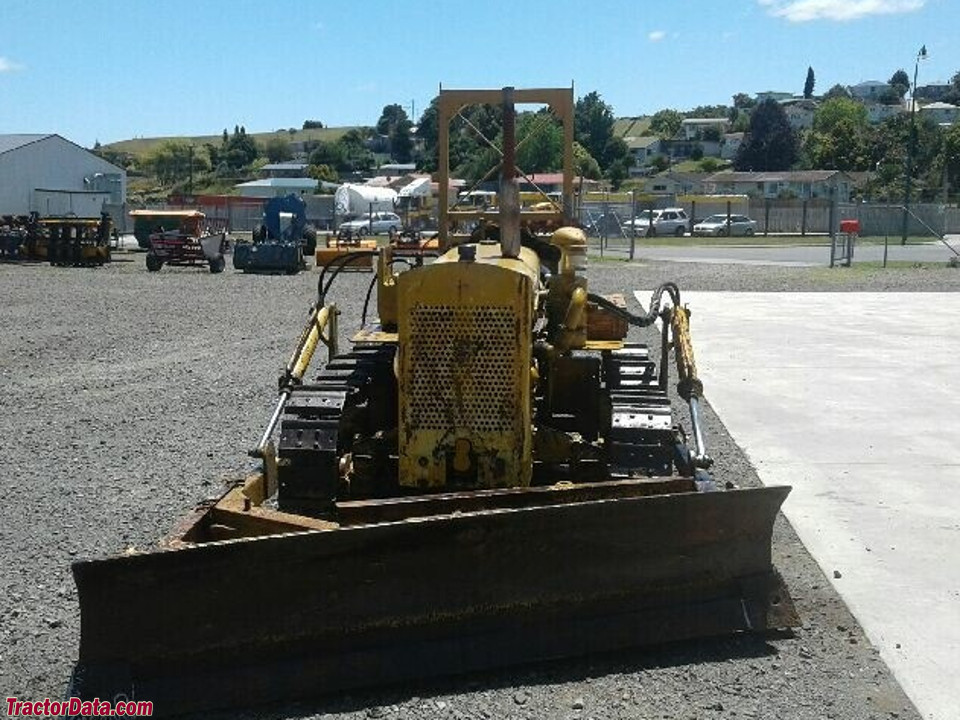

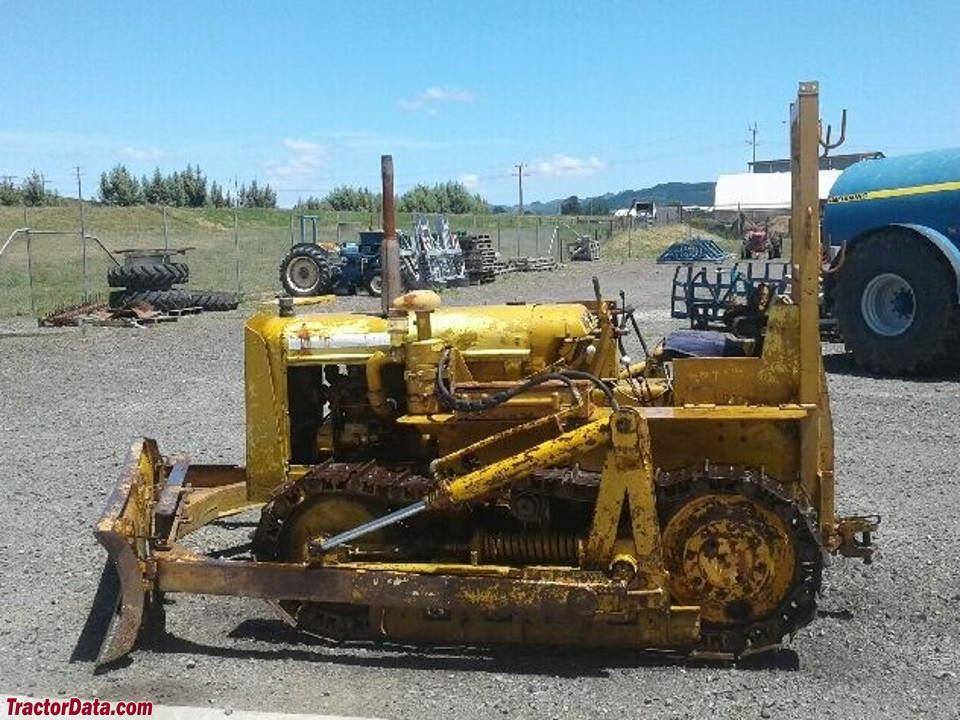

David Brown 40TD
David Brown 40TD — Agricultural Crawler tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
8050 to 8450 pounds
Hover a source tag to verify
Overview
ManufacturerDavid BrownReference
Agricultural Crawler tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
DrivecrawlerReference
Open operator station.Reference
Engine
David Brown 2.7L 4-cyl dieselReference
Fuel tank263.8 LReference
Drawbar (claimed)24.6 kWReference
David BrownReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke92 x 102 mmReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.3 LReference
Coolant capacity15.9 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch305mm dry discReference
Oil capacity54.0 LReference
PTO & Hydraulics
PTO (claimed)29.1 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM580@1800Reference
Engine RPM1110@1800Reference
Engine RPM1240@1800Reference
Engine RPM2360@1800Reference
Dimensions
Weight8050 to 8450 poundsReference
13-inch tracksReference
Length287 cmReference
48G Width160 cmReference
56G Width180 cmReference
Height (hood)157 cmReference
Gauge121 cmReference
Gauge142 cmReference
48G Shipping3651 kgReference
56G Shipping3696 kgReference
48G Operating3787 kgReference
56G Operating3832 kgReference
David Brown 40TD Tracks
Width33 cmReference
Width35 cmReference
Width40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
