Tractor · 1961Unverified

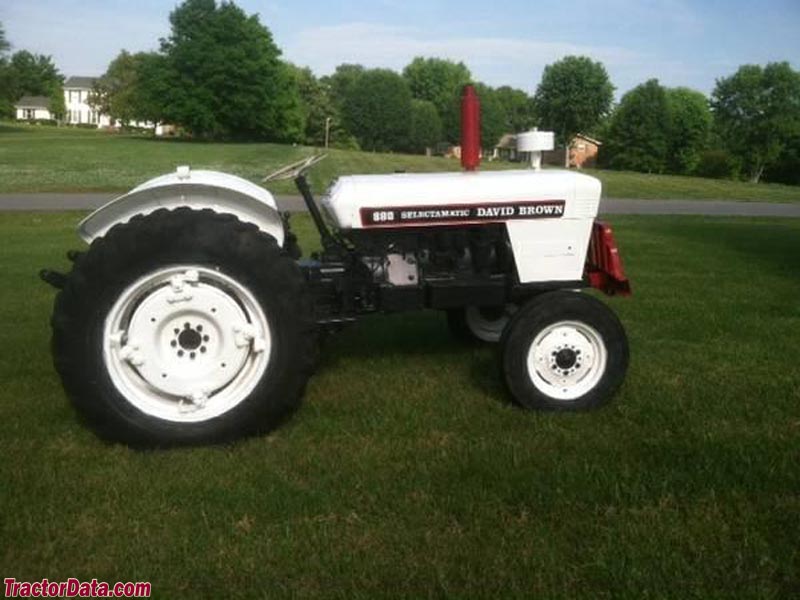

David Brown 880 Selectamatic
David Brown 880 Selectamatic — Model year 1961-19651965-1971 · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Max power
26.5 kW
Weight
3765 to 3970 pounds
Hover a source tag to verify
Overview
ManufacturerDavid BrownReference
Utility tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
Total built33,378Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Differential mechanical expanding shoe brakesReference
Open operator station. Cab optional.Reference
Engine
David Brown 2.7L 3-cyl dieselReference
Fuel tank51.9 LReference
Engine (gross)34.3 kWReference
Plows3Reference
Drawbar (tested)26.5 kWReference
David Brown AD3/55Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 114 mmReference
Power (gross)34.3 kWReference
Fuel use10.5 l/hourReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2200Reference
Idle RPM700-2200Reference
Torque162.7 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.2 LReference
Coolant capacity8.5 LReference
Power at rated engine speed31.5 kWReference
Max power26.5 kWReference
Transmission
6-speed gearReference
12-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity23.0 LReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)30.6 kWReference
PTO (tested)31.5 kWReference
Typeopen centerReference
Pressure137.9 barReference
Pump flow27.3 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)816 kgReference
Rear PTO Type540/1000Reference
Engine RPM540@1800Reference
Engine RPM1000@2000Reference
Power at rated PTO speed30.3 kWReference
Dimensions
Wheelbase202 cmReference
Weight3765 to 3970 poundsReference
Front tire6.00x16Reference
Rear tire14.9-28Reference
Ag front6.00x16Reference
Ag rear14.9-28Reference
Ag rear12.4-32 (UK)Reference
Length308 cmReference
Width162 cmReference
Clearance (front axle)50 cmReference
Shipping1707 kgReference
Operating1800 kgReference
Steering wheel149 cmReference
880 Serial Numbers
1965530001Reference
1966531022Reference
1967539410Reference
1968546000Reference
1969551553Reference
1970557013Reference
1971560766Reference
Final563379Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter21 cmReference
Width14 cmReference
RPM1555Reference
Speed963.17 meters/minReference
Max capacity2658 kgReference
David Brown 880 Height
Cab233 cmReference
Exhaust218 cmReference
Test results
Diesel 6-speed 2WDSeptember 13 - 23, 1966Link: Nebraska Tractor Test 946 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull2418 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
