Tractor · 1958Unverified

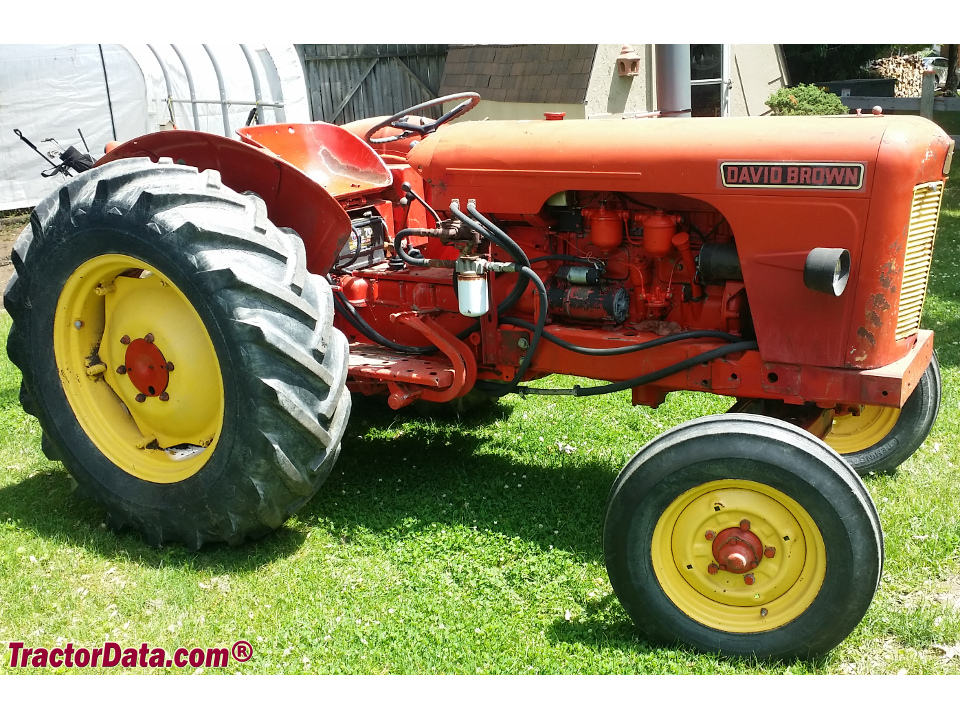

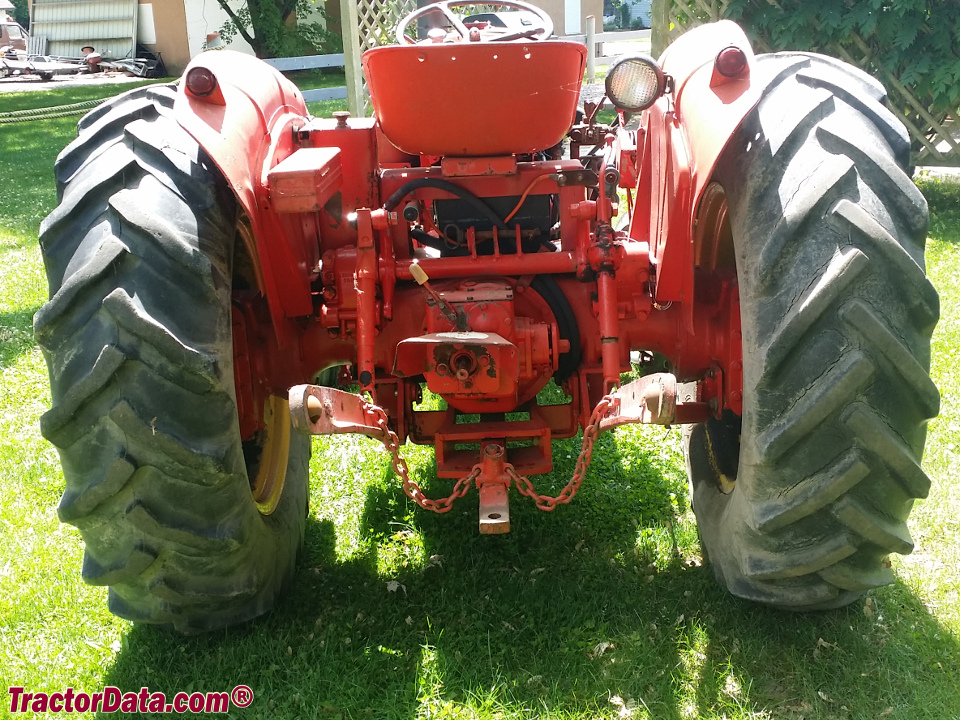

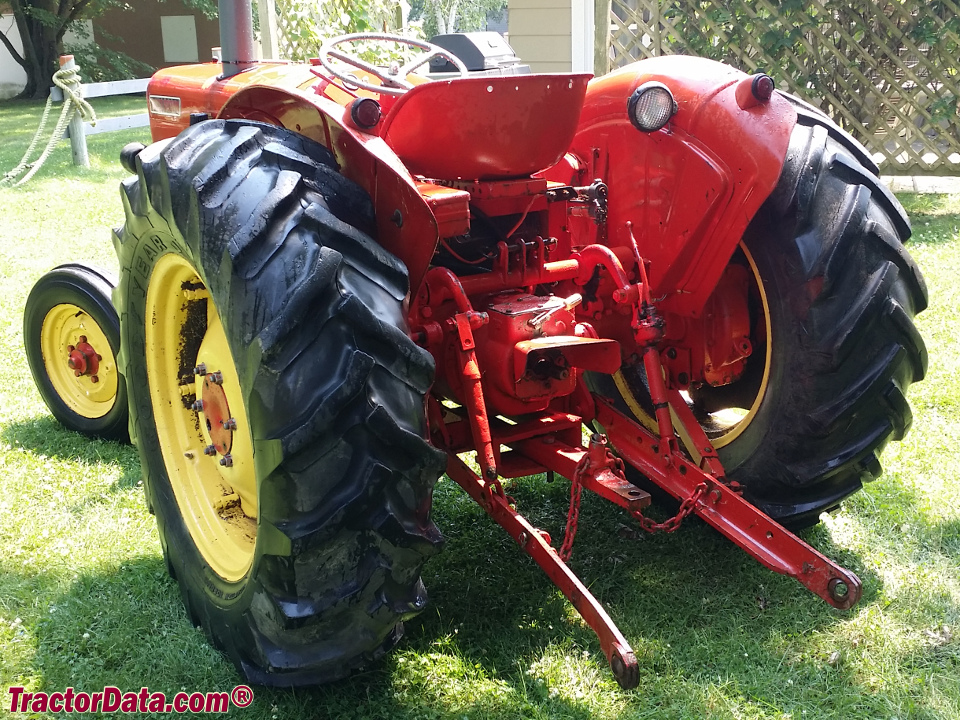

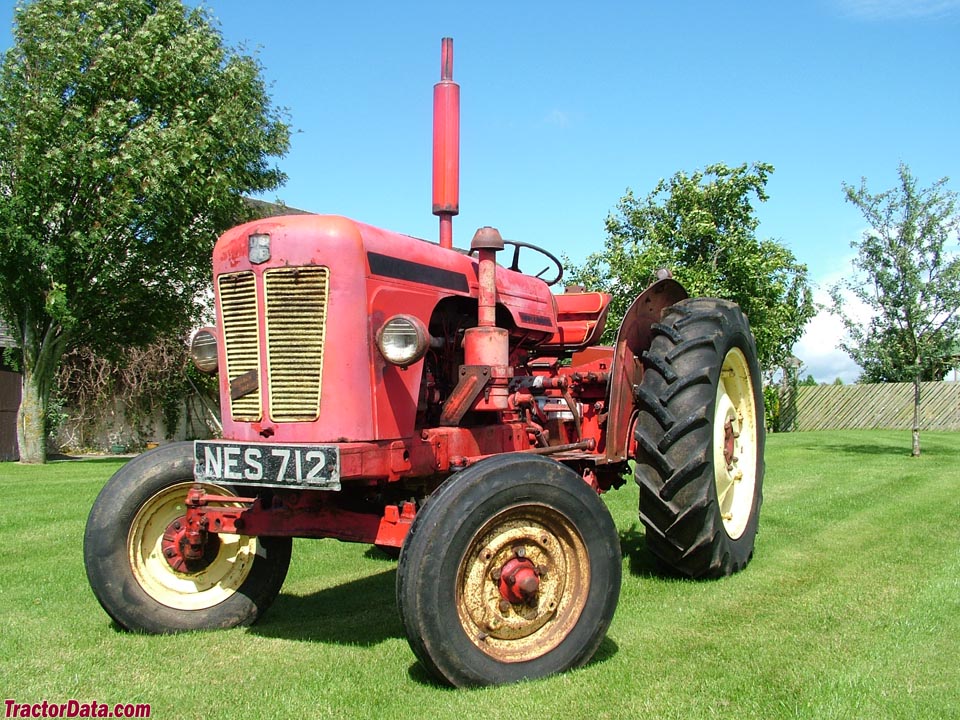

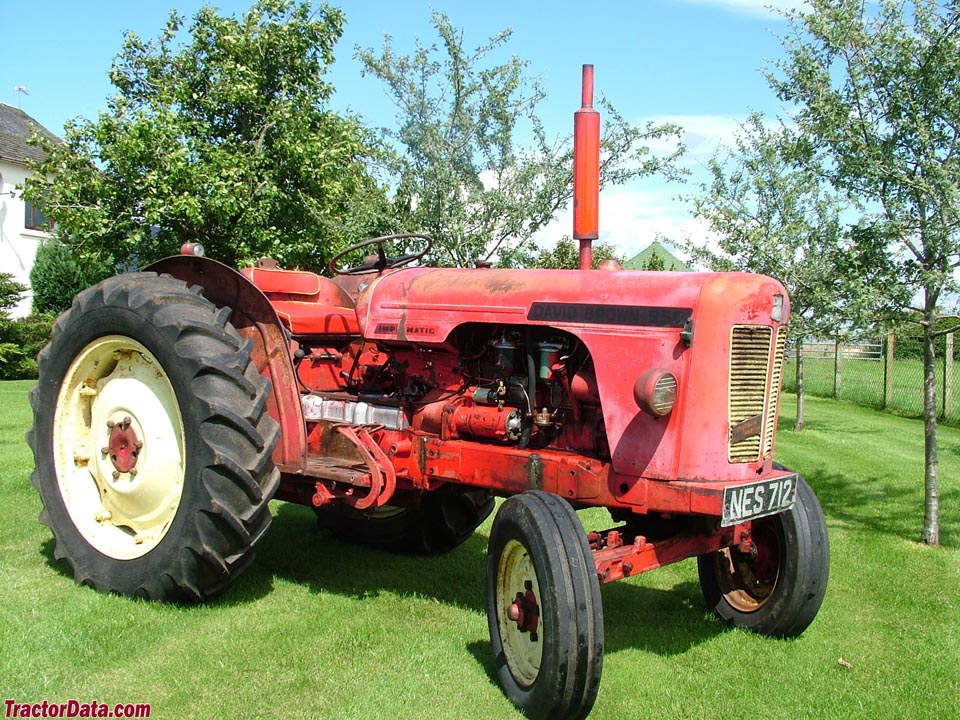

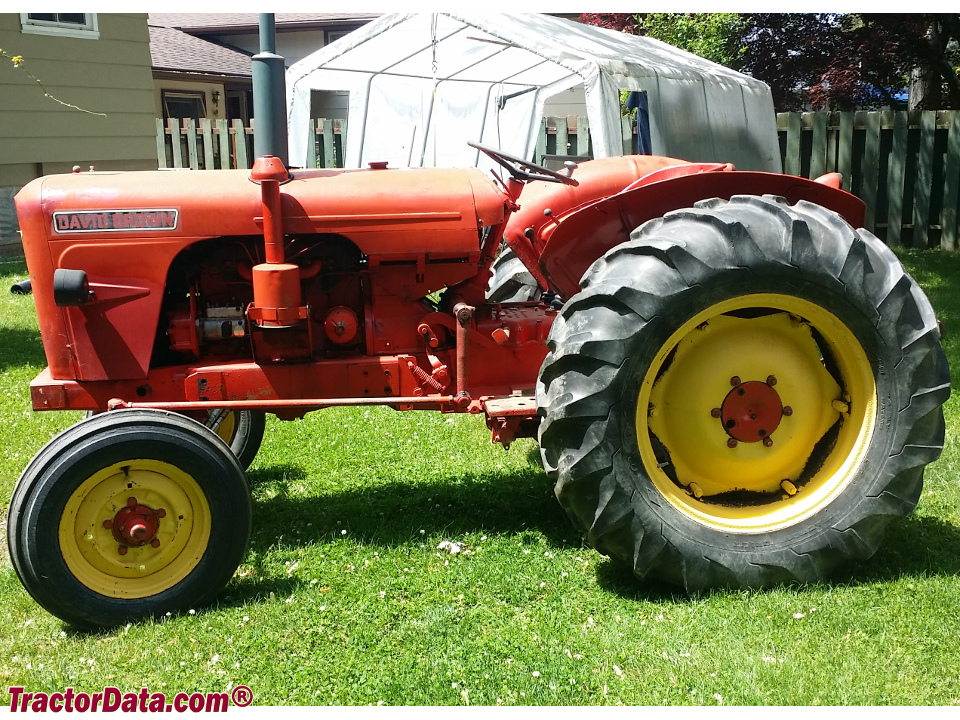

David Brown 950
David Brown 950 · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
1918 kg
Hover a source tag to verify
Overview
ManufacturerDavid BrownReference
Two-wheel driveReference
Final drivesspur gearReference
SteeringmanualReference
SteeringpowerReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
David Brown 2.7L 4-cyl dieselReference
Fuel tank52.0 LReference
Engine31.7 kWReference
Drawbar (claimed)23.9 kWReference
David BrownReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke92 x 102 mmReference
Power31.7 kWReference
Compression17:1Reference
Rated RPM2200Reference
Idle RPM700-2200Reference
Starter volts12Reference
Oil capacity7.4 LReference
Coolant capacity13.6 LReference
Transmission
6-speedReference
TransmissionTwin-RangeReference
Gears6 forward and 2 reverseReference
Clutch254mm dry discReference
PTO & Hydraulics
Pressure137.9 barReference
Pump flow28.4 lpmReference
Rear TypeII/IReference
ControlImplematic draft and depth control (1959 on)Reference
Rear lift (at ends)816 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1800Reference
Dimensions
Wheelbase194 cmReference
Weight1918 kgReference
Front tire6.00-16Reference
Rear tire11-32Reference
Ag front6.00-16Reference
Ag rear11-32Reference
Ag rear13-28Reference
Length299 cmReference
Width162 cmReference
Height199 cmReference
Front tread132/142/152/162/172/182/193 cmReference
Rear tread132/142/152/162/172/182/193 cmReference
Speeds
With 11-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
