Tractor · 1971Unverified

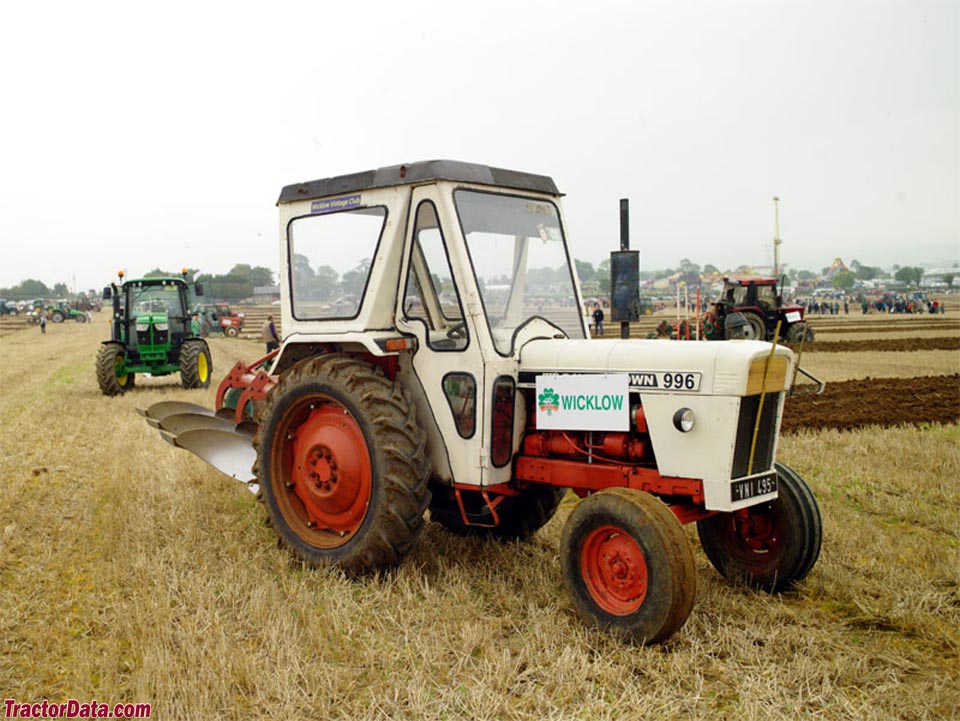

David Brown 996
David Brown 996 — Utility tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
2385 kg
Hover a source tag to verify
Overview
ManufacturerDavid BrownReference
Utility tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
Original price was $10,500 in 1976Reference
Two-wheel driveReference
Final drivesspur gearReference
Power steeringReference
Hydraulic drum brakesReference
Open operator station. Quiet Cab optional.Reference
Variants
995live PTO foot clutchReference
996independent PTO hand clutchReference
Engine
David Brown 3.6L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine (gross)46.2 kWReference
David BrownReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 114 mmReference
Power (gross)46.2 kWReference
Compression17:1Reference
Rated RPM2200Reference
Operating RPM700-2200Reference
Coolant capacity13.2 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutch280mm dry discReference
Three gears, plus reverse, in four ranges. Synchronized up-shifts from 1-to-2 and 2-to-3. Synchronized down-shift from 3-to-2.Reference
PTO & Hydraulics
PTO (claimed)43.3 kWReference
Typeopen centerReference
Pump flow27.6 lpmReference
Rear TypeII/IReference
Rear lift1632 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1800Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase208 cmReference
Weight2385 kgReference
Front tire7.50-16Reference
Rear tire13.6/12-36Reference
Ag front7.50-16Reference
Ag rear13.6/12-36Reference
Ag front6.00-19Reference
Ag rear12.4/11-36Reference
Ag rear16.4/14-30Reference
Length327 cmReference
Width170 cmReference
Height (cab)241 cmReference
Cab Operating weight2385 kgReference
Clearance (front axle)53 cmReference
Clearance (drawbar)40 cmReference
Rear tread132 to 193 cmReference
996 Serial Numbers
Location:On front frame, right side.Reference
1971920001Reference
1972921383Reference
1973925158Reference
1974928575Reference
1975931772Reference
197611070001Reference
197711080236Reference
197811089141Reference
197911096828Reference
198011104577Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH96Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
