Tractor · 1987Unverified

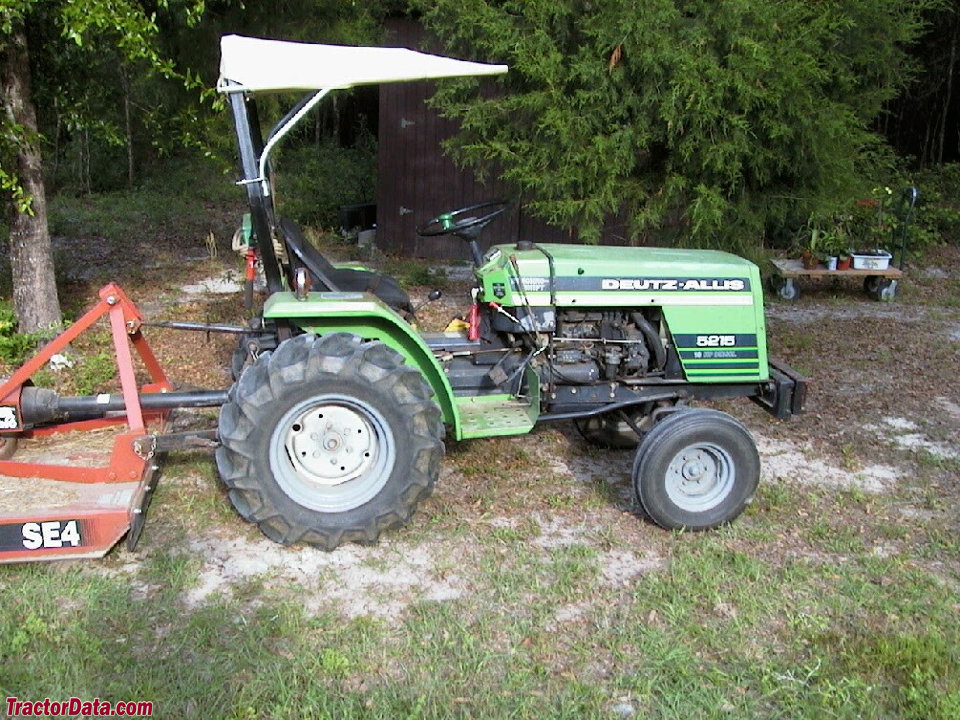

Deutz-Allis 5215
Deutz-Allis 5215 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1518 to 1727 pounds
Hover a source tag to verify
Overview
DistributorDeutz-AllisReference
ManufacturerHinomotoReference
Compact Utility tractorReference
Original price was $8,000 in 1989Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Differential mechanical drum brakesReference
Two-post fixed ROPS. Optional canopy and soft cab.Reference
Variants
5215Hhydrostatic transmissionReference
Engine
Toyosha 1.0L 3-cyl dieselReference
Engine (gross)13.4 kWReference
ToyoshaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 80 mmReference
Power (gross)13.4 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
Idle RPM750-2700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.6 LReference
Coolant capacity3.5 LReference
Transmission
9-speed synchromeshReference
hydrostaticReference
TypesynchromeshReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity17.0 LReference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
Hydraulic system17.0 LReference
Capacity17.0 LReference
Valves0 to 2Reference
Pump flow13.5 lpmReference
Rear TypeIReference
Rear lift (at ends)548 kgReference
Rear PTOtransmission (gear)Reference
Rear PTOindependent (hydro)Reference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2114Reference
Capacities
Fuel14.0 LReference
Dimensions
Wheelbase140 cmReference
Weight1518 to 1727 poundsReference
Front tire5.00-10Reference
2WD Rear tire9.5-16Reference
2WD Standard tires (ag)Front: 5.00-10. Rear: 9.5-16Reference
4WD Standard tires (ag)Front: 6.00-12. Rear: 9.5-16Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length273 cmReference
Width113 cmReference
Weight688 kgReference
Weight783 kgReference
2WD Clearance (front axle)32 cmReference
4WD Clearance (front axle)26 cmReference
2WD Clearance (rear axle)24 cmReference
4WD Clearance (rear axle)24 cmReference
2WD Steering wheel125 cmReference
4WD Steering wheel127 cmReference
Deutz-Allis 5215 attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
60" Mower deck
Typemid-mount Deutz-AllisReference
Type3-bladeReference
Cutting width152 cmReference
Deutz-Allis 5215 Height
2WD ROPS185 cmReference
4WD ROPS184 cmReference
Speeds
With 9.5-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
