Tractor · 1986Unverified

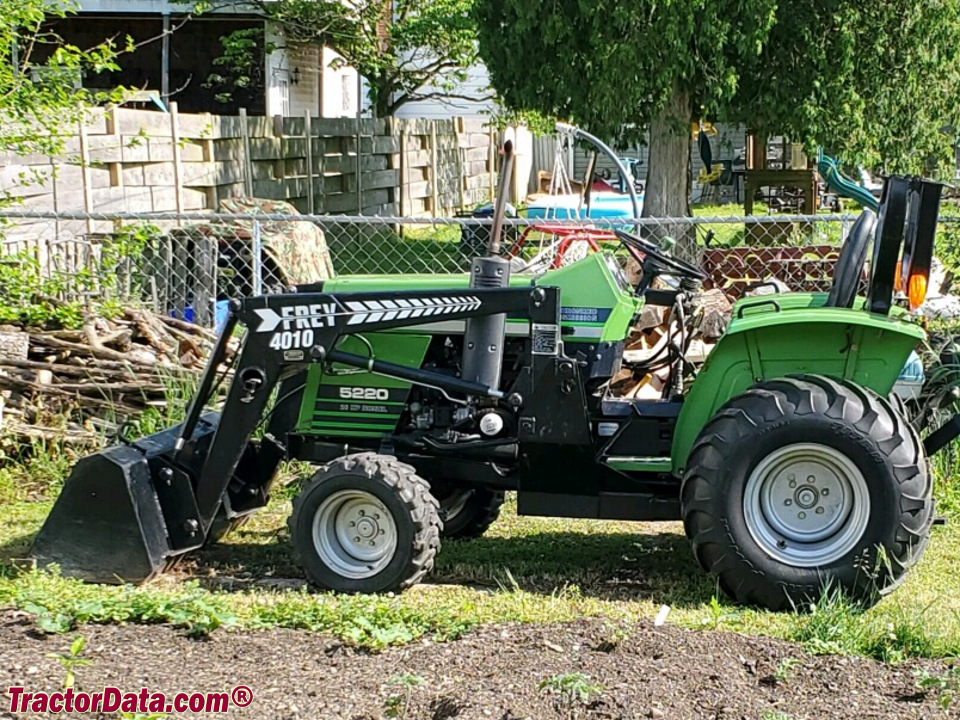

Deutz-Allis 5220
Deutz-Allis 5220 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
2222 to 2398 pounds
Hover a source tag to verify
Overview
DistributorDeutz-AllisReference
ManufacturerHinomotoReference
Compact Utility tractorReference
Original price was $10,000 in 1989Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Differential wet disc brakesReference
Two-post fixed ROPS with optional canopy. Cab optional.Reference
Variants
E2302similar Hinomoto modelReference
E2304similar Hinomoto modelReference
Engine
Toyosha 1.4L 3-cyl dieselReference
Engine (gross)19.4 kWReference
ToyoshaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 90 mmReference
Power (gross)19.4 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
Idle RPM750-2700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.5 LReference
Coolant capacity4.0 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Oil capacity25.0 LReference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
Hydraulic system25.0 LReference
Typeopen centerReference
Capacity25.0 LReference
Valves0 to 2Reference
Pump flow17.4 lpmReference
Steering cap.0.9 LReference
Rear TypeIReference
Rear lift (at ends)888 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Capacities
Fuel26.9 LReference
Steering0.9 LReference
Dimensions
2WD Wheelbase160 cmReference
4WD Wheelbase159 cmReference
Weight2222 to 2398 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-14Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-14Reference
4WD Standard tires (ag)Front: 6.00-14. Rear: 11.2-24Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear13.6-16Reference
2WD Length283 cmReference
4WD Length283 cmReference
2WD Width126 cmReference
4WD Width128 cmReference
2WD Weight1007 kgReference
4WD Weight1087 kgReference
2WD Clearance (front axle)40 cmReference
4WD Clearance (front axle)29 cmReference
Clearance (rear axle)35 cmReference
2WD Steering wheel149 cmReference
4WD Steering wheel146 cmReference
Deutz-Allis 5220 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
72" Mower deck
Typemid-mount Deutz-AllisReference
Type3-bladeReference
Cutting width182 cmReference
Deutz-Allis 5220 Height
ROPS217 cmReference
Speeds
With 11.2-24 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
