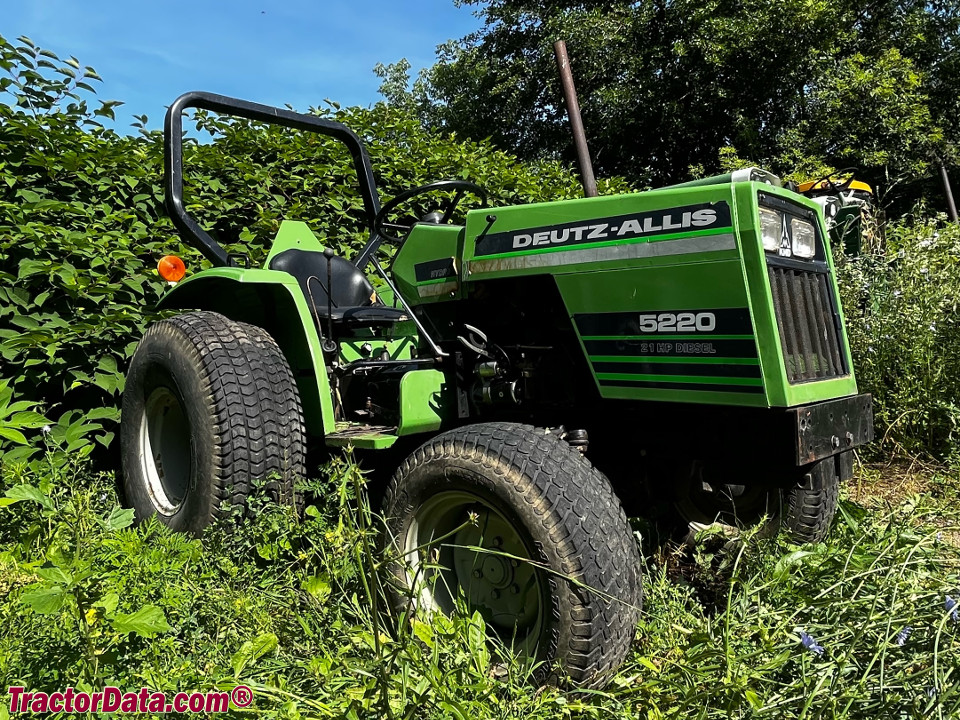

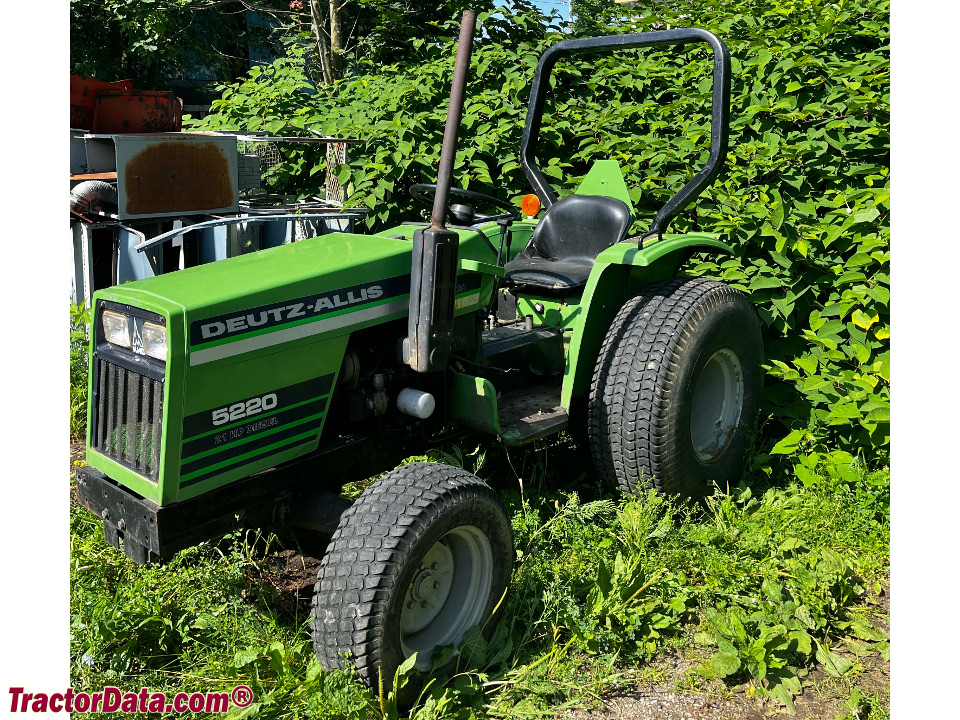

Deutz-Allis 5220 HST
Deutz-Allis 5220 HST — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1969 to 2189 pounds
Hover a source tag to verify
Overview
DistributorDeutz-AllisReference
ManufacturerHinomotoReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Differential mechanical drum brakesReference
Two-post fixed ROPS with optional canopy. Cab optional.Reference
Engine
Toyosha 1.4L 3-cyl dieselReference
Engine (gross)15.7 kWReference
ToyoshaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke80 x 90 mmReference
Power (gross)15.7 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
Idle RPM850-2700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.5 LReference
Coolant capacity4.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity26.1 LReference
PTO & Hydraulics
PTO (claimed)12.7 kWReference
Hydraulic system26.1 LReference
Typeopen centerReference
Capacity26.1 LReference
Valves0 to 2Reference
Pump flow18.0 lpmReference
Rear TypeIReference
Rear lift (at ends)768 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2227Reference
Capacities
Fuel22.0 LReference
Dimensions
Wheelbase150 cmReference
Weight1969 to 2189 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 7.00-14. Rear: 9.5-14Reference
2WD Lawn/turf front24x8.50-12Reference
4WD Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length289 cmReference
Width119 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)199 cmReference
2WD Weight893 kgReference
4WD Weight992 kgReference
2WD Clearance (front axle)37 cmReference
4WD Clearance (front axle)30 cmReference
Deutz-Allis 5220 HST attachments
61" mid-mount mower deckReference
bladeReference
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
61" mid-mount mower deckReference
BladeReference
Front-end loaderReference
61" Mower deck
Typemid-mount Deutz-AllisReference
Type3-bladeReference
Cutting width154 cmReference
Speeds
With 13.6-16 R3 tires.Reference
