Tractor · 1986Unverified

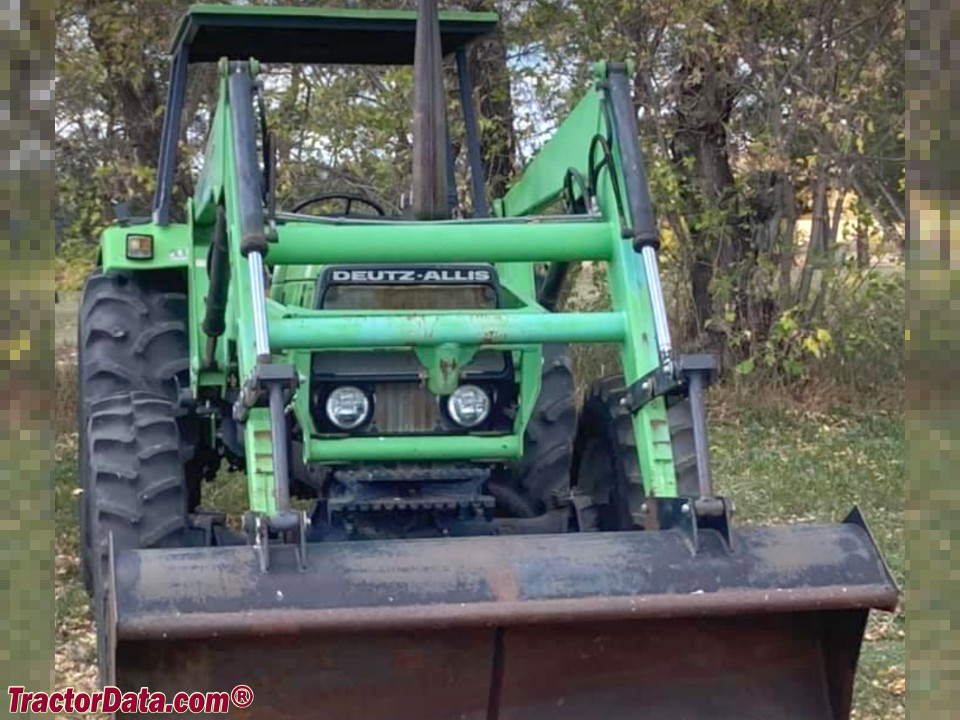

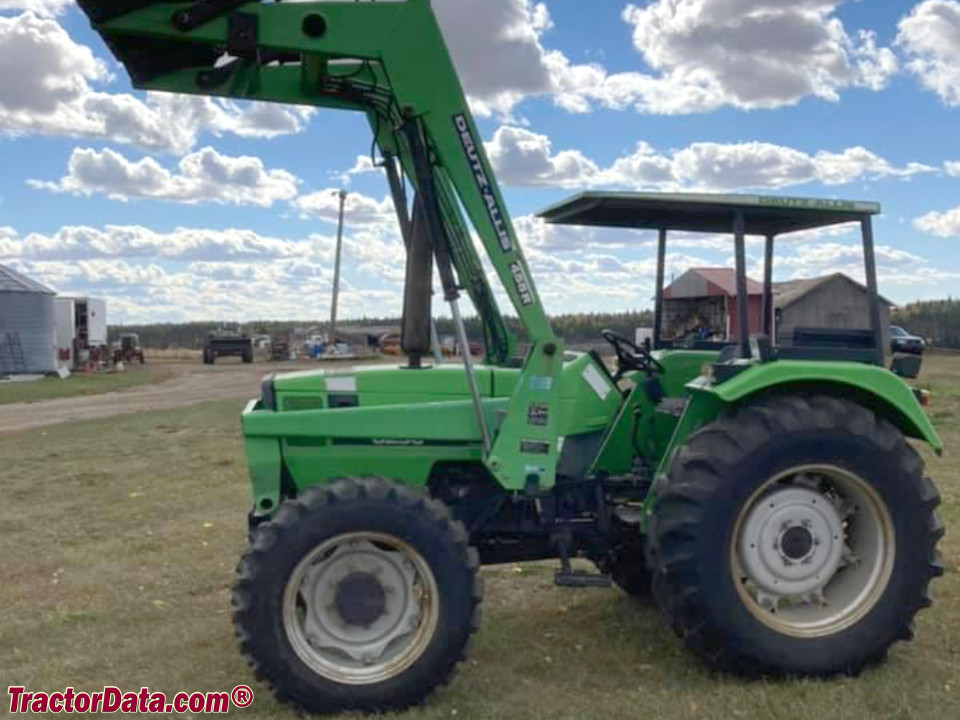

Deutz-Allis 6250
Deutz-Allis 6250 — Utility tractor · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
6018 to 6459 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Utility tractorReference
Built in GermanyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical disc brakesReference
Four-post ROPSReference
Variants
6250utilityReference
6250VnarrowReference
DX 3.30similar Deutz-Fahr modelReference
Engine
Deutz 2.8L 3-cyl dieselReference
Engine40.3 kWReference
Deutz F3L 912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power40.3 kWReference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity8.0 LReference
Transmission
8-speed partially synchronizedReference
16-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four synchronized gears (1-4) in two ranges, plus reverse range.Reference
TransmissionDual-SplitReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)38.0 kWReference
Hydraulic system15.1 LReference
Hydraulic system28.4 LReference
Typeopen centerReference
Capacity15.1 LReference
Capacity28.4 LReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow20026.4 lpmReference
Rear TypeIReference
Rear lift (at ends)2399 kgReference
Front HitchIIReference
Front lift1000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Capacities
Fuel75.7 LReference
Dimensions
2WD Wheelbase200 cmReference
4WD Wheelbase208 cmReference
Weight6018 to 6459 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9-24Reference
Width209 cmReference
Height (ROPS)231 cmReference
2WD Weight2729 kgReference
4WD Weight2929 kgReference
Rear tread149 to 200 cmReference
Deutz-Allis 6250 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
