Tractor · 1986Unverified

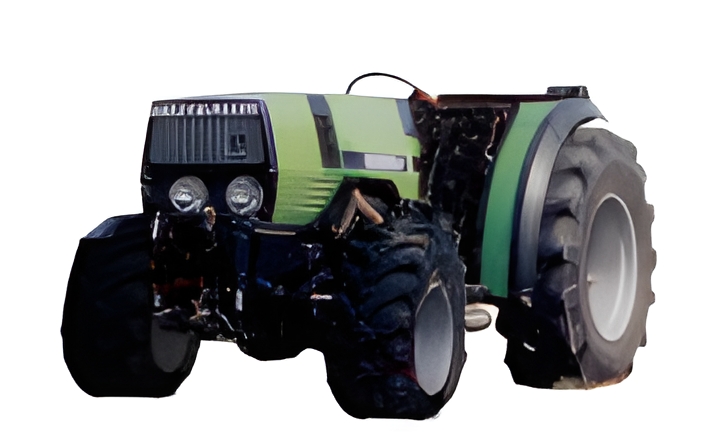

Deutz-Allis 6250V
Deutz-Allis 6250V — Orchard/Vineyard tractor · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
4519 to 4850 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic drum brakesReference
Two-post mid-mount folding ROPS.Reference
Variants
6250utilityReference
6250VnarrowReference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank54.9 LReference
Deutz F3L912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Pre-heatingglow plugReference
Compression17:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
12-speed creeperReference
16-speedReference
24-speedReference
Gears8 forward and 4 reverseReference
Clutch279mm dry discReference
TypecreeperReference
Gears12 forward and 4 reverseReference
TransmissionHi-LoReference
Gears16 forward and 8 reverseReference
TransmissionHi-Lo CreeperReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)38.0 kWReference
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 4Reference
Pump flow51.9 lpmReference
Rear TypeIReference
Rear lift (at ends)2199 kgReference
Front lift1419 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase191 cmReference
Weight4519 to 4850 poundsReference
Front tire7.50x16Reference
Rear tire13.6x24Reference
Standard tires (ag)Front: 7.50x16. Rear: 13.6x24Reference
Width121 cmReference
Height (steering wheel)123 cmReference
Height (ROPS)195 cmReference
2WD Weight2049 kgReference
4WD Weight2199 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
