Tractor · 1986Unverified
Deutz-Allis 6260
Deutz-Allis 6260 — Utility tractor · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Max power
37.4 kW
Weight
6018 to 7319 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Utility tractorReference
Built in GermanyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
ROPS Brakesmechanical discReference
Cab Brakeshydraulic discReference
Four-post ROPS. StarCab optional.Reference
Variants
6260utilityReference

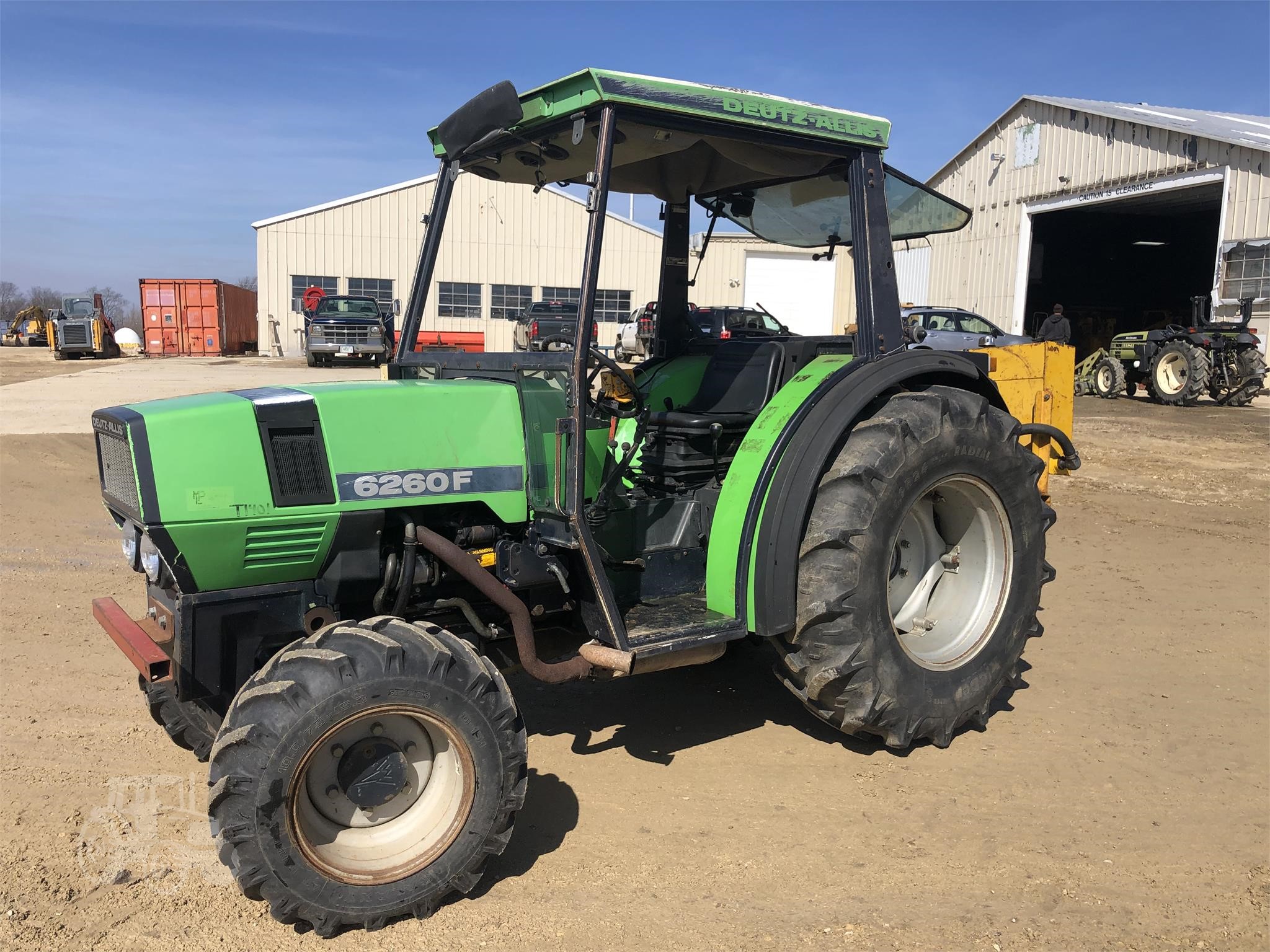

6260FnarrowReference
6260Llow-profileReference
DX 3.50similar Deutz-Fahr modelReference
Engine
Deutz 3.1L 3-cyl dieselReference
Engine45.5 kWReference
Drawbar (tested)37.4 kWReference
Deutz F3L 913Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.1 LReference
Bore/Stroke102 x 125 mmReference
Power45.5 kWReference
Compression17:1Reference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity8.0 LReference
Power at rated engine speed42.6 kWReference
Max power37.4 kWReference
Transmission
8-speed partially synchronizedReference
16-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four synchronized gears (1-4) in two ranges, plus reverse range.Reference
TransmissionDual-SplitReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
PTO (tested)42.6 kWReference
Hydraulic system15.1 LReference
Hydraulic system28.4 LReference
Typeopen centerReference
Capacity15.1 LReference
Capacity28.4 LReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow20026.4 lpmReference
Rear TypeIIReference
Rear lift (at ends)2399 kgReference
Front HitchIIReference
Front lift1000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed41.3 kWReference
Capacities
ROPS Fuel75.7 LReference
Cab Fuel45.4 LReference
Dimensions
2WD Wheelbase200 cmReference
4WD Wheelbase208 cmReference
Weight6018 to 7319 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9-24Reference
Width209 cmReference
Height (ROPS)231 cmReference
Height (cab)247 cmReference
Rear tread149 to 200 cmReference
2WD ROPS2729 kgReference
4WD ROPS2929 kgReference
2WD Cab3119 kgReference
4WD Cab3319 kgReference
Deutz-Allis 6260 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 8-speed 4WDSeptember 11 - 25, 1985Link: Nebraska Tractor Test 1574 fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use13.6 l/hourReference
Drawbar performanceReference
Fuel use14.8 l/hourReference
Gear 1H used for power test.Reference
Max pull3297 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
