Tractor · 1986Unverified

Deutz-Allis 6260L

Name: Deutz-Allis 6260L
Brand: Deutz-Allis

Deutz-Allis 6260L — Orchard/Vineyard tractor · 57 hp. Reference specifications; pending source verification.

The Deutz-Allis 6260L is a tractor model with a rated power of 57 hp, situated at the lighter end of its class. It was manufactured between 1986 and 1990. The tractor is equipped with a 3-cylinder diesel air-cooled engine and a four-wheel drive system, paired with an 8-speed gearbox. Its operating weight ranges from 4740 to 5059 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Weight

4740 to 5059 pounds

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

57 hp

Recorded weight

2150 kg

Transmissions

8-speed

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerDeutz-AllisReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic drum brakesReference

Two-post mid-mount folding ROPS. Cab optional.Reference

Variants

6260utilityReference

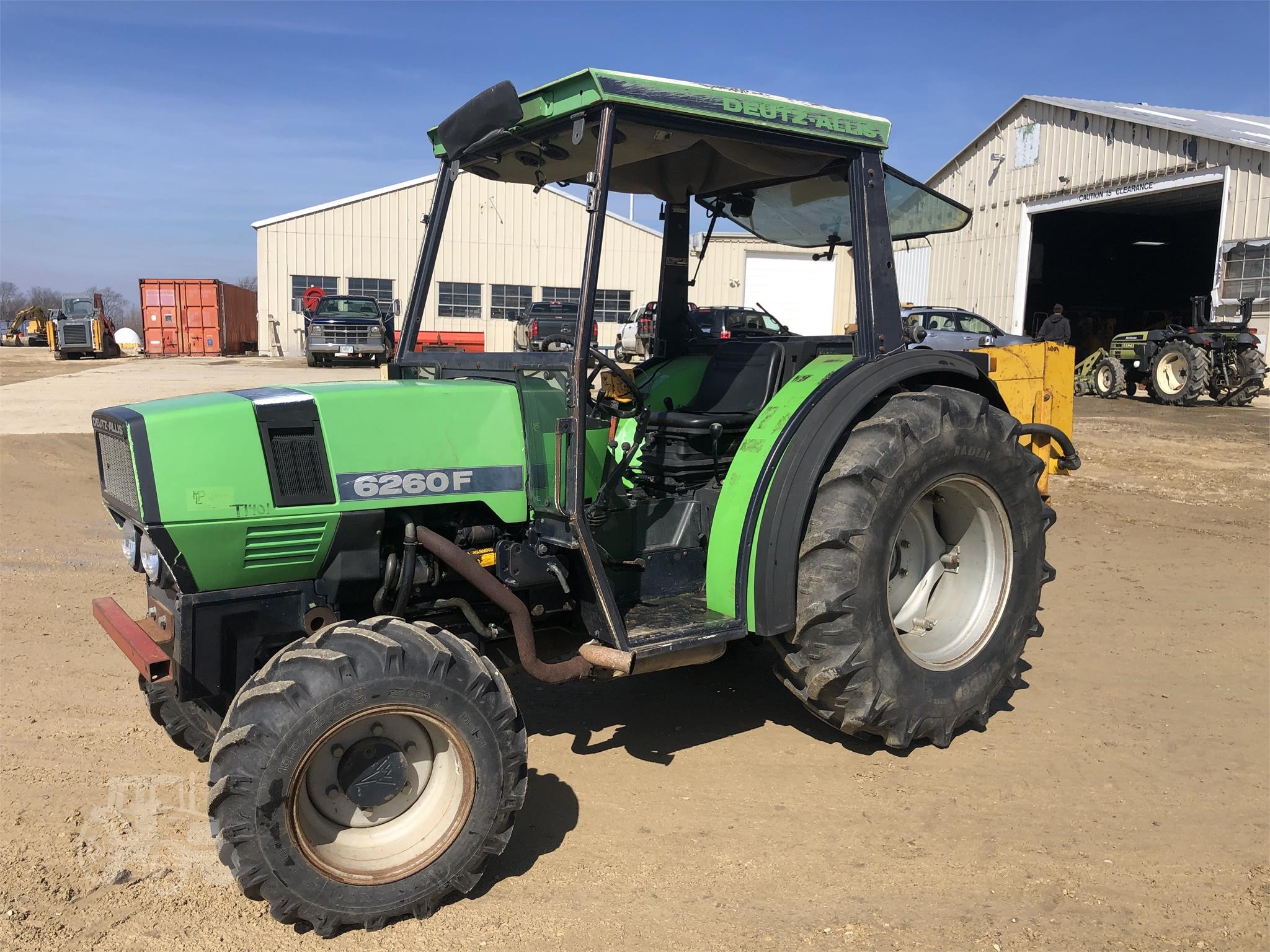

6260FnarrowReference

6260Llow-profileReference

Engine

Deutz 3.1L 3-cyl dieselReference

Fuel tank67.0 LReference

Deutz F3L913Reference

dieselReference

3-cylinderReference

air-cooledReference

Displacement3.1 LReference

Bore/Stroke102 x 125 mmReference

Pre-heatingglow plugReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speedReference

12-speed creeperReference

16-speedReference

24-speedReference

Gears8 forward and 4 reverseReference

Clutch279mm dry discReference

TypecreeperReference

Gears12 forward and 4 reverseReference

TransmissionHi-LoReference

Gears16 forward and 8 reverseReference

TransmissionHi-Lo CreeperReference

Gears24 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)42.5 kWReference

Typeopen centerReference

Pressure175.0 barReference

Valves1 to 4Reference

Pump flow51.9 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2199 kgReference

Front lift1419 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase191 cmReference

Weight4740 to 5059 poundsReference

Front tire7.50x16Reference

2WD Rear tire14.9x28Reference

2WD Standard tires (ag)Front: 7.50x16. Rear: 14.9x28Reference

4WD Standard tires (ag)Front: 7.50x18. Rear: 14.9x28Reference

Width152 cmReference

2WD Weight2150 kgReference

4WD Weight2294 kgReference

Steering wheel132 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Battery AH110Reference

Deutz-Allis 6260L Height

ROPS203 cmReference

Cab215 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
