Tractor · 1986Unverified

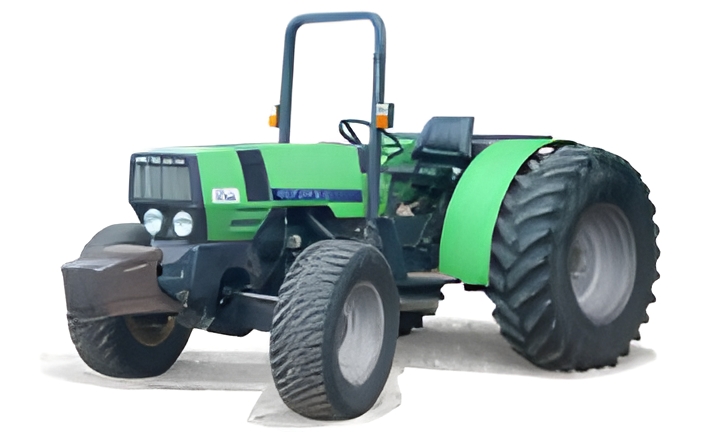

Deutz-Allis 6275L
Deutz-Allis 6275L — Orchard/Vineyard tractor · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
5070 to 5831 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Two-post mid-mount folding ROPS. Cab optional.Reference
Variants
6275utilityReference
6275FnarrowReference
6275Llow-profileReference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank67.0 LReference
Deutz F4L913Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke100 x 123 mmReference
Pre-heatingthermo startReference
Rated RPM2350Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
12-speed creeperReference
16-speedReference
24-speedReference
Gears8 forward and 4 reverseReference
Clutch279mm dry discReference
TypecreeperReference
Gears12 forward and 4 reverseReference
TransmissionHi-LoReference
Gears16 forward and 8 reverseReference
TransmissionHi-Lo CreeperReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)52.9 kWReference
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 4Reference
Pump flow70.0 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2199 kgReference
Front lift1419 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase204 cmReference
Weight5070 to 5831 poundsReference
Front tire7.50x16Reference
2WD Rear tire14.9x28Reference
2WD Standard tires (ag)Front: 7.50x16. Rear: 14.9x28Reference
4WD Standard tires (ag)Front: 7.50x18. Rear: 14.9x28Reference
Width152 cmReference
2WD Weight2299 kgReference
4WD Weight2644 kgReference
Steering wheel132 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH110Reference
Deutz-Allis 6275L Height
ROPS204 cmReference
Cab215 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
