Tractor · 1986Unverified

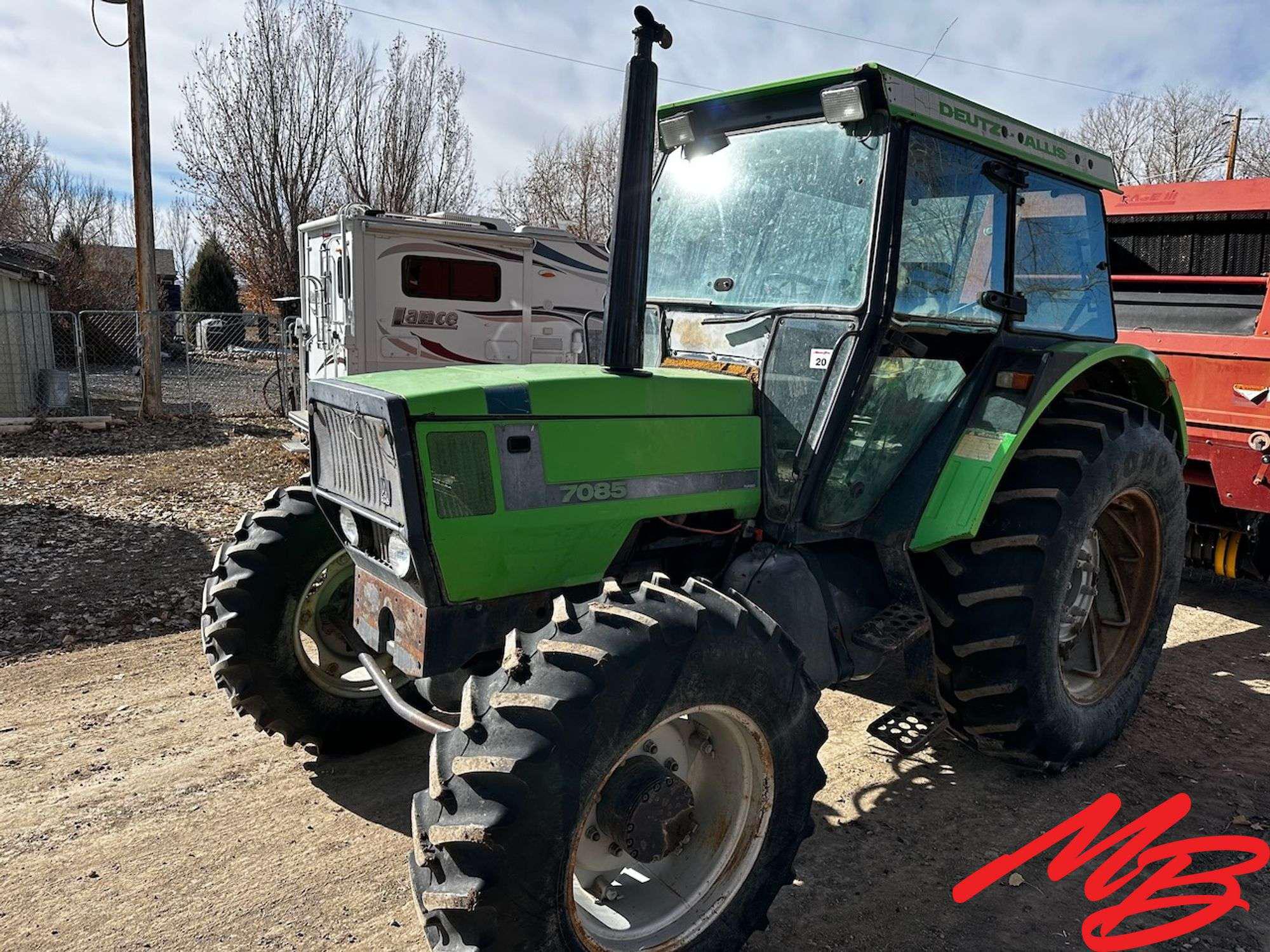

Deutz-Allis 7085
Deutz-Allis 7085 — Row-Crop tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Max power
54.6 kW
Weight
8466 to 9900 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockfoot-operated rearReference
Differential lockOPTICTRAC automatic frontReference
Power steeringReference
Differential hydraulic dry disc brakesReference
Detuz-Allis MasterCab standard with heat and air-conditioning. Agrotronic instrumentation standard, optional Agrotronic II.Reference
Variants
DX 4.70similar Deutz-Fahr modelReference
Engine
Deutz 4.1L 4-cyl dieselReference
Drawbar (tested)54.6 kWReference
Deutz BF4L913Reference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke102 x 125 mmReference
Fuel use19.5 l/hourReference
Air cleanerpaper and felt elementsReference
Compression15.5:1Reference
Rated RPM2300Reference
Starter volts12Reference
Starter power2.7 kWReference
Oil capacity11.4 LReference
Power at rated engine speed63.5 kWReference
Max power54.6 kWReference
Transmission
15-speed fully synchronizedReference
20-speedReference
Typefully synchronizedReference
Gears15 forward and 5 reverseReference
Oil capacity37.1 LReference
Five speeds in three ranges.Reference
Gears20 forward and 5 reverseReference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)63.5 kWReference
Hydraulic system37.1 LReference
Typeopen centerReference
Capacity37.1 LReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow46.9 lpmReference
Total flow64.0 lpmReference
Steering flow26.9 lpmReference
Rear TypeIIReference
Rear lift3799 kgReference
Front HitchIIReference
Front lift1799 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed62.9 kWReference
Capacities
Fuel117.3 LReference
Dimensions
2WD Wheelbase233 cmReference
4WD Wheelbase240 cmReference
Weight8466 to 9900 poundsReference
Front tire10.00-16Reference
Rear tire18.4-34Reference
Ag front10.00-16 (2WD)Reference
Ag front13.6-24 (4WD)Reference
Ag rear18.4-34Reference
Ag front7.5-20 (2WD)Reference
Ag front11.00-16 (2WD)Reference
Ag front13.6-28 (4WD)Reference
Ag front18.4-38 (4WD)Reference
Ag front23.1-26 (4WD)Reference
Ag front11.2-34 (HC)Reference
Ag rear14.9-24 (2WD)Reference
Ag rear18.4-38 (4WD)Reference
Ag rear16.9-38Reference
Ag rear13.6-46 (HC)Reference
Lawn/turf front23.1x26 (4WD)Reference
Length417 cmReference
Width229 cmReference
2WD Height264 cmReference
4WD Height271 cmReference
2WD Shipping3840 kgReference
4WD Shipping4169 kgReference
Operating4490 kgReference
Ballasted6196 kgReference
7085 Serial Numbers
1986743 43030 (2WD ROPS)Reference
1987743 43242 (2WD ROPS)Reference
1988743 43459 (2WD ROPS)Reference
1989743 46199 (2WD ROPS)Reference
1990743 46464 (2WD ROPS)Reference
1986743 53065 (4WD ROPS)Reference
1987743 53826 (4WD ROPS)Reference
1988743 54784 (4WD ROPS)Reference
1989743 56577 (4WD ROPS)Reference
1990743 47417 (4WD ROPS)Reference
1986743 43006 (2WD Cab)Reference
1987743 43225 (2WD Cab)Reference
1988--------- (2WD Cab)Reference
1989--------- (2WD Cab)Reference
1990743 46464 (2WD Cab)Reference
1986743 53031 (4WD Cab)Reference
1987743 53815 (4WD Cab)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts14Reference
Battery volts12Reference
Test results
Diesel 15-speed 4WDSeptember 10 - 19, 1985Link: Nebraska Tractor Test 1575 fileReference
PTO performanceReference
Fuel use19.7 l/hourReference
Fuel use18.9 l/hourReference
Drawbar performanceReference
Fuel use19.3 l/hourReference
Gear 3M used for power test.Reference
Max pull4763 kgReference
Gear 3L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
