Tractor · 1986Unverified

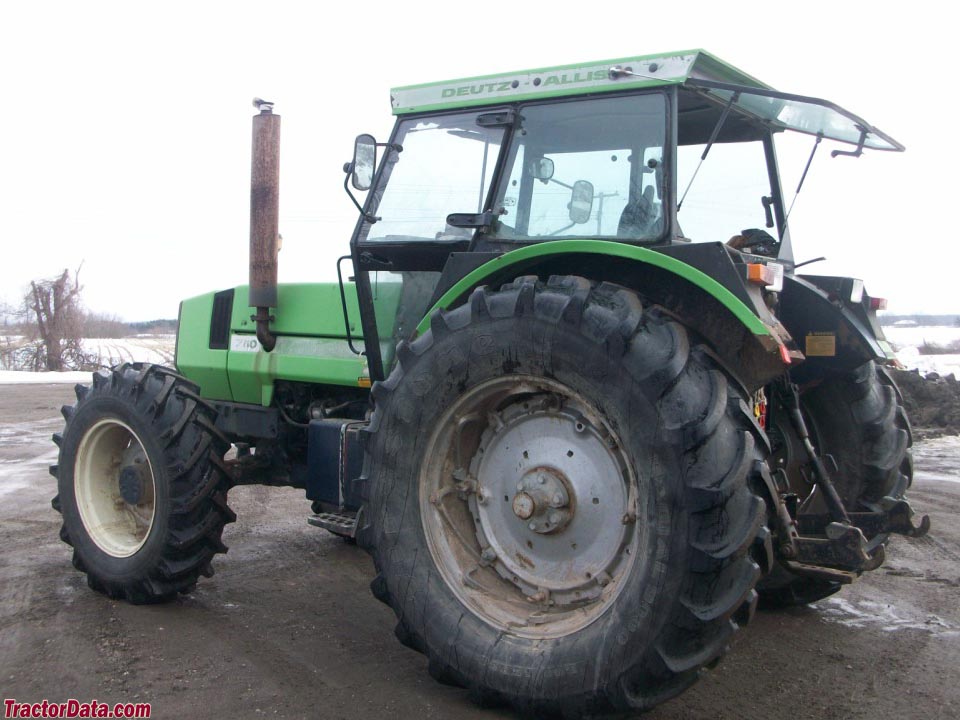

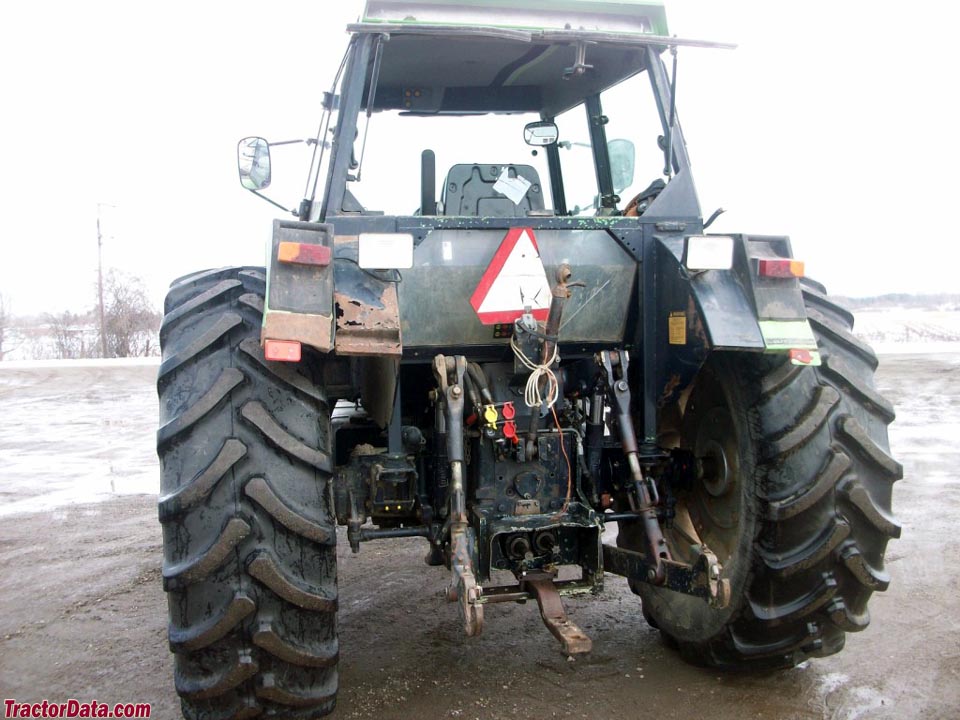

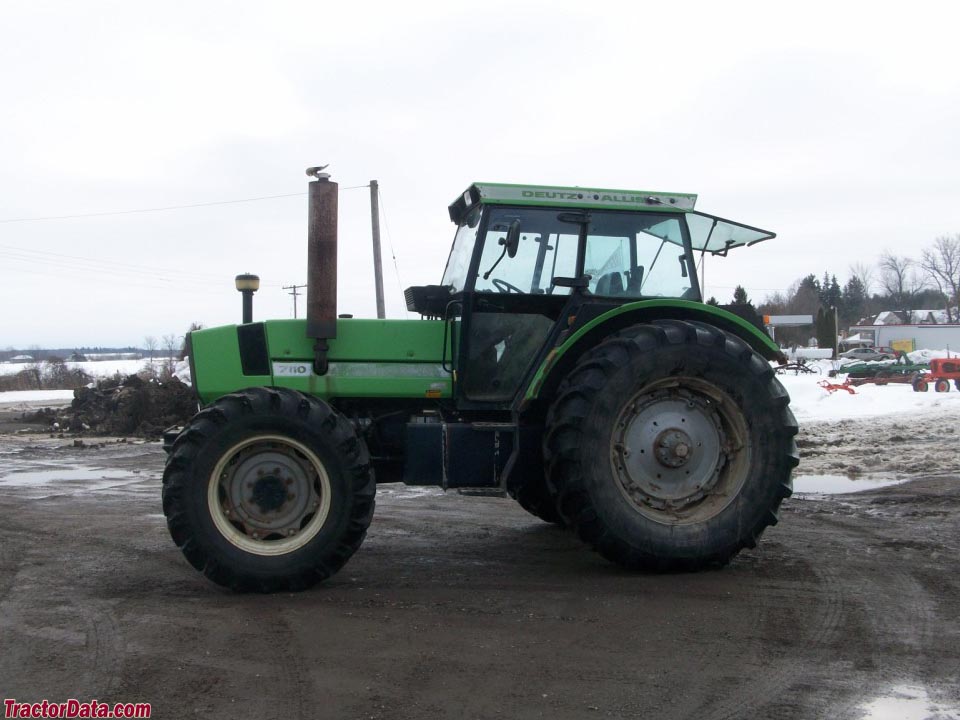

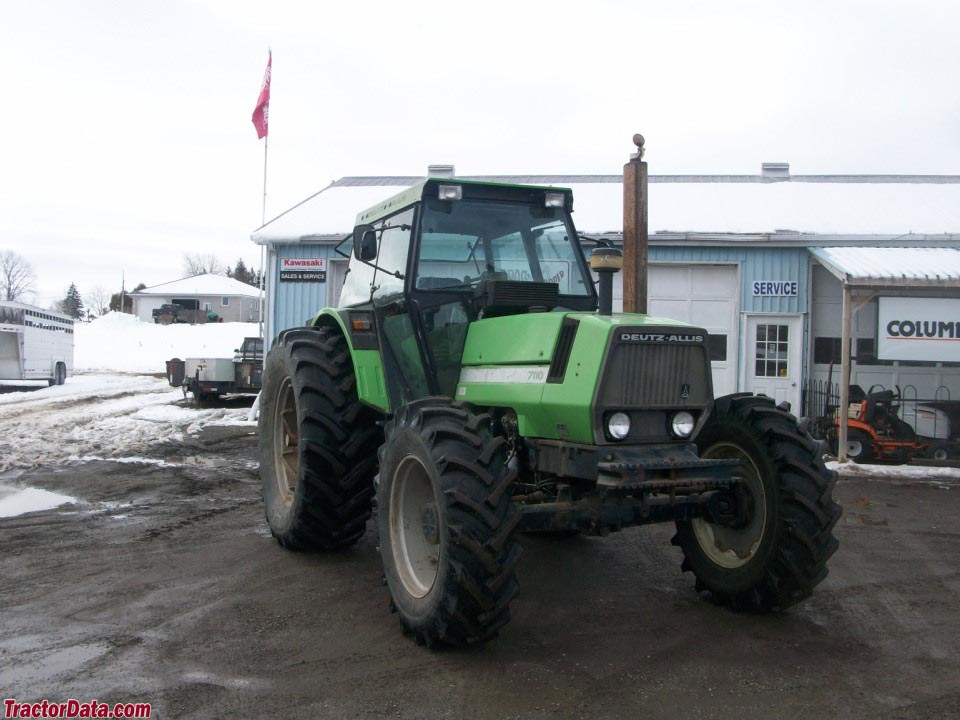

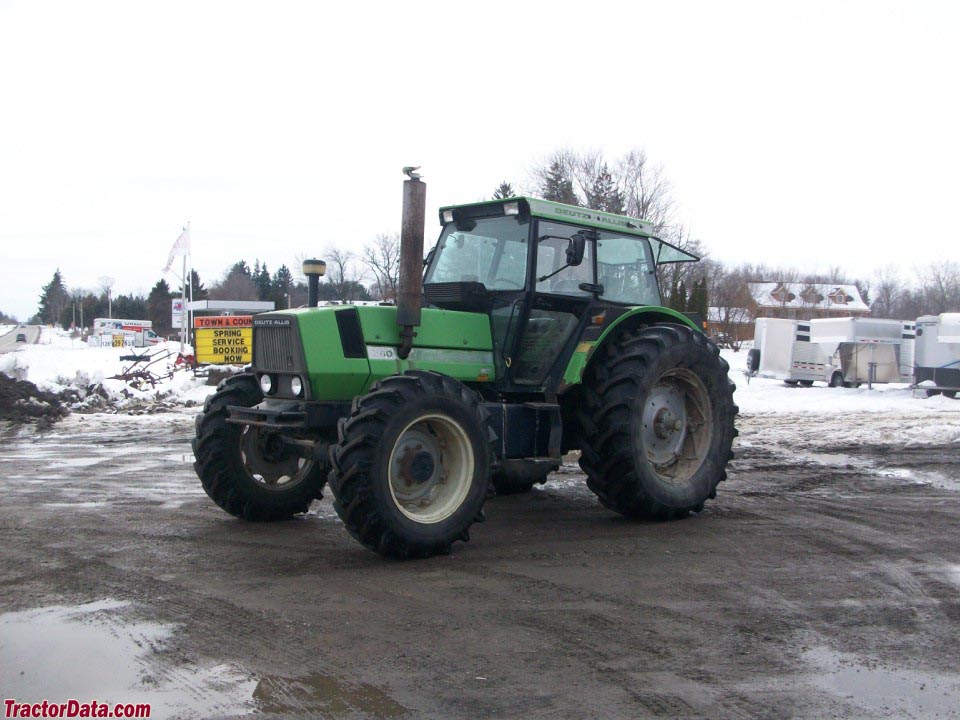

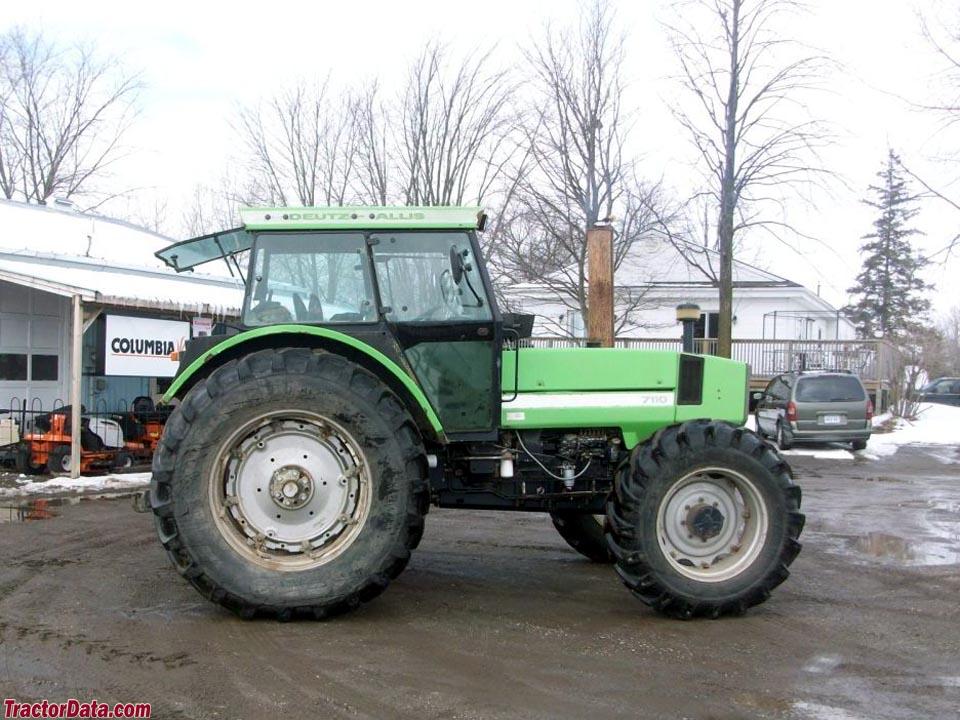

Deutz-Allis 7110
Deutz-Allis 7110 — Row-Crop tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
9700 to 10670 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockfoot-operated rearReference
Differential lockOPTICTRAC automatic frontReference
Steeringhydrostatic powerReference
Hydraulic dry disc brakesReference
Detuz-Allis MasterCab standard with heat and air-conditioning. Agrotronic instrumentation standard, optional Agrotronic II.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Deutz B6L913Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Rated RPM2400Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity15.1 LReference
Transmission
15-speed fully synchronizedReference
20-speedReference
Typefully synchronizedReference
Gears15 forward and 5 reverseReference
Oil capacity49.2 LReference
Five speeds in three ranges.Reference
Gears20 forward and 5 reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity37.9 LReference
Pressure175.0 barReference
Valves1 to 3Reference
Total flow90.8 lpmReference
Rear TypeIIReference
Rear lift5200 kgReference
Front HitchIIReference
Front lift2899 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Capacities
Fuel117.3 LReference
Fuel219.5 LReference
Dimensions
2WD Wheelbase268 cmReference
4WD Wheelbase270 cmReference
Weight9700 to 10670 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16 (2WD)Reference
Ag front14.9-28 (4WD)Reference
Ag rear18.4-38Reference
Ag rear16.9-38 (2WD)Reference
2WD Length449 cmReference
4WD Length454 cmReference
Width229 cmReference
Shipping4399 kgReference
Shipping4839 kgReference
Max Drawbar1349 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts14Reference
Battery volts12Reference
Deutz-Allis 7110 Height
Cab264 cmReference
2WD Exhaust272 cmReference
4WD Exhaust284 cmReference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
