Tractor · 1986Unverified

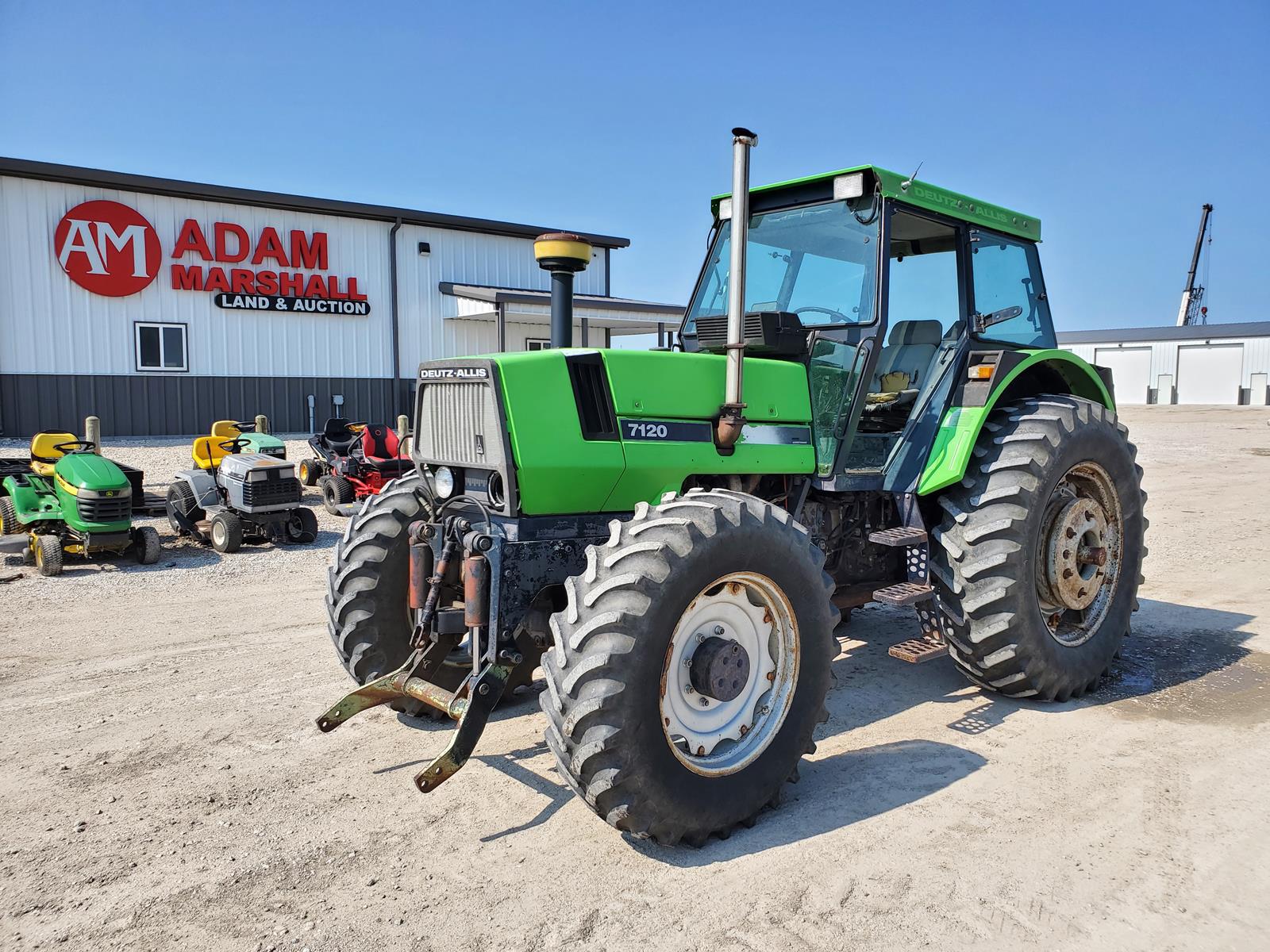

Deutz-Allis 7120
Deutz-Allis 7120 — Row-Crop tractor · 122 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
122 hp
Max power
75.6 kW
Weight
11243 to 12081 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Row-Crop tractorReference
The Deutz-Allis 7120 is similar to the Deutz-Fahr DX 6.50.Reference
Two- or four-wheel driveReference
Differential lockpush-button rearReference
Differential lockOPTICTRAC automatic frontReference
Steeringhydrostatic powerReference
Differential hydraulic dry disc brakesReference
Detuz-Allis MasterCab standard with heat and air-conditioning. Agrotronic instrumentation standard, optional Agrotronic II.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Drawbar (tested)75.6 kWReference
Deutz BF6L913Reference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Fuel use28.0 l/hourReference
Air cleanerdual paper elements with pre-cleanerReference
Compression15.5:1Reference
Rated RPM2300Reference
Starter volts12Reference
Starter power3.7 kWReference
Oil capacity16.1 LReference
Power at rated engine speed91.0 kWReference
Max power75.6 kWReference
Transmission
24-speed synchronized with partial power shiftReference
32-speedReference
TransmissionPOWERMATICReference
Typesynchronized with partial power shiftReference
Gears24 forward and 8 reverseReference
Clutchhydraulic dry discReference
Oil capacity53.0 LReference
Four speeds (1-4) in three ranges (L/M/H) with high/low power shift.Reference
Gears32 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)91.0 kWReference
PTO (tested)91.0 kWReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity37.9 LReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow56.0 lpmReference
Total flow90.8 lpmReference
Steering flow34.8 lpmReference
Rear TypeIIIReference
Rear lift6500 kgReference
Front HitchIIReference
Front lift2899 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed91.8 kWReference
Capacities
Fuel151.4 LReference
Fuel249.8 LReference
Dimensions
Wheelbase268 cmReference
Wheelbase270 cmReference
Weight11243 to 12081 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16 (2WD)Reference
Ag front14.9-28 (4WD)Reference
Ag rear18.4-38Reference
Ag front16.9x28 (4WD)Reference
Ag rear20.8x38Reference
Length449 cmReference
Length455 cmReference
Width242 cmReference
Clearance (front axle)61 cmReference
Clearance (front axle)56 cmReference
Operating5099 kgReference
Operating5479 kgReference
Ballasted7981 kgReference
Max Drawbar1349 kgReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Charging volts14Reference
Batteries2Reference
Battery volts6Reference
Deutz-Allis 7120 Height
Cab278 cmReference
Exhaust274 cmReference
Exhaust296 cmReference
Test results
Diesel 24-speed 4WDSeptember 9 - 17, 1985Link: Nebraska Tractor Test 1576 fileReference
PTO performanceReference
Fuel use28.0 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Fuel use27.6 l/hourReference
Gear 3ML used for power test.Reference
Max pull4868 kgReference
Gear 1MH used for pull test.Reference
Speeds
20.8x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
