Tractor · 1987Unverified

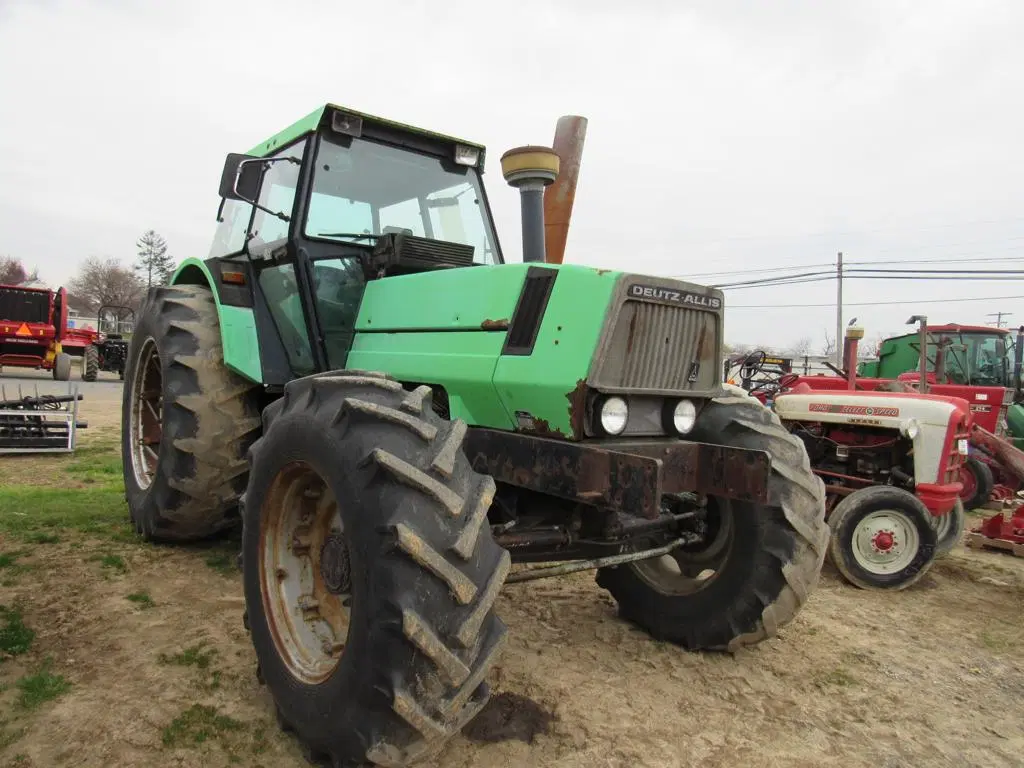

Deutz-Allis 7145
Deutz-Allis 7145 — Row-Crop tractor · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Max power
94.4 kW
Weight
11905 to 12987 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockpush-button rearReference
Differential lockOPTICTRAC automatic frontReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Detuz-Allis MasterCab standard with heat, air-conditioning, and air-suspension seat. Agrotronic instrumentation standard, optional Agrotronic II.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Drawbar (tested)94.4 kWReference
Deutz BF6L913Reference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Rated RPM2400Reference
Starter volts12Reference
Starter power3.7 kWReference
Oil capacity16.1 LReference
Power at rated engine speed107.8 kWReference
Max power94.4 kWReference
Transmission
36-speed synchronized with partial power shiftReference
TransmissionPOWERMATICReference
Typesynchronized with partial power shiftReference
Gears36 forward and 12 reverseReference
Oil capacity75.7 LReference
PTO & Hydraulics
PTO (claimed)107.4 kWReference
PTO (tested)107.8 kWReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity37.9 LReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow68.9 lpmReference
Total flow103.3 lpmReference
Steering flow36.7 lpmReference
Rear TypeIIIReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOoptionalReference
Capacities
Fuel249.8 LReference
Dimensions
Wheelbase262 cmReference
Wheelbase282 cmReference
Weight11905 to 12987 poundsReference
Front tire11.00-16Reference
Rear tire20.8-38Reference
Ag front11.00-16 (2WD)Reference
Ag front16.9x28 (4WD)Reference
Ag rear20.8-38Reference
Ag rear18.4x38 (4WD)Reference
Length470 cmReference
Length477 cmReference
Width236 cmReference
Operating5400 kgReference
Operating5890 kgReference
Ballasted8509 kgReference
Max Drawbar1849 kgReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Charging volts14Reference
Batteries2Reference
Battery volts6Reference
Deutz-Allis 7145 Height
Cab273 cmReference
Exhaust278 cmReference
Exhaust291 cmReference
Test results
36-speed 1985Reference
PTO performanceReference
Fuel use32.6 l/hourReference
Drawbar performanceReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
