Tractor · 1985Unverified

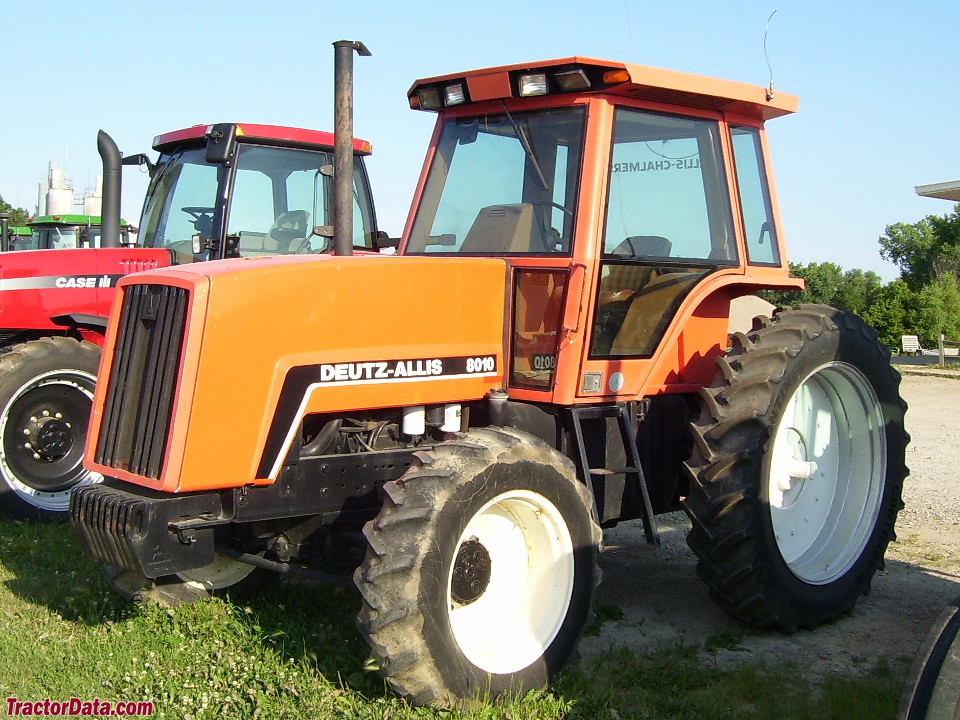

Deutz-Allis 8010
Deutz-Allis 8010 — Row-Crop tractor · 107 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
107 hp
Max power
68.2 kW
Weight
12630 to 13600 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built1,832Reference
Original price$46,176Reference
All 8000 series tractors were manufactured prior to the closure of the West Allis factory in 1985. Decal kits were provided to dealers for unsold inventory to replace the Allis Chalmers decals with Deutz-Allis.Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Differential hydraulic wet discs brakesReference
Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.Reference
Engine
Allis Chalmers 4.9L 6-cyl dieselReference
Drawbar (tested)68.2 kWReference
Allis Chalmers 649TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement4.9 LReference
Bore/Stroke98 x 108 mmReference
Air cleanerdryReference
Compression15.5:1Reference
Rated RPM2300Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity15.1 LReference
Coolant capacity24.6 LReference
Power at rated engine speed80.1 kWReference
Max power68.2 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
12-speed Allis-ChalmersReference
TransmissionAllis-Chalmers Power DirectorReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
Oil capacity28.0 LReference
Four gears (1-4) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.Reference
Gears20 forward and 4 reverseReference
Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.Reference
TransmissionPower ShiftReference
TypeAllis-ChalmersReference
Gears12 forward and 2 reverseReference
Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.Reference
PTO & Hydraulics
PTO (tested)80.1 kWReference
Typeload-sensitiveReference
Valves2 or 3Reference
Pump flow83.3 lpmReference
Pump flow51.1 lpmReference
Total flow170.3 lpmReference
Steering flow36.0 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3030 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed81.7 kWReference
Capacities
Fuel227.1 LReference
Fuel94.6 LReference
Rear diff.63.2 LReference
Dimensions
2WD Wheelbase269 cmReference
4WD Wheelbase243 cmReference
Weight12630 to 13600 poundsReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
2WD Ag front10.00-16Reference
4WD Ag front13.6-28Reference
Ag rear18.4-38Reference
2WD Ag front11.00-16Reference
2WD Ag front14L-16Reference
2WD Ag front18.4-16Reference
4WD Ag front14.9-28Reference
4WD Ag front14.9-24Reference
Ag rear20.8-38Reference
Ag rear18.4-42Reference
Ag rear16.9-38Reference
Length474 cmReference
Width235 cmReference
2WD Weight5728 kgReference
4WD Weight6168 kgReference
4WD 21 2WD} Clearance (front axle)44 cmReference
Clearance (rear axle)71 cmReference
8010 Serial Number Location
Serial number decal on the left side of the tractor's frame, just ahead of the fuel tank. Serial number also stamped into the casting at the rear of the tractor, above and to the left of the PTO shaft.Reference
8010 Serial Numbers
19811001Reference
19821020Reference
19831712Reference
19842266Reference
19852609Reference
Final2832Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps100Reference
Battery volts12Reference
Deutz-Allis 8010 Height
Hood175 cmReference
Cab289 cmReference
Exhaust287 cmReference
Test results
Diesel 12-speed 2WDAugust 30 - September 10, 1982Link: Nebraska Tractor Test 1446 fileReference
PTO performanceReference
Fuel use27.6 l/hourReference
Drawbar performanceReference
Gear 2F used for power test.Reference
Max pull4128 kgReference
Gear 3S used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
