Tractor · 1989Unverified

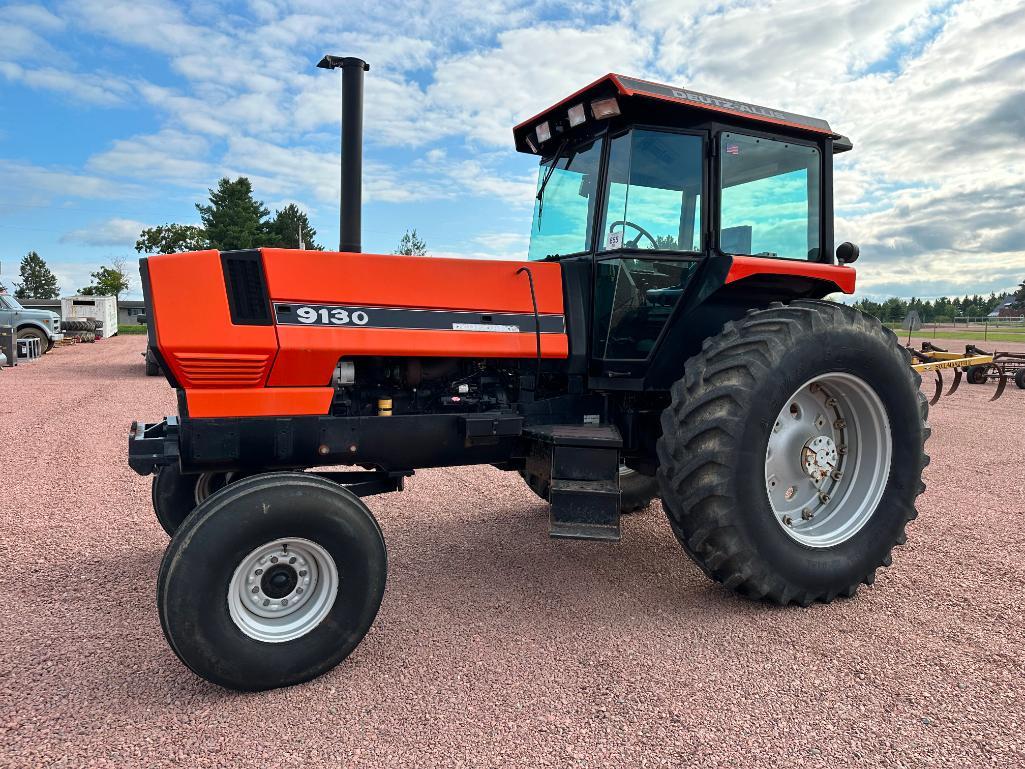

Deutz-Allis 9130
Deutz-Allis 9130 — Row-Crop tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5579 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank340.7 LReference
DeutzReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
18-speed partial power shiftReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Six forward gears, each with a three-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
TypeclosedReference
Valves3Reference
Pump flow90.8 lpmReference
Rear TypeII,IIIReference
Rear lift3271 kgReference
Rear PTOindependentReference
Rear PTO Type540,1000Reference
Dimensions
Wheelbase304 cmReference
Weight5579 kgReference
Front tire11.00-16Reference
Rear tire18.4R-38Reference
Ag front11.00-16Reference
Ag rear18.4R-38Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
