Tractor · 1989Unverified

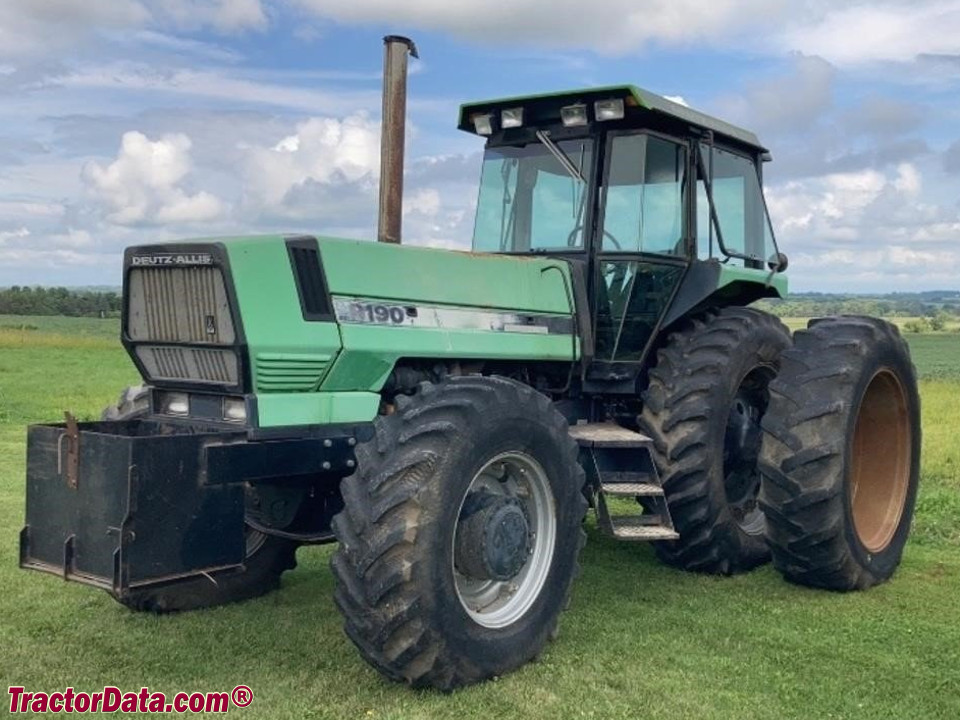

Deutz-Allis 9190
Deutz-Allis 9190 — Row-Crop tractor · 194 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
194 hp
Max power
127.0 kW
Weight
16600 to 18700 pounds
Hover a source tag to verify
Overview
DistributorDeutz-AllisReference
ManufacturerWhiteReference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Two- or four-wheel driveReference
Differential lockfront and rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Engine
Deutz 9.6L 6-cyl dieselReference
Fuel tank340.7 LReference
Drawbar (tested)127.0 kWReference
Deutz BF6L513RReference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement9.6 LReference
Bore/Stroke125 x 130 mmReference
Air cleanerdual paper elementsReference
Compression15.8:1Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity23.0 LReference
Power at rated engine speed144.3 kWReference
Max power127.0 kWReference
Transmission
18-speed partial power shiftReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Clutch330mm discsReference
Six speeds with three-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)143.9 kWReference
PTO (tested)144.3 kWReference
Typeclosed centerReference
Pressure172.4 barReference
Valves2 or 3Reference
Pump flow106.0 lpmReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2168Reference
Power at rated PTO speed146.9 kWReference
Dimensions
2WD Wheelbase302 cmReference
4WD Wheelbase292 cmReference
Weight16600 to 18700 poundsReference
Front tire16.9R28Reference
4WD Rear tire20.8R38Reference
4WD Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Width243 cmReference
Height309 cmReference
4WD Shipping7529 kgReference
Operating8482 kgReference
Ballasted8686 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDOctober 24 - November 13, 1989Link: Nebraska Tractor Test 1635 fileReference
PTO performanceReference
Fuel use47.3 l/hourReference
Fuel use45.4 l/hourReference
Drawbar performanceReference
Gear 3D used for power test.Reference
Max pull8604 kgReference
Gear 2D used for pull test.Reference
Speeds
With 20.8R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
