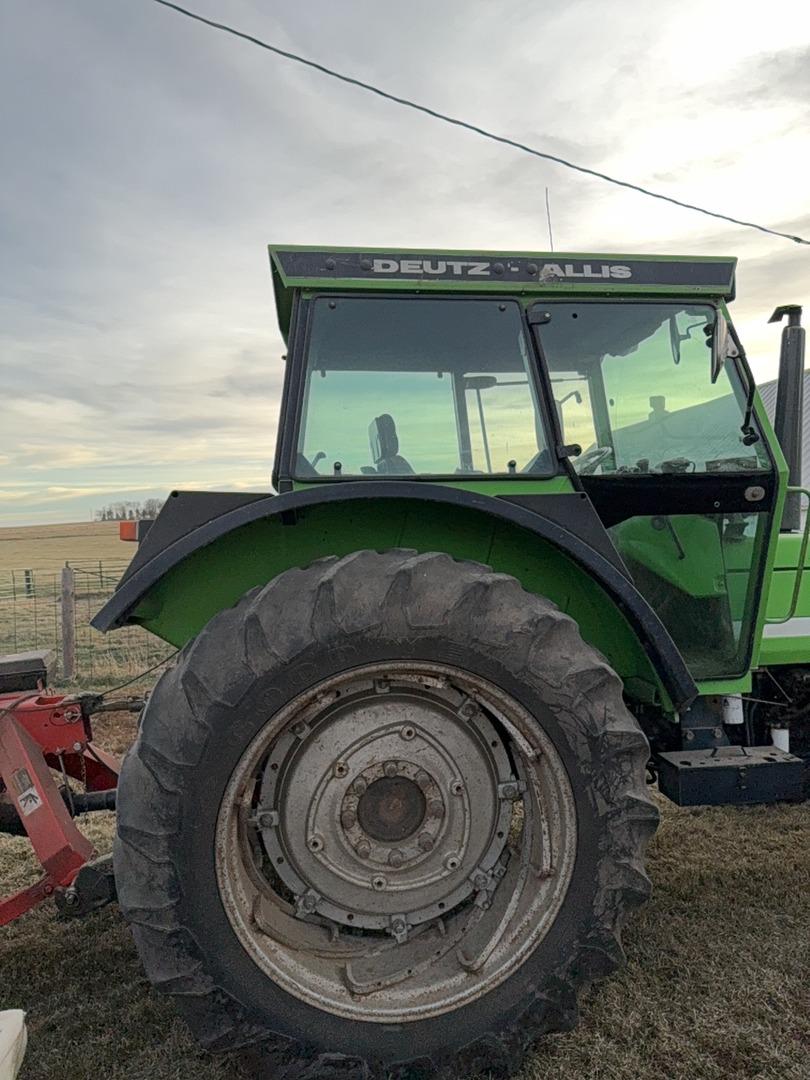

The Deutz-Allis DX4.70 is a tractor model with a rated power of 84 hp, a mid-range figure for its class. It was produced from 1984 to 1986. The tractor features a 4-cylinder turbocharged diesel engine and mechanical front-wheel drive with a 15-speed gearbox. Its listed operating weight is 4263 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
4263 kg
Catalogue coverage
Variants represented
2
Richest spec table
21 rows
Recorded power
84 hp
Recorded weight
4263 kg
Transmissions
15-speed
Production years
1984-1986
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutz-AllisReference
Original price$30,000 (1986)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
Deutz 4.1L 4-cyl dieselReference
DeutzReference
turbo dieselReference
4-cylinderReference
Displacement4.1 LReference
Transmission
15-speedReference
TransmissionsynchromeshReference
Gears15 forward and 5 reverseReference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
Rear PTOindependentReference
Rear PTO Type540, 1000Reference
Mid PTOIIReference
Dimensions
Weight4263 kgReference
Front tire10.00-16Reference
Rear tire18.4-34Reference
Ag front10.00-16Reference
Ag rear18.4-34Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
