Tractor · 1969Unverified

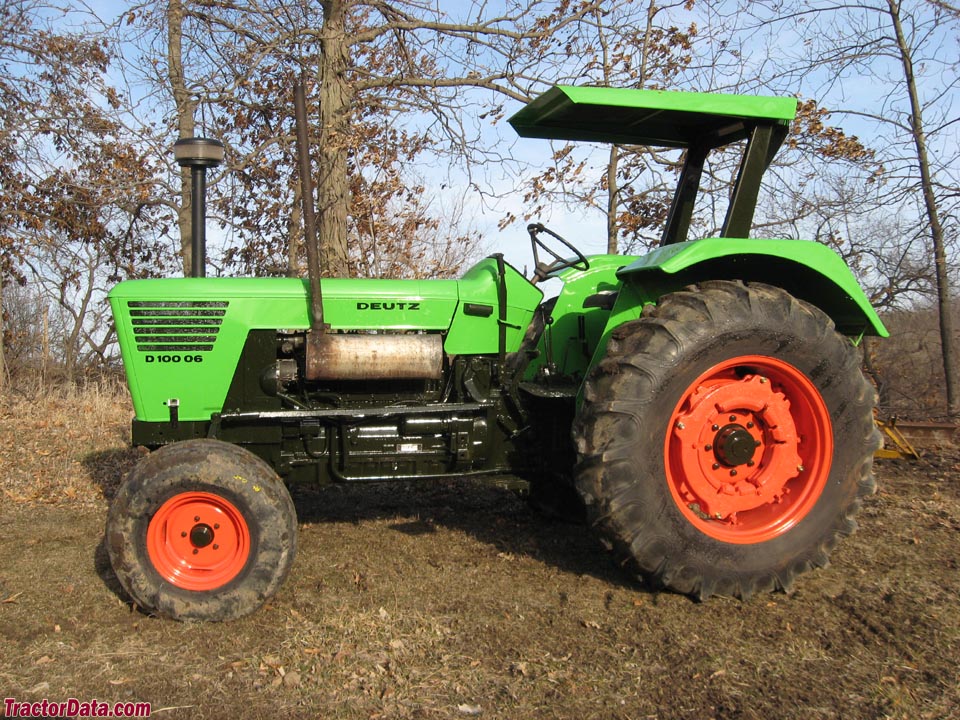

Deutz D 10006
Deutz D 10006 — 06 Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
8298 to 9256 pounds
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Two- or four-wheel driveReference
Power steeringReference
ROPS optional. Cab optional with heater.Reference
Variants
D100062WDReference
D10006A4WDReference
Engine
Deutz 5.7L 6-cyl dieselReference
Fuel tank92.0 LReference
Engine74.6 kWReference
Deutz F6L 912Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.7 LReference
Bore/Stroke100 x 120 mmReference
Power74.6 kWReference
Rated RPM2300Reference
Transmission
12-speedReference
16-speedReference
Gears12 forward and 6 reverseReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow34.8 lpmReference
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase255 cmReference
Weight8298 to 9256 poundsReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
2WD Ag front7.50-20Reference
4WD Ag front12.4-24Reference
Ag rear18.4-34Reference
Length420 cmReference
2WD Operating weight3763 kgReference
4WD Operating weight4198 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
