Tractor · 1970Unverified

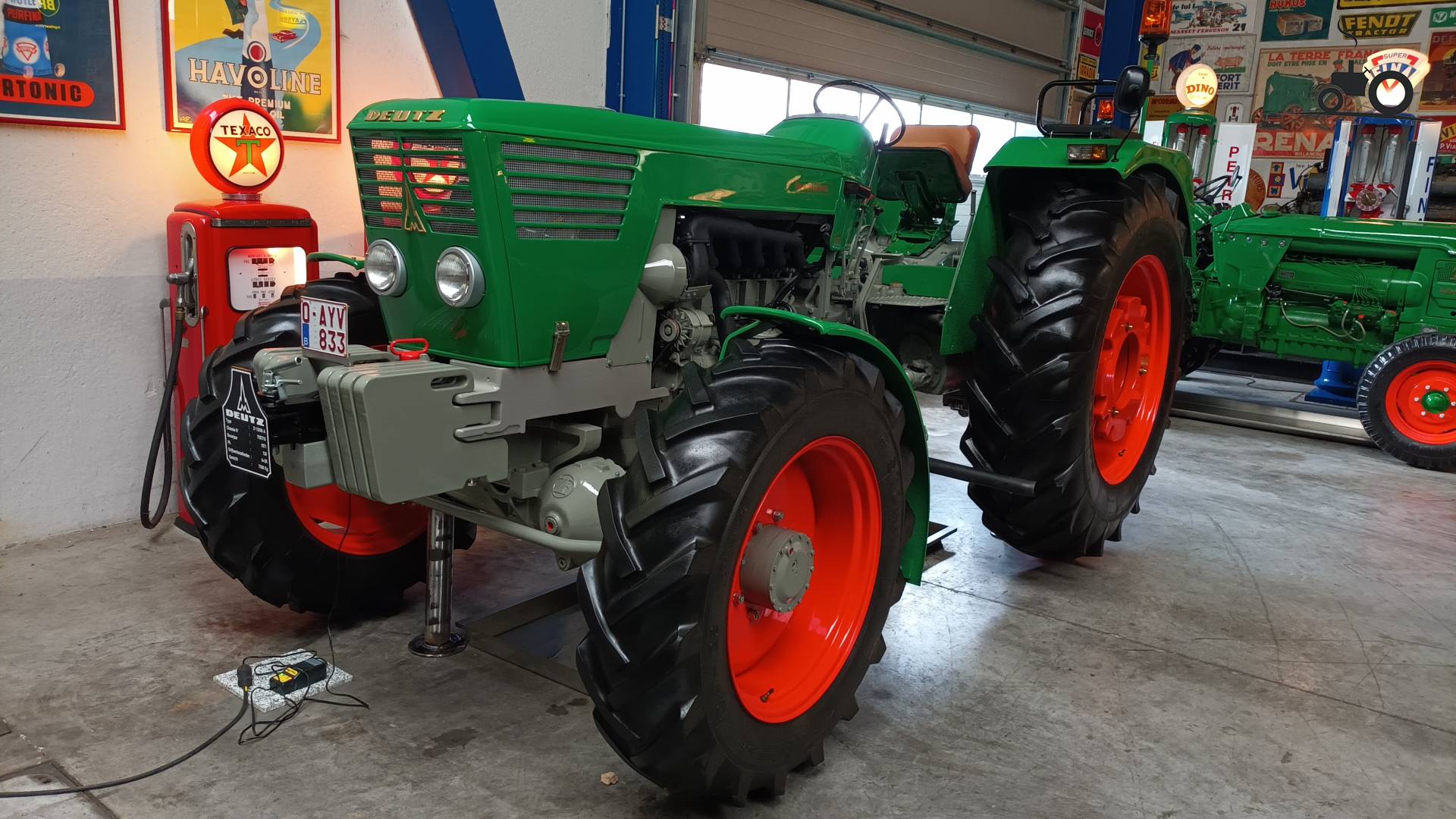

Deutz D 12006
Deutz D 12006 — 06 Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
4650 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Engine
Deutz 5.7L 6-cyl dieselReference
Fuel tank120.0 LReference
Engine89.5 kWReference
Deutz F6L 912Reference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement5.7 LReference
Bore/Stroke100 x 120 mmReference
Power89.5 kWReference
Rated RPM2300Reference
Transmission
16-speedReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
Pump flow34.8 lpmReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase255 cmReference
Weight4650 kgReference
Front tire12.4/11x28Reference
Rear tire18.4/15x38Reference
Standard tires (ag)Front: 12.4/11x28. Rear: 18.4/15x38Reference
Length424 cmReference
Height274 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
