Tractor · 1972Unverified

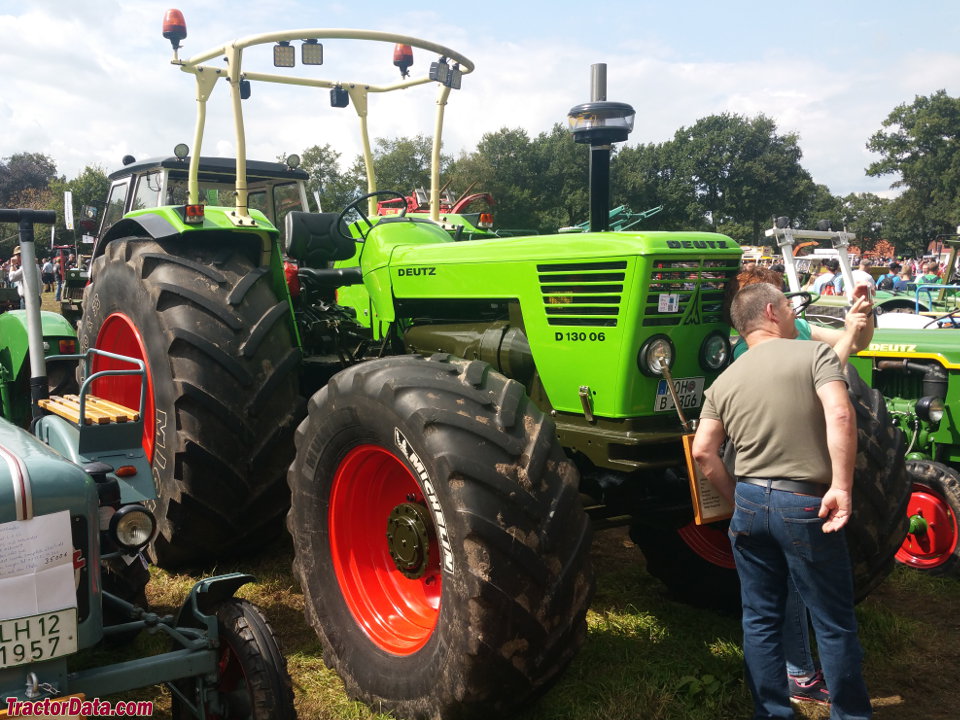

Deutz D 13006
Deutz D 13006 — 06 Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
4762 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Two- or four-wheel driveReference
Power steeringReference
ROPS optional. Cab optional.Reference
Variants
D130062WDReference
D13006A4WDReference
Engine
Deutz 5.9L 6-cyl dieselReference
Fuel tank160.1 LReference
Engine96.9 kWReference
Deutz BF6L 912Reference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement5.9 LReference
Bore/Stroke100 x 120 mmReference
Power96.9 kWReference
Rated RPM2400Reference
Transmission
16-speed synchromeshReference
TransmissionZF T 3402Reference
TypesynchromeshReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow42.8 lpmReference
Rear lift4200 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase254 cmReference
Weight4762 kgReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
2WD Ag front11.00-16Reference
4WD Ag front16.9-24Reference
2WD Ag rear18.4-38Reference
4WD Ag rear20.5-38Reference
Length429 cmReference
Width228 cmReference
Operating weight4762 kgReference
Max weight7393 kgReference
Ground clearance58 cmReference
Steering wheel195 cmReference
Deutz D 13006 Height
273 cmReference
Exhaust236 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
