Tractor · 1959Unverified

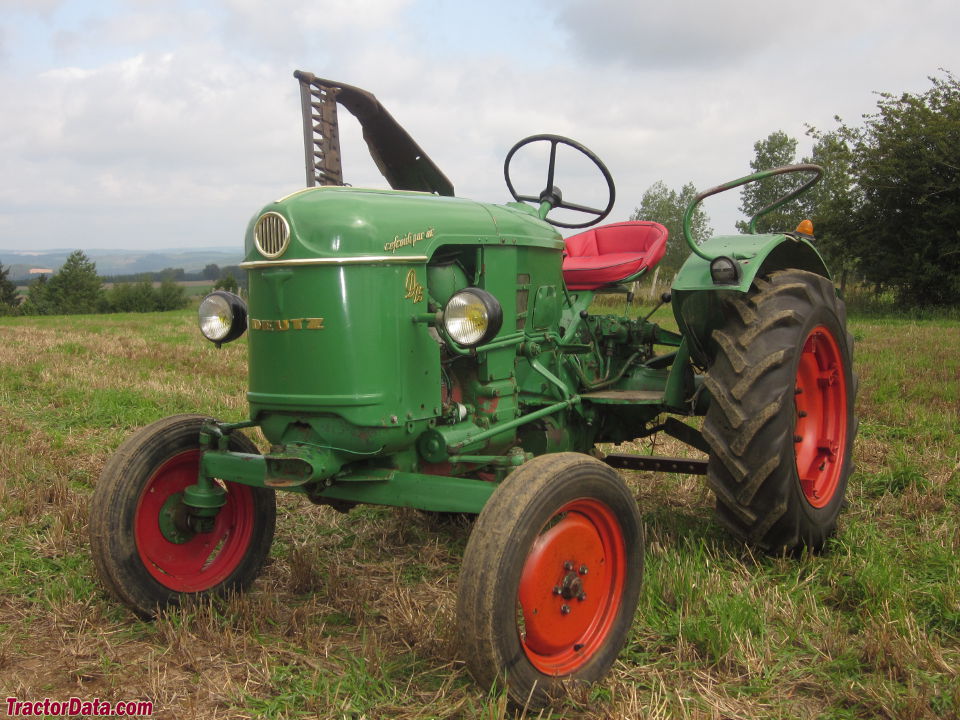

Deutz D 15
Deutz D 15 — D Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
920 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Two-wheel driveReference
Open operator station.Reference
Engine
Deutz 0.8L 1-cyl dieselReference
Engine10.4 kWReference
Deutz F1L712Reference
dieselReference
1-cylinderReference
air-cooledReference
Displacement0.8 LReference
Bore/Stroke95 x 120 mmReference
Power10.4 kWReference
Rated RPM2400Reference
Transmission
6-speed gearReference
TransmissionZFReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase168 cmReference
Weight920 kgReference
Front tire4.00-16Reference
Rear tire8-24Reference
Ag front4.00-16Reference
Ag rear8-24Reference
Ag front5.00-16Reference
Ag rear9-24Reference
Ag rear9-28Reference
Length264 cmReference
Width154 cmReference
Height149 cmReference
Ground clearance42 cmReference
Capacities
Diameter17 cmReference
Width9 cmReference
RPM1655Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
