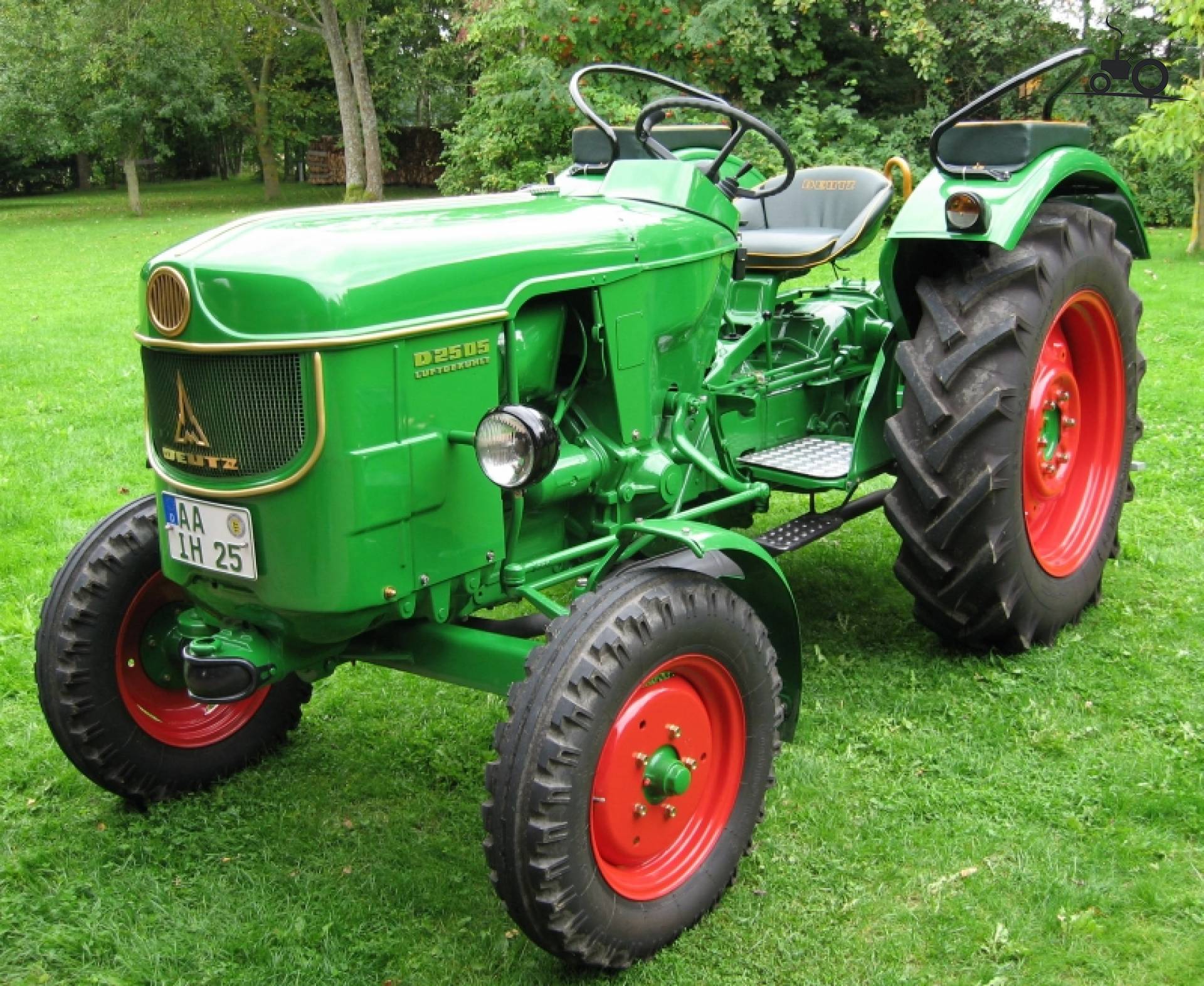

The Deutz D 2505 is a tractor rated at 22 hp — making it one of the more compact options in its class. This model was manufactured from 1965 to 1967. Under the hood is a 2-cylinder diesel engine, driving through two-wheel drive with a 8-speed gearbox. Listed weight is 1549 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1549 kg
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
22 hp
Recorded weight
1549 kg
Transmissions
8-speed
Production years
1965-1967
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Two-wheel driveReference
Engine
Deutz 1.7L 2-cyl dieselReference
Fuel tank0.0 LReference
Engine16.4 kWReference
DeutzReference
dieselReference
2-cylinderReference
Displacement1.7 LReference
Bore/Stroke95 x 120 mmReference
Power16.4 kWReference
Rated RPM1900Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Pump flow23.1 lpmReference
Rear lift1549 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight1549 kgReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16Reference
Ag rear11.2-28Reference
Length329 cmReference
Height159 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
