Tractor · 1958Unverified

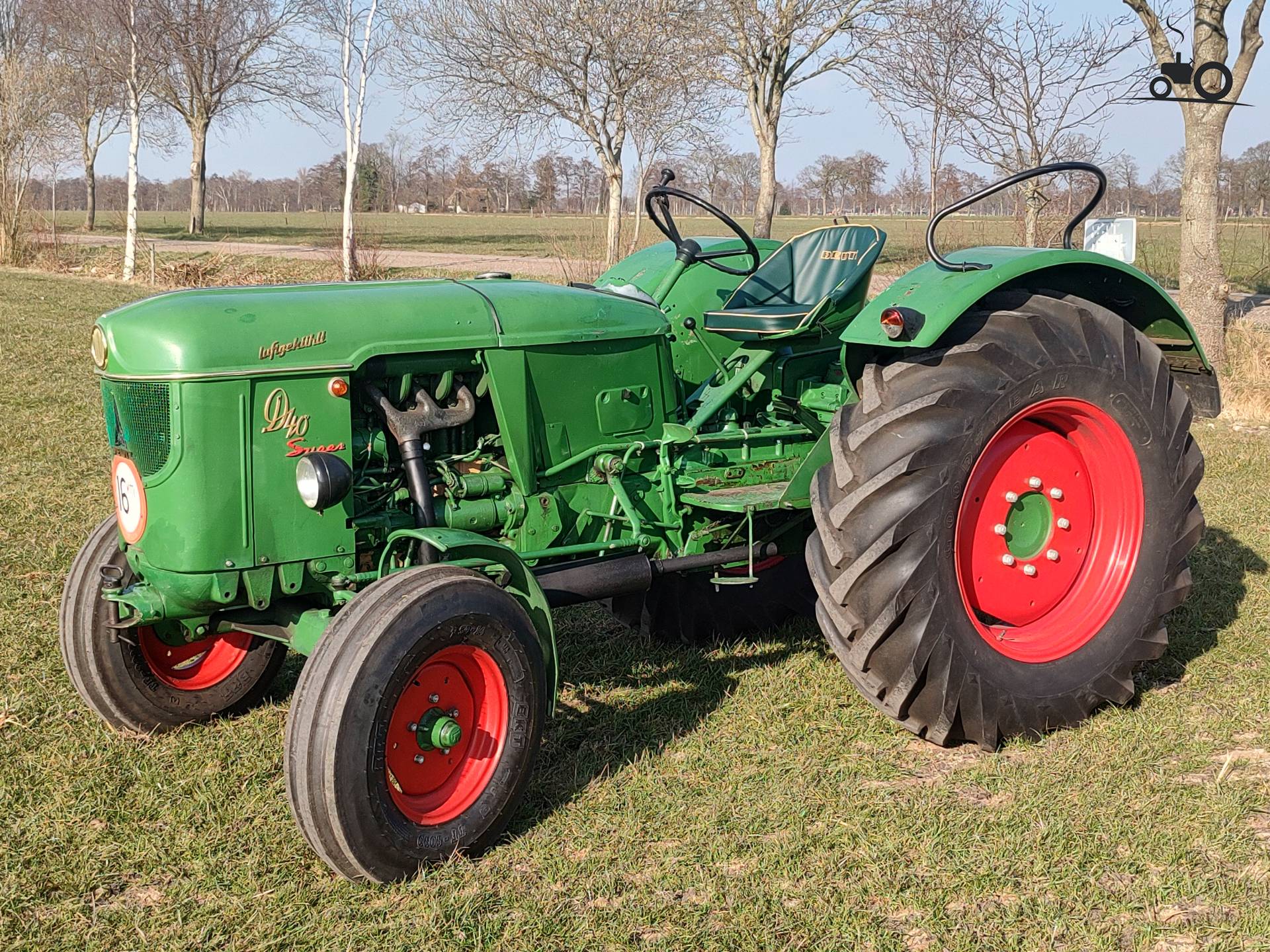

Deutz D 40
Deutz D 40 — D Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1749 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Standard-tread tractorReference
Two-wheel driveReference
Open operator station.Reference
Engine
Deutz 2.6L 3-cyl dieselReference
Engine25.7 kWReference
Deutz F3L 712Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Power25.7 kWReference
Rated RPM2150Reference
Transmission
7-speed gearReference
TypegearReference
Gears7 forward and 3 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase211 cmReference
Weight1749 kgReference
Front tire5.50-16Reference
Rear tire11-28Reference
Ag front5.50-16Reference
Ag rear11-28Reference
Ag rear9-36Reference
Length335 cmReference
Width154 cmReference
Height167 cmReference
Ground clearance39 cmReference
Rear tread124 to 150 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
