Tractor · 1968Unverified

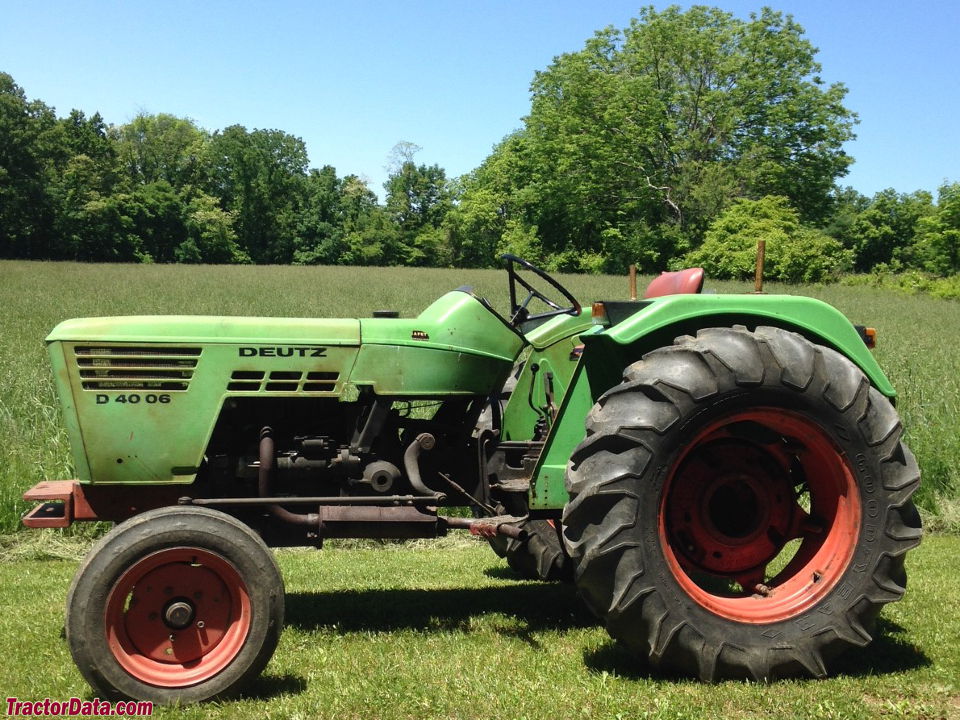

Deutz D 4006
Deutz D 4006 — 06 Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
4498 to 5005 pounds
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Utility tractorReference
Two- or four-wheel driveReference
2WD SteeringmanualReference
4WD Steeringhydraulic powerReference
ROPS optional. Optional cab with heater.Reference
Variants
D 40062WDReference
D 4006A4WDReference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine26.1 kWReference
Deutz F3L 912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power26.1 kWReference
Rated RPM2150Reference
Transmission
8-speedReference
12-speedReference
Gears8 forward and 2 reverseReference
Gears8 forward and 4 reverseReference
The synchromesh 12-speed transmission was an option on the D4006A and featured an independent 540/1000 PTO.Reference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow25.4 lpmReference
Rear TypeIReference
Rear lift (at ends)1560 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase199 cmReference
Weight4498 to 5005 poundsReference
Front tire6.50-16Reference
Rear tire12.4-32Reference
Ag front6.50-16Reference
Ag front7.50-18 (4WD)Reference
Ag rear12.4-32Reference
Length342 cmReference
2WD Weight2040 kgReference
4WD Weight2270 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
