Tractor · 1965Unverified

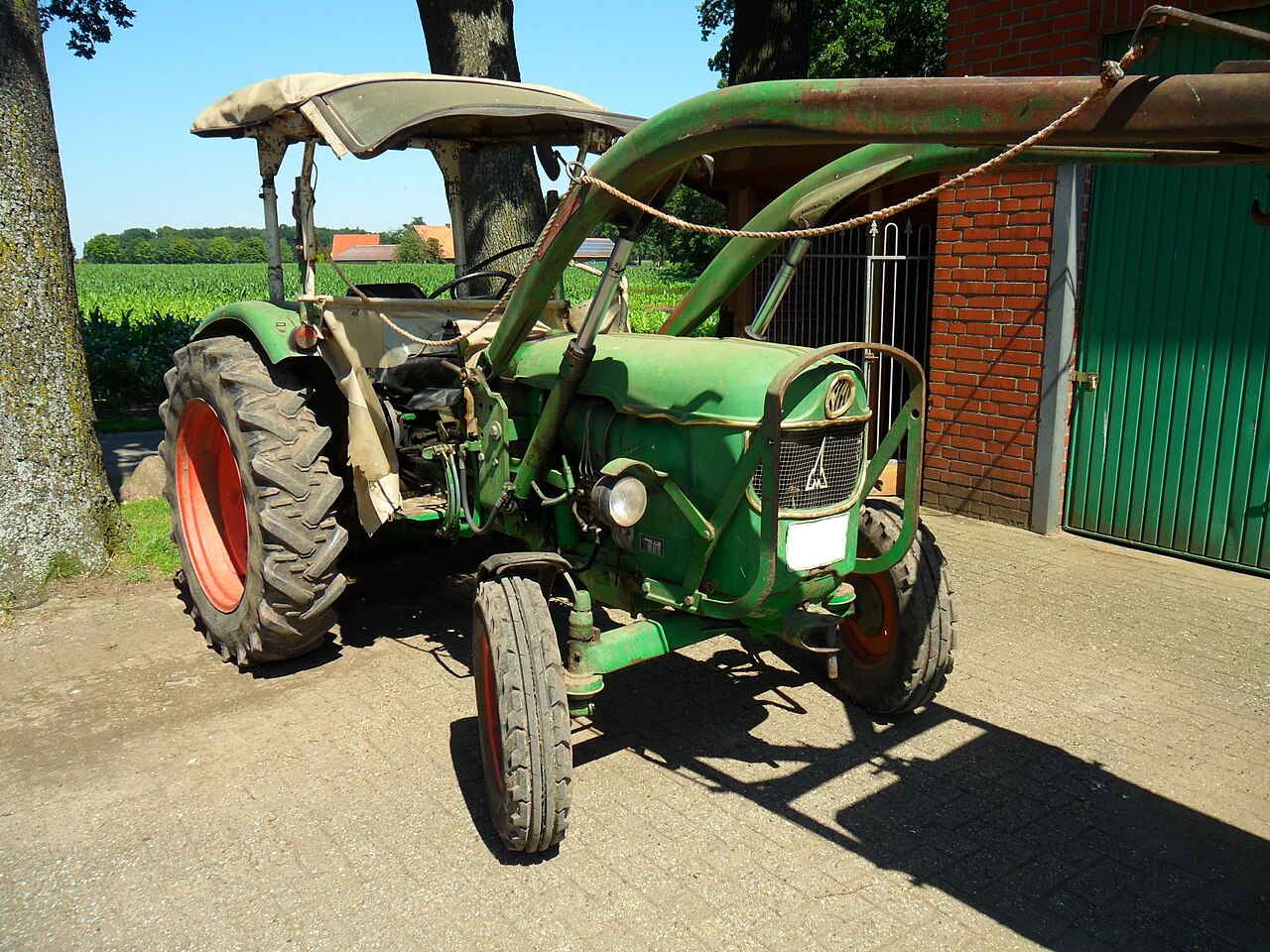

Deutz D 4505

Name: Deutz D 4505
Brand: Deutz

Deutz D 4505 · 40 hp. Reference specifications; pending source verification.

The Deutz D 4505 is a compact tractor with a rating of 40 hp, placing it amongst smaller models in its class. Manufactured between 1965 and 1967, the tractor features a 3-cylinder diesel engine, paired with a 6-speed gearbox. The listed weight of the Deutz D 4505 is 1920 kg, and it is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

1920 kg

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

40 hp

Recorded weight

1920 kg

Transmissions

6-speed

Production years

1965-1967

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerDeutzReference

Engine

Deutz 2.6L 3-cyl dieselReference

Fuel tank0.0 LReference

Engine29.8 kWReference

DeutzReference

dieselReference

3-cylinderReference

Displacement2.6 LReference

Bore/Stroke95 x 120 mmReference

Power29.8 kWReference

Rated RPM2300Reference

Transmission

6-speedReference

8-speedReference

Gears6 forward and 2 reverseReference

Gears8 forward and 2 reverseReference

PTO & Hydraulics

Pump flow18.2 lpmReference

Rear lift1749 kgReference

Rear PTO Type540, 1000Reference

Dimensions

Wheelbase199 cmReference

Weight1920 kgReference

Front tire5.50-16Reference

Rear tire12.4-32Reference

Ag front5.50-16Reference

Ag rear12.4-32Reference

Length343 cmReference

Height167 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
