Tractor · 1971Unverified

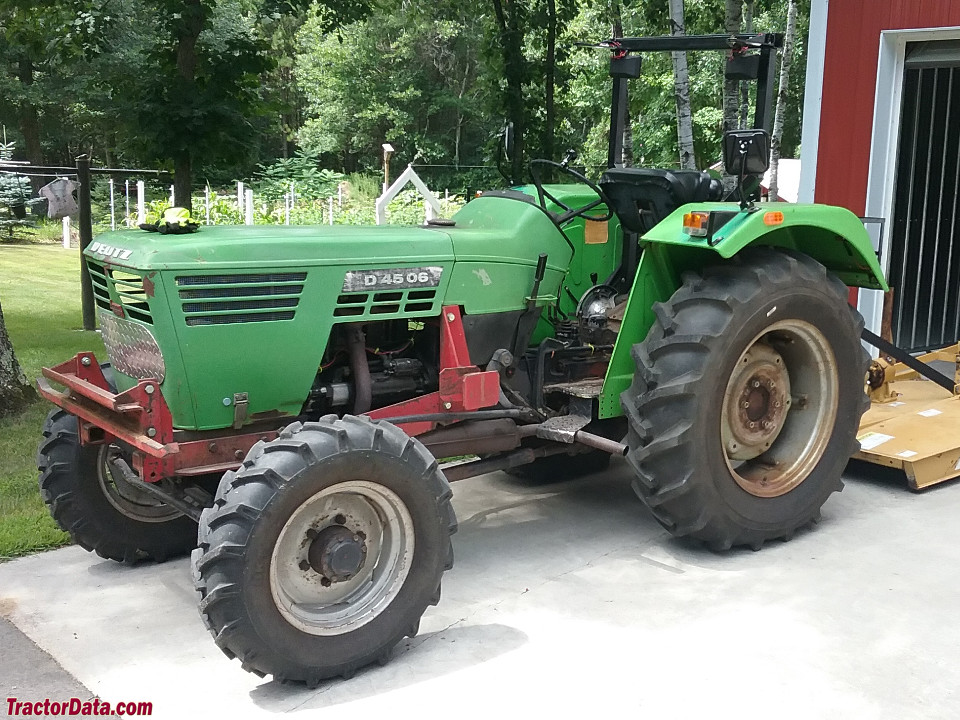

Deutz D 4506
Deutz D 4506 — 06 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
2372 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
Steeringhydraulic power (D4506A)Reference
Cab optional with heater.Reference
Variants
D 45062WDReference
D4506A4WDReference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine29.8 kWReference
Deutz F3L 912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power29.8 kWReference
Rated RPM2300Reference
Torque154.6 NmReference
Torque RPM1660Reference
Transmission
8-speedReference
8-speed synchromeshReference
12-speed synchromeshReference
TransmissionDeutz TW35.2Reference
Gears8 forward and 2 reverseReference
Oil capacity16.0 LReference
TransmissionDeutz TW35.4Reference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Oil capacity18.0 LReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow25.4 lpmReference
Rear PTO Type540Reference
Dimensions
Wheelbase199 cmReference
Weight2372 kgReference
Front tire6.50-16Reference
Rear tire12.4-32Reference
2WD Ag front6.50-16Reference
4WD Ag front7.50-18Reference
Ag rear12.4-32Reference
Length346 cmReference
Operating weight2372 kgReference
Max weight3197 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
