Tractor · 1974Unverified

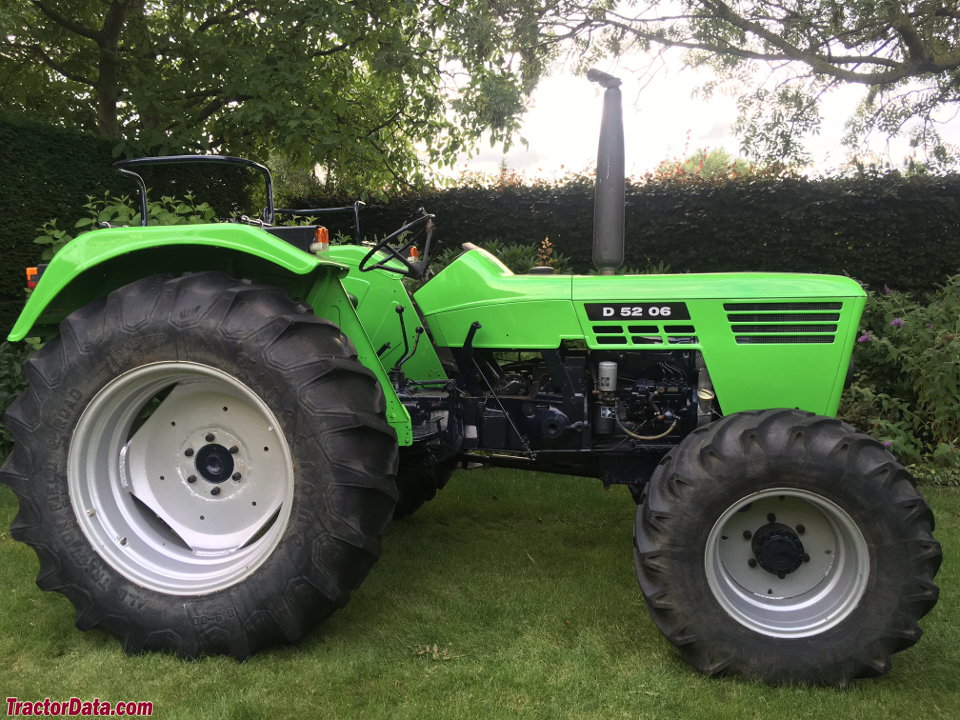

Deutz D 5206
Deutz D 5206 — 06 Series · 51 hp. Reference specifications; pending source verification.
The Deutz D 5206 is a tractor model with a rated power output of 51 hp, situated at the lower end of its class in terms of power. It was manufactured from 1974 to 1981. The model features a 3-cylinder diesel air-cooled engine, paired with four-wheel drive and an 8-speed gearbox. Its operating weight is listed as 4690 to 5370 pounds, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
4690 to 5370 pounds
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
51 hp
Transmissions
8-speed synchromesh
Production years
1974-1981
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Two- or four-wheel driveReference
ROPS optional. Cab optional with heater.Reference
Variants
D52062WDReference
D5206A4WDReference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine38.0 kWReference
Deutz F3L 912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power38.0 kWReference
Rated RPM2300Reference
Transmission
8-speed synchromeshReference
12-speed synchromesh with creeperReference
TransmissionDeutz TW 50.3Reference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Typesynchromesh with creeperReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow27.3 lpmReference
Rear lift1900 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase205 cmReference
Weight4690 to 5370 poundsReference
Front tire7.50-16Reference
Rear tire12.4-36Reference
2WD Ag front7.50-16Reference
4WD Ag front7.50-18Reference
Ag rear12.4-36Reference
Length346 cmReference
Height238 cmReference
2WD Operating2127 kgReference
4WD Operating2435 kgReference
Capacities
Max capacity4000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
