Tractor · 1965Unverified

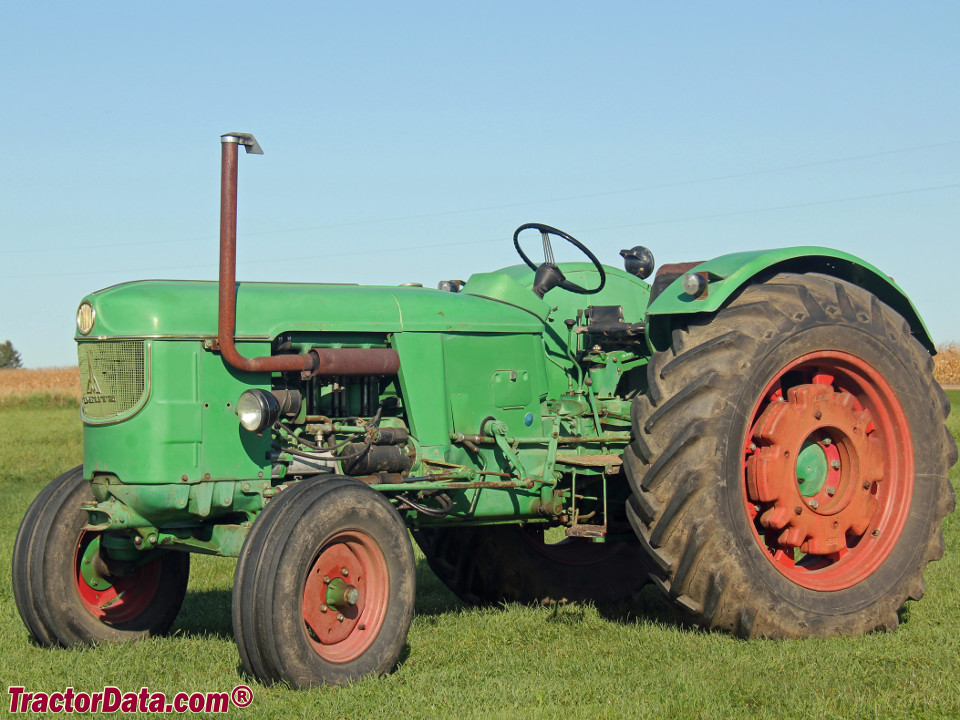

Deutz D 5505
Deutz D 5505 — 05 Series · 51 hp. Reference specifications; pending source verification.
The Deutz D 5505 is a tractor with a rated output of 51 hp and a compact design. It was manufactured between 1965 and 1966. The tractor features a 4-cylinder diesel air-cooled engine, coupled with a two-wheel drive system and an 8-speed gearbox. Its listed weight is 2459 kg, suitable for tasks of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
2459 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
51 hp
Recorded weight
2459 kg
Transmissions
8-speed gear
Production years
1965-1966
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Row-Crop tractorReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Deutz 3.4L 4-cyl dieselReference
Fuel tank64.0 LReference
Engine38.3 kWReference
Deutz F4L 812Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.4 LReference
Bore/Stroke95 x 120 mmReference
Power38.3 kWReference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity9.5 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pump flow26.9 lpmReference
Rear lift2200 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2075Reference
Engine RPM1000@1970Reference
Dimensions
Wheelbase219 cmReference
Weight2459 kgReference
Front tire6.00-19Reference
Rear tire11-36Reference
Ag front6.00-19Reference
Ag rear11-36Reference
Length373 cmReference
Width180 cmReference
Height (cab)245 cmReference
Ground clearance50 cmReference
Front tread142 to 188 cmReference
Rear tread150 to 175 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
