Tractor · 1968Unverified

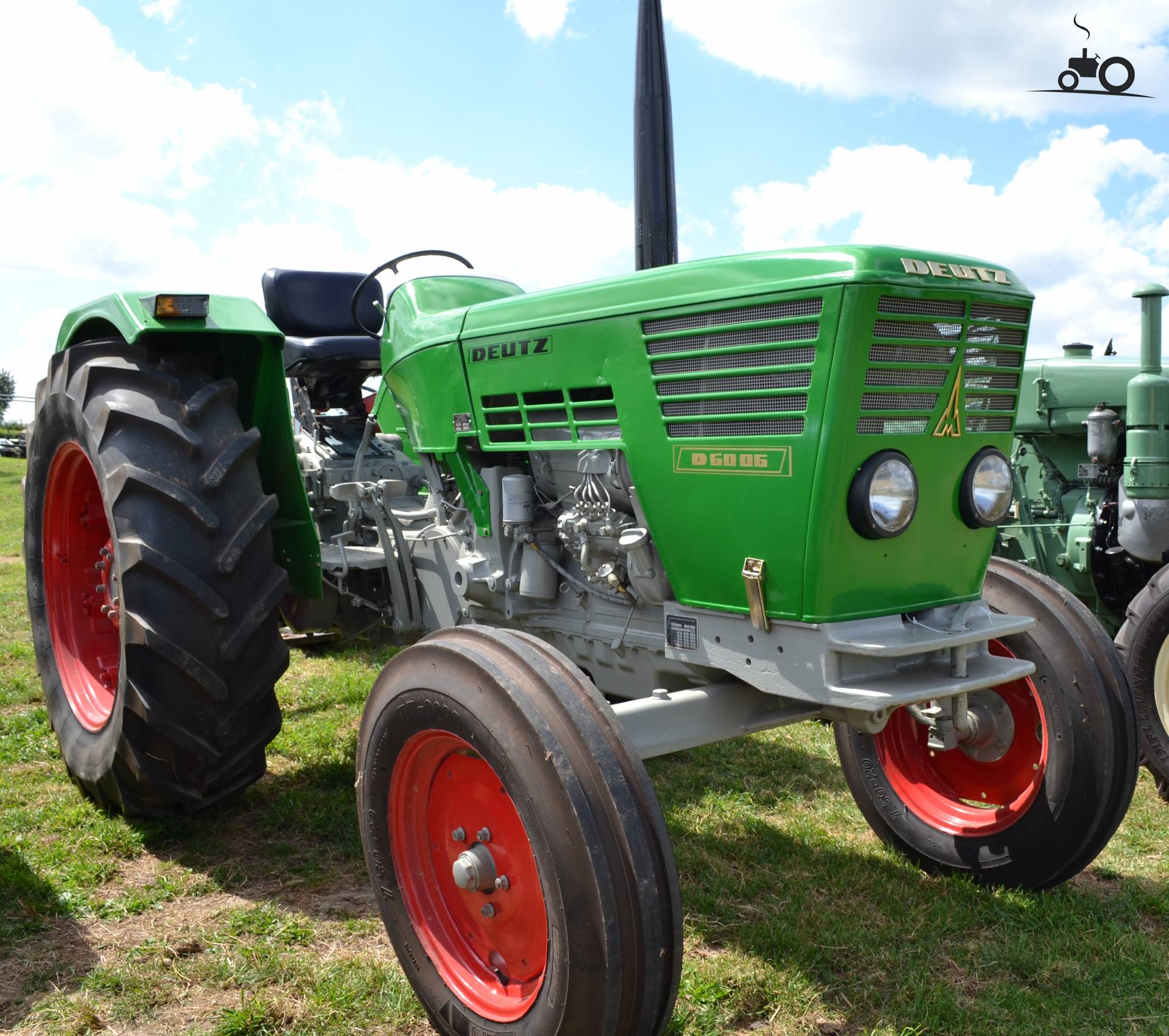

Deutz D 6006
Deutz D 6006 — 06 Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
5756 to 6906 pounds
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Utility tractorReference
Two- or four-wheel driveReference
Four-post ROPS optional. Cab optional with heater.Reference
Variants
D60062WDReference
D6006A4WDReference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine46.2 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power46.2 kWReference
Rated RPM2300Reference
Transmission
9-speed partially synchronizedReference
8-speedReference
12-speedReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
The 9-speed was the early transmission, used until 1972.Reference
Gears8 forward and 4 reverseReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow27.3 lpmReference
Rear TypeIIReference
Rear lift1905 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTOindependent ((Optional)Reference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@2020Reference
Engine RPM1000@2170Reference
Dimensions
2WD Wheelbase215 cmReference
4WD Wheelbase217 cmReference
Weight5756 to 6906 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
2WD Ag front7.50-16Reference
4WD Ag front12.5-20Reference
Ag rear16.9-30Reference
2WD Length372 cmReference
4WD Length371 cmReference
Width207 cmReference
Height (steering wheel)180 cmReference
Height (ROPS)271 cmReference
2WD Operating weight2610 kgReference
4WD Operating weight3132 kgReference
2WD Ground clearance49 cmReference
4WD Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
