Tractor · 1974Unverified

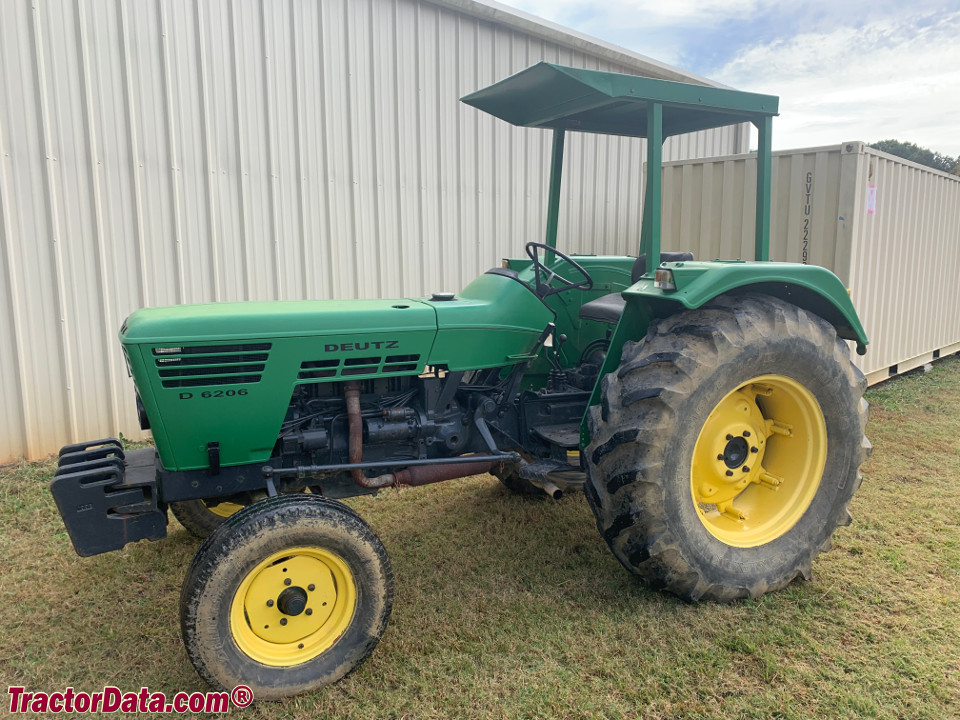

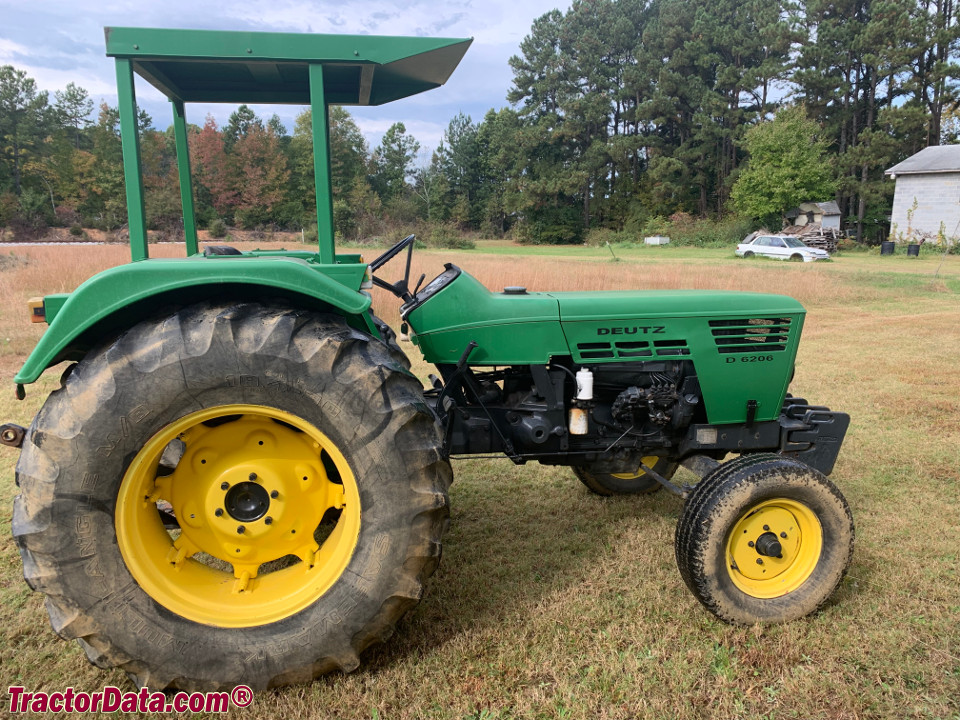

Deutz D 6206
Deutz D 6206 — 06 Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5050 to 5950 pounds
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Four post ROPS available. EURO comfort cab optional with heater.Reference
Variants
D62062WDReference
D6206A4WDReference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine44.7 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power44.7 kWReference
Rated RPM2050Reference
Torque187.1 NmReference
Torque RPM1700Reference
Transmission
8-speed synchromeshReference
12-speed synchromesh with creeperReference
TransmissionDeutz TW 50.3Reference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Four gears in two ranges, plus reverse range. A ninth, 30 kph, overdrive gear was optional in some markets.Reference
Typesynchromesh with creeperReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow31.0 lpmReference
Rear TypeIIReference
Rear lift2000 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@1700Reference
Dimensions
2WD Wheelbase212 cmReference
4WD Wheelbase217 cmReference
Weight5050 to 5950 poundsReference
Front tire7.50-16Reference
2WD Rear tire12.6-36Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 12.6-36Reference
4WD Standard tires (ag)Front: 10.5-20. Rear: 12.4-36Reference
Length368 cmReference
Width183 cmReference
Height (steering wheel)160 cmReference
Height (ROPS)247 cmReference
2WD Ground clearance49 cmReference
4WD Ground clearance29 cmReference
2WD Front tread148 to 187 cmReference
4WD Front tread150 cmReference
Rear tread141 to 192 cmReference
2WD Operating2290 kgReference
4WD Operating2698 kgReference
Capacities
Max capacity4000 kgReference
Speeds
With 12.4/11-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
