Tractor · 1974Unverified

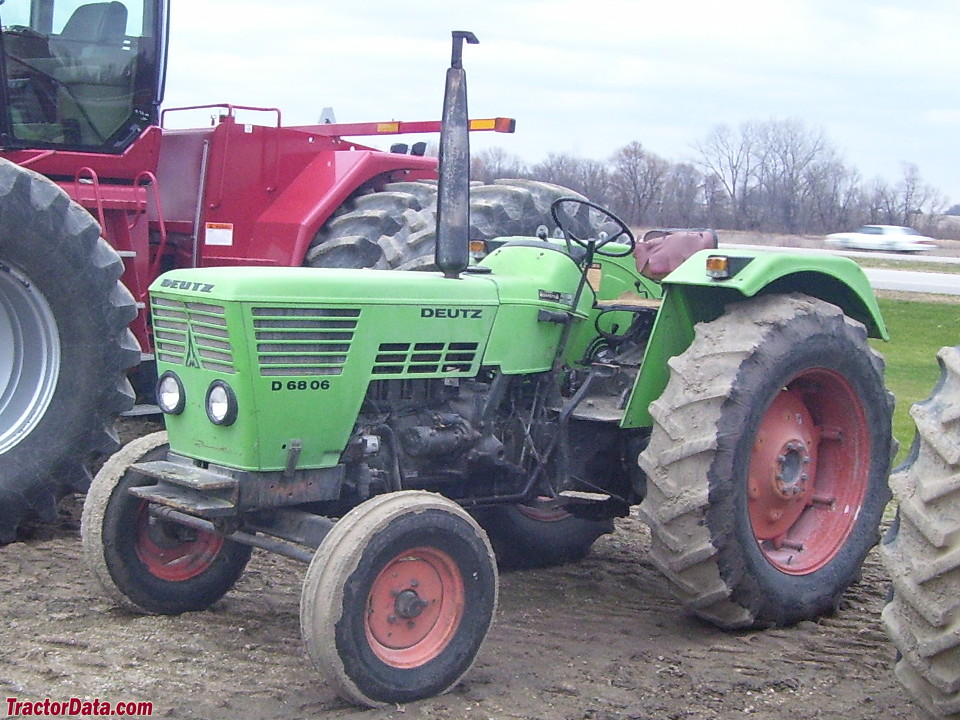

Deutz D 6806
Deutz D 6806 — 06 Series · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
6070 to 7220 pounds
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Two- or four-wheel driveReference
ROPS optional. EURO comfortcab optional with heater.Reference
Variants
D68062WDReference
D6806A4WDReference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank92.0 LReference
Engine50.0 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power50.0 kWReference
Rated RPM2300Reference
Torque221.0 NmReference
Torque RPM1600Reference
Transmission
8-speed synchromeshReference
12-speed synchromesh with creeperReference
TransmissionDeutz TW 55.4Reference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Typesynchromesh with creeperReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow34.8 lpmReference
Rear lift2600 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase215 cmReference
Weight6070 to 7220 poundsReference
Front tire7.50-18Reference
Rear tire16.9-30Reference
2WD Ag front7.50-18Reference
4WD Ag front9.5-24Reference
Ag rear16.9-30Reference
Length370 cmReference
Width193 cmReference
Height (steering wheel)180 cmReference
Height (ROPS)271 cmReference
2WD Operating2753 kgReference
4WD Operating3274 kgReference
Capacities
Max capacity4998 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
