Tractor · 1968Unverified

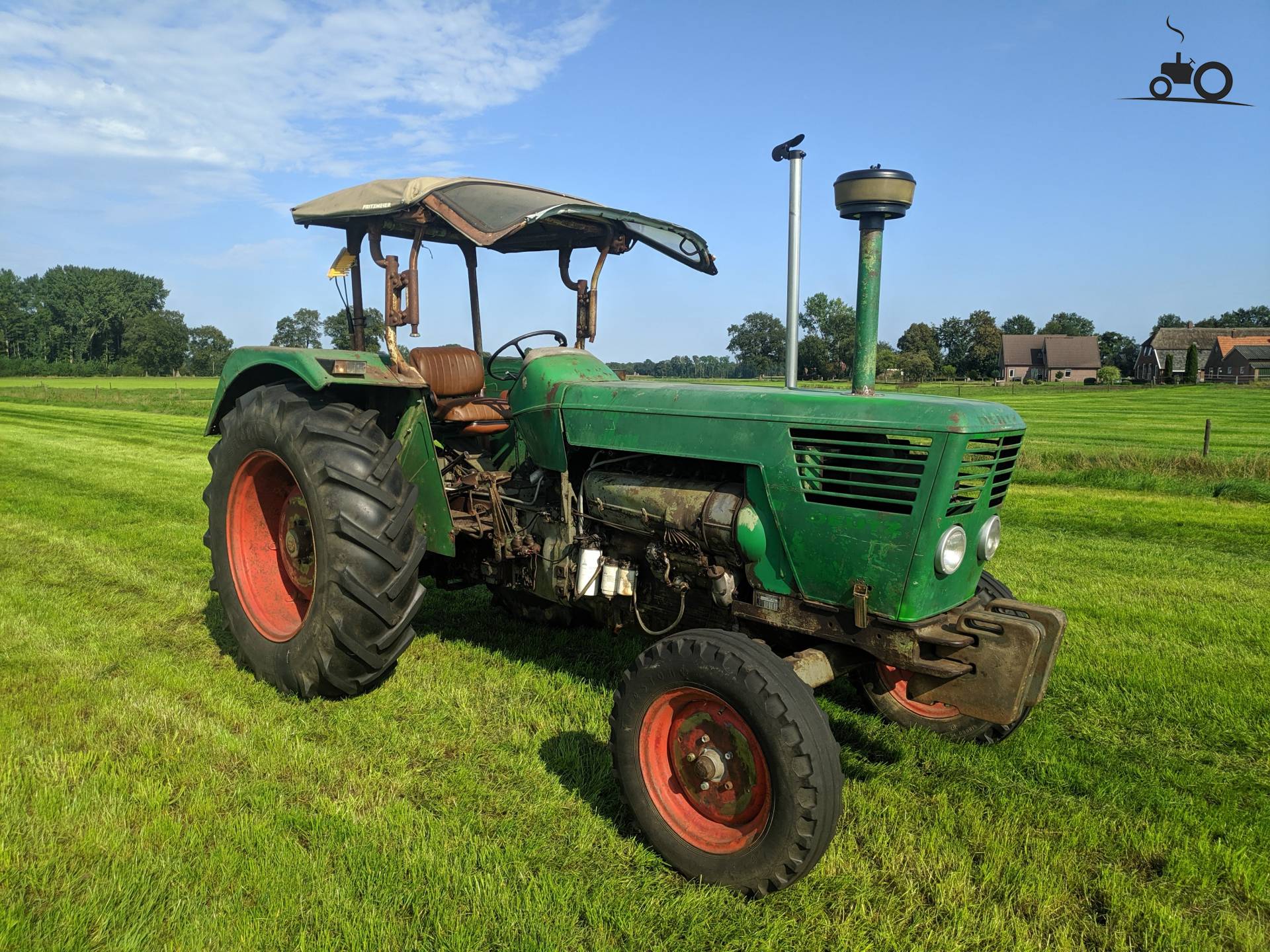

Deutz D 7506
Deutz D 7506 — 06 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6647 to 7441 pounds
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
D75062WDReference
D7506A4WDReference
Engine
Deutz 5.7L 6-cyl dieselReference
Fuel tank92.0 LReference
Engine55.9 kWReference
Deutz F6L 912Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.7 LReference
Bore/Stroke100 x 120 mmReference
Power55.9 kWReference
Rated RPM2100Reference
Starter typeelectricReference
Transmission
12-speed synchromeshReference
16-speed creeperReference
TypesynchromeshReference
Gears12 forward and 5 reverseReference
TypecreeperReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow34.8 lpmReference
Rear TypeIIReference
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase255 cmReference
Weight6647 to 7441 poundsReference
Front tire7.50-20Reference
2WD Rear tire18.4/15-30Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 18.4/15-30Reference
4WD Standard tires (ag)Front: 12.5-20. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 10.5-20. Rear: 16.9/14-30Reference
Length408 cmReference
Width199 cmReference
Height (exhaust)240 cmReference
2WD Ground clearance52 cmReference
4WD Ground clearance31 cmReference
2WD Front tread141 to 192 cmReference
Front tread164 cmReference
Rear tread151 to 182 cmReference
2WD3015 kgReference
4WD3375 kgReference
Capacities
4WD Max capacity5800 kgReference
Speeds
With 18.4/15-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
