Tractor · 1965Unverified

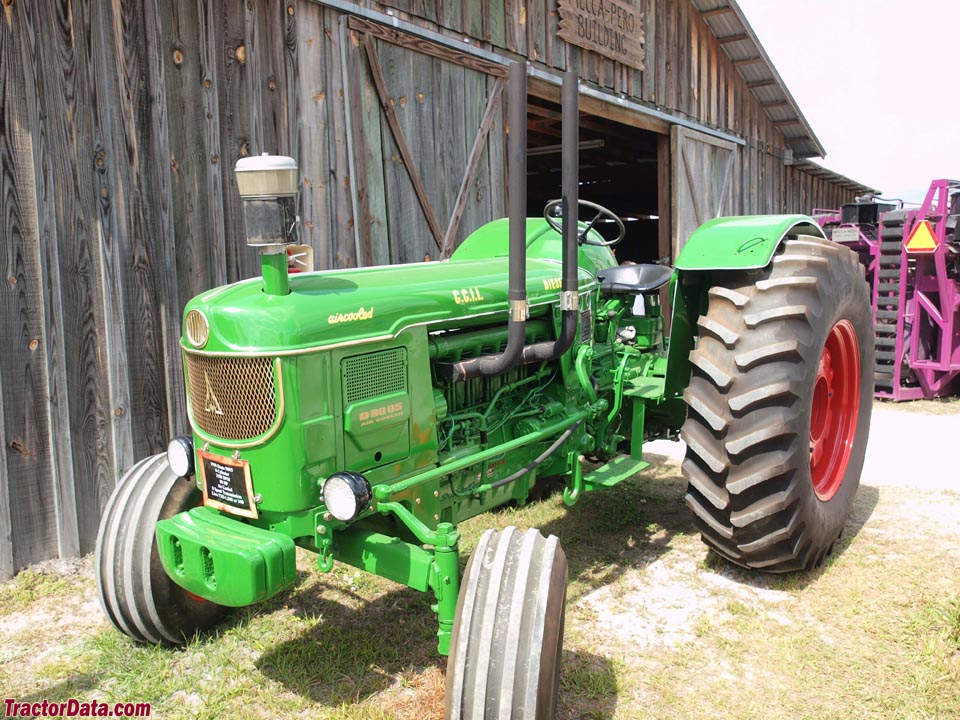

Deutz D 8005
Deutz D 8005 — 05 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
8136 to 9481 pounds
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
D80052WDReference
D8005A4WDReference
Engine
Deutz 5.1L 6-cyl dieselReference
Engine59.7 kWReference
Deutz F6L 812Reference
dieselReference
6-cylinder 12-valveReference
air-cooledReference
Displacement5.1 LReference
Bore/Stroke95 x 120 mmReference
Power59.7 kWReference
Rated RPM2300Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pump flow26.9 lpmReference
Rear lift3400 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase245 cmReference
Weight8136 to 9481 poundsReference
Front tire7.50-18Reference
Rear tire16.9-34Reference
Ag front7.50-18Reference
Ag front12.5-20 (4WD)Reference
Ag rear16.9-34Reference
Ag rear18.4-30 (4WD)Reference
Length408 cmReference
Height179 cmReference
2WD Weight3690 kgReference
4WD Weight4300 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
