Tractor · 1966Unverified

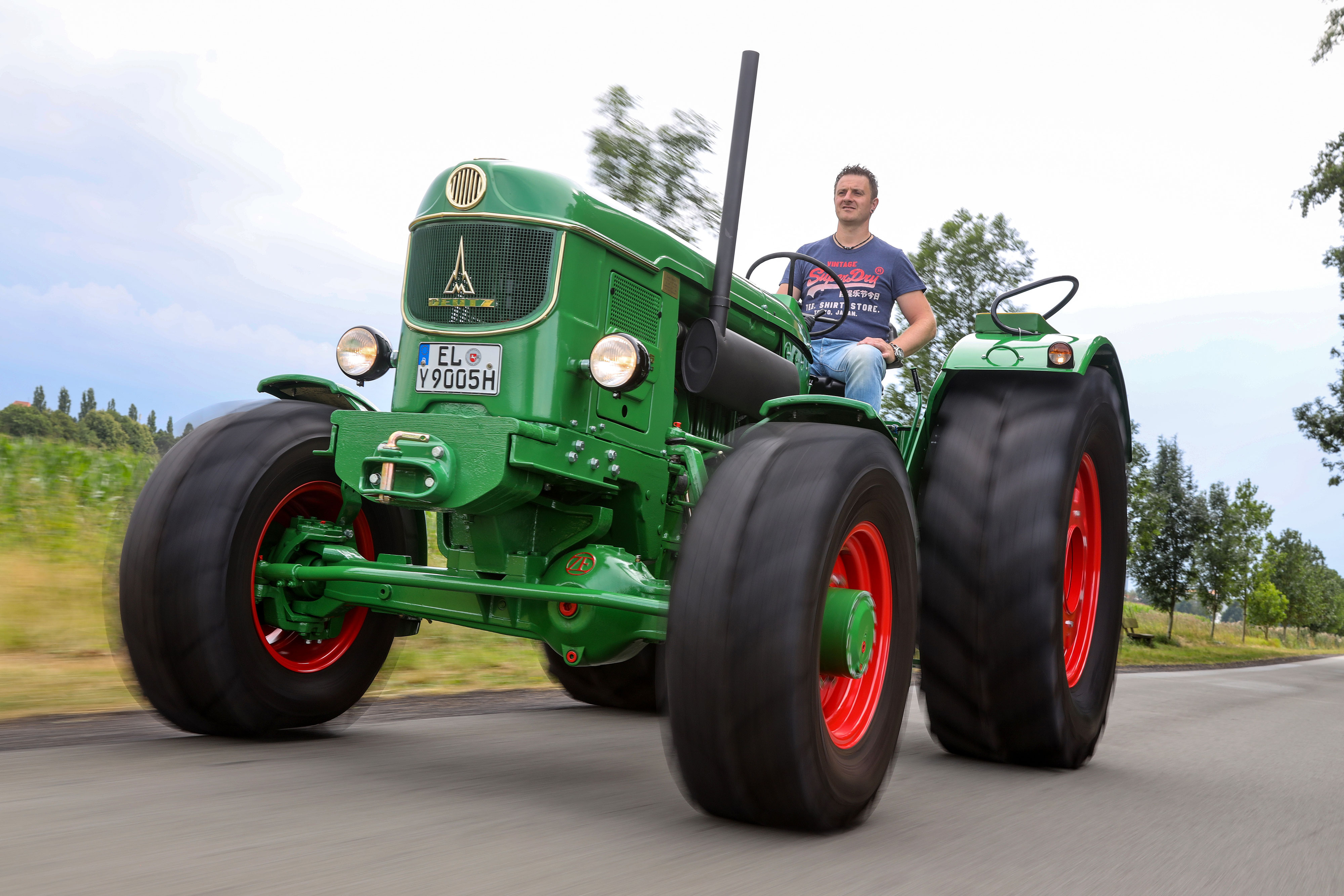

Deutz D 9005
Deutz D 9005 — 05 Series · 85 hp. Reference specifications; pending source verification.
The Deutz D 9005 is a tractor with a rated power of 85 hp, a mid-range figure for its class. This model was built from 1966 to 1967. Power comes from a 6-cylinder diesel air-cooled engine, paired with four-wheel drive with a 8-speed gearbox. It has a listed operating weight of 8103 to 9481 pounds, and it suits operations of up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
8103 to 9481 pounds
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
85 hp
Recorded weight
3675 kg
Transmissions
8-speed
Production years
1966-1967
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic drum brakesReference
Variants
D90052WDReference
D9005A4WDReference
Engine
Deutz 5.1L 6-cyl dieselReference
Engine63.4 kWReference
Deutz F6L 812Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.1 LReference
Bore/Stroke95 x 120 mmReference
Power63.4 kWReference
Rated RPM2300Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pump flow26.9 lpmReference
Rear lift3400 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase254 cmReference
Weight8103 to 9481 poundsReference
Front tire7.50-18Reference
Rear tire18.4-30Reference
Ag front7.50-18Reference
Ag front12.5-20 (4WD)Reference
Ag rear18.4-30Reference
Length408 cmReference
Height178 cmReference
2WD Weight3675 kgReference
4WD Weight4300 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
