Tractor · 1967Unverified

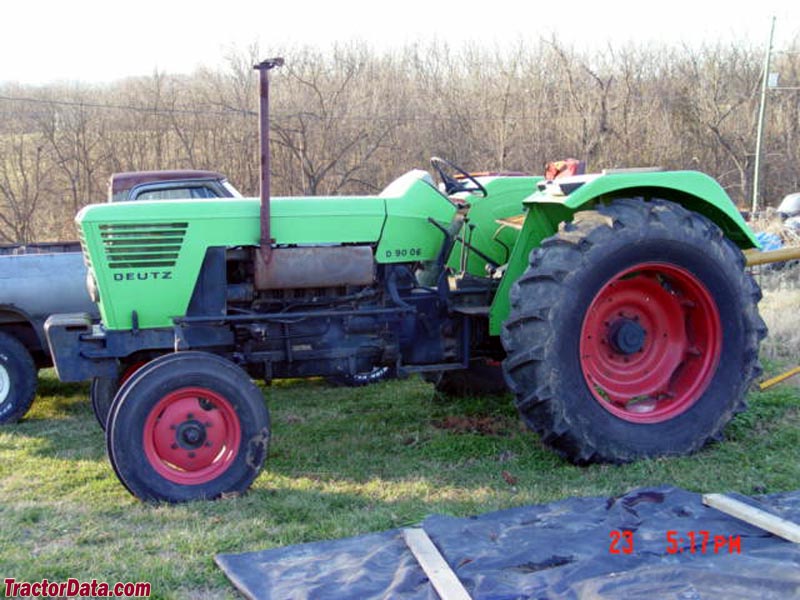

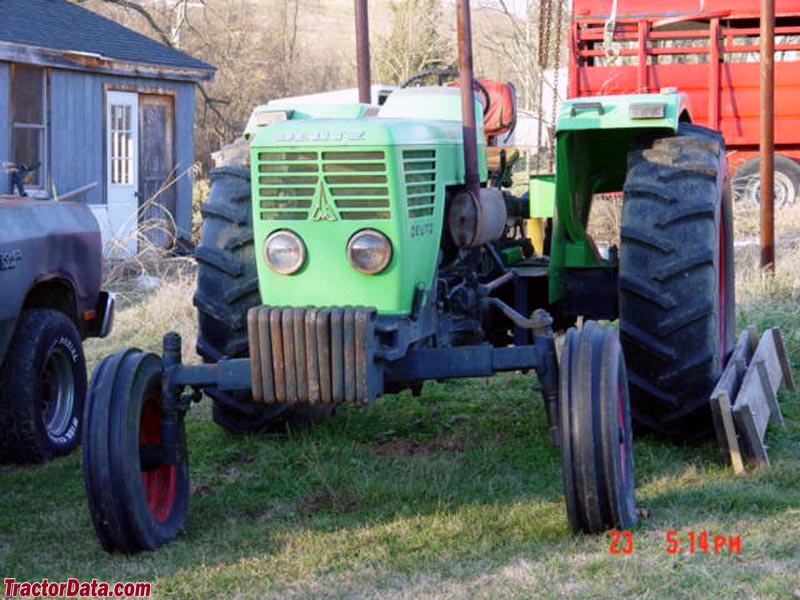

Deutz D 9006
Deutz D 9006 — 06 Series · 92 hp. Reference specifications; pending source verification.
The Deutz D 9006 is a tractor with a rated power of 92 hp, a mid-range figure for its class. This model was built from 1967 to 1970. Under the hood is a 6-cylinder diesel engine, paired with four-wheel drive with a 6-speed gearbox. It has a listed operating weight of 9261 to 9922 pounds, and it suits operations of 200–800 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
9261 to 9922 pounds
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
92 hp
Recorded weight
4200 kg
Transmissions
6-speed
Production years
1967-1970
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Two- or four-wheel driveReference
Power steeringReference
Open operator station.Reference
Variants
D90062WDReference
D9006A4WDReference
Engine
Deutz 5.7L 6-cyl dieselReference
Fuel tank92.0 LReference
Engine68.6 kWReference
DeutzReference
dieselReference
6-cylinderReference
Displacement5.7 LReference
Bore/Stroke100 x 120 mmReference
Power68.6 kWReference
Rated RPM2300Reference
Transmission
6-speedReference
12-speedReference
Gears6 forward and 4 reverseReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow34.8 lpmReference
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase255 cmReference
Weight9261 to 9922 poundsReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
2WD Ag front7.50-20Reference
2WD Ag front12.5-20Reference
Ag rear18.4-34Reference
Length421 cmReference
Height245 cmReference
2WD Weight4200 kgReference
4WD Weight4500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
