Tractor · 1953Unverified

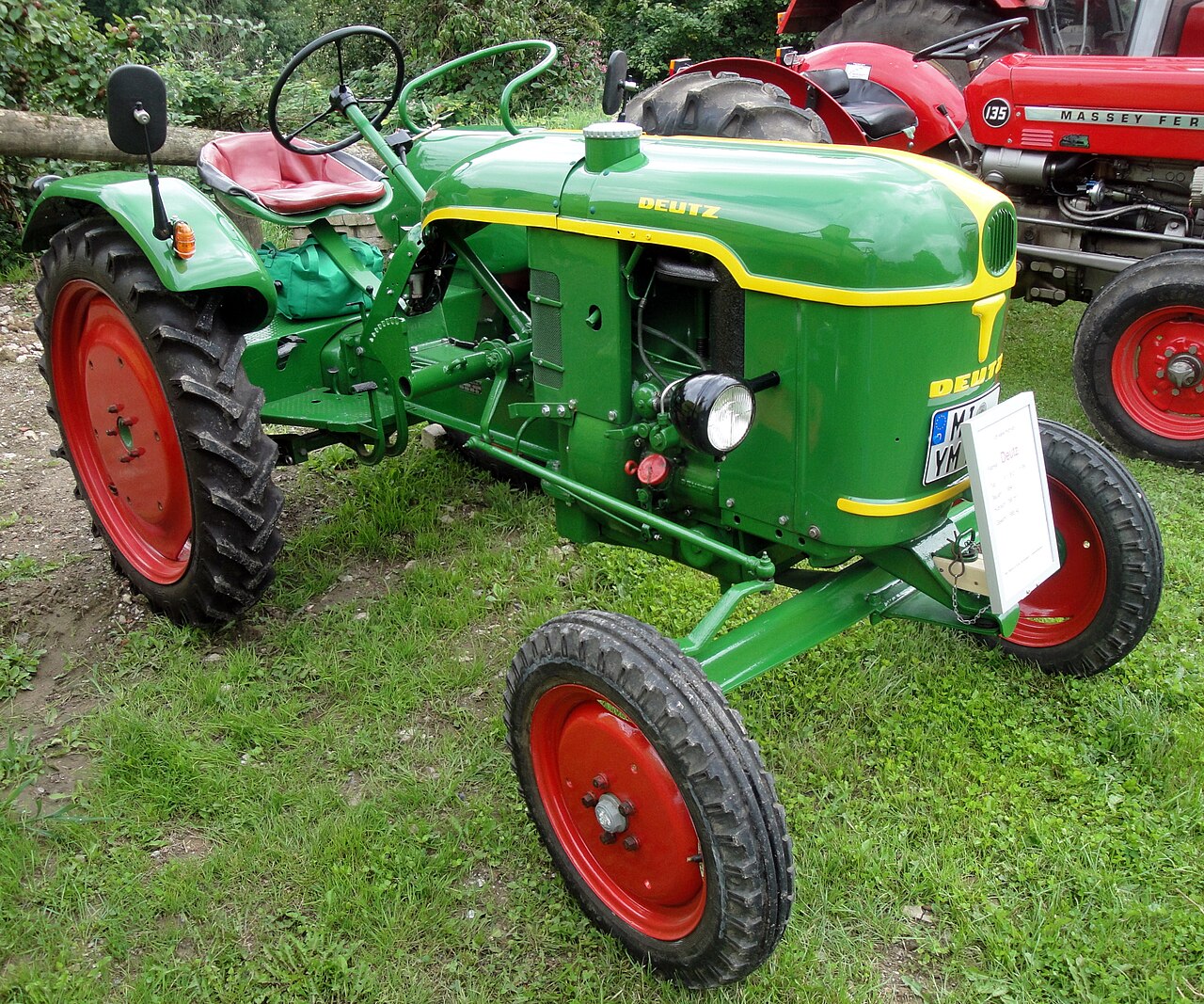

Deutz F1L612
Deutz F1L612 — FL Series · 11 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
830 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Built in GermanyReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Engine
Deutz 0.8L 1-cyl dieselReference
Fuel tank20.1 LReference
Engine8.1 kWReference
DeutzReference
dieselReference
1-cylinderReference
air-cooledReference
Displacement0.8 LReference
Bore/Stroke90 x 120 mmReference
Power8.1 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.2 LReference
Transmission
6-speed gearReference
TransmissionDeutzReference
TypegearReference
Gears6 forward and 3 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase180 cmReference
Weight830 kgReference
Front tire4.00-16Reference
Rear tire7-24Reference
Ag front4.00-16Reference
Ag rear7-24Reference
Length266 cmReference
Width142 cmReference
Height139 cmReference
Ground clearance48 cmReference
Clearance (front axle)37 cmReference
Rear tread124 to 150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
