Tractor · 1936Unverified
Deutz F1M414
Deutz F1M414 — FM Series · 11 hp. Reference specifications; pending source verification.

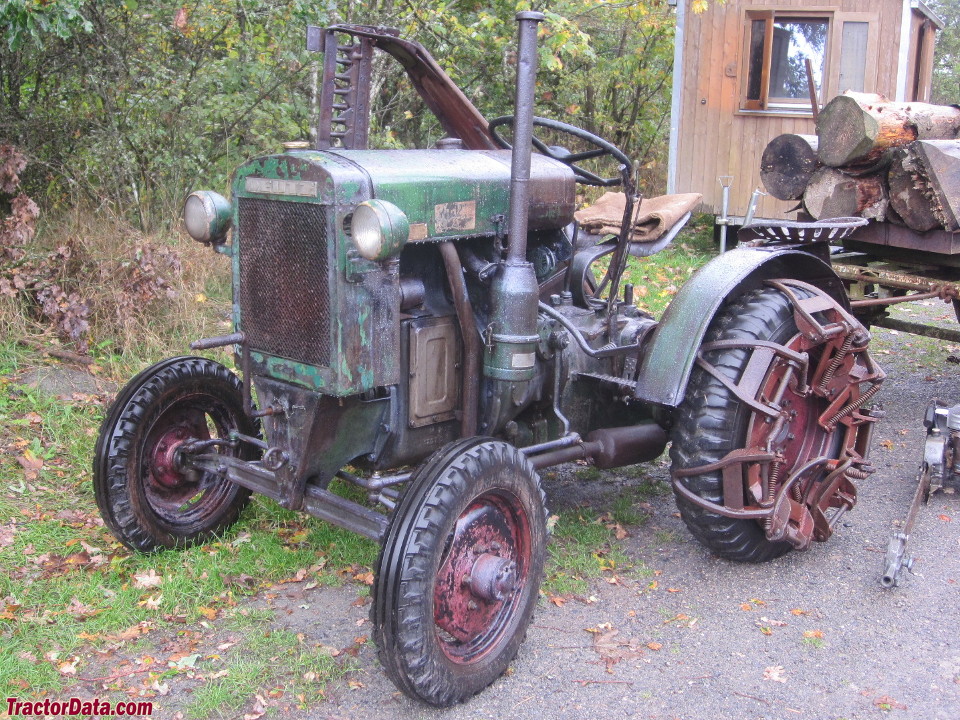

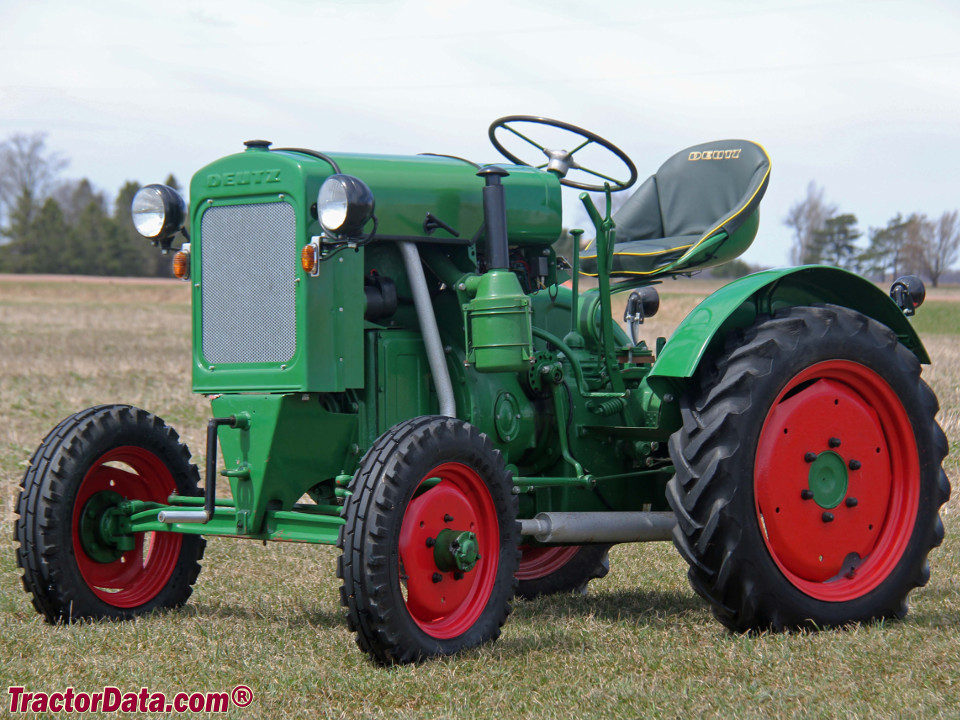

The Deutz F1M414 is a tractor, rated at 11 horsepower, which positions it at the lighter end of its class. It was manufactured from 1936 to 1951. The tractor features a 1-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a 4-speed gearbox. It has a listed operating weight of 1129 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
1129 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
11 hp
Recorded weight
1129 kg
Transmissions
4-speed gear
Production years
1936-1951
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Built in GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Deutz 1.1L 1-cyl dieselReference
Fuel tank28.0 LReference
Engine8.1 kWReference
DeutzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke100 x 140 mmReference
Power8.1 kWReference
StarterelectricReference
Starter volts6Reference
Oil capacity4.5 LReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase143 cmReference
Weight1129 kgReference
Front tire5.00-16Reference
Rear tire8.00-20Reference
Ag front5.00-16Reference
Ag rear8.00-20Reference
Length228 cmReference
Width153 cmReference
Height169 cmReference
Ground clearance24 cmReference
Front tread127 cmReference
Rear tread145 cmReference
Capacities
Diameter22 cmReference
Width10 cmReference
RPM1120Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
