Tractor · 1950Unverified

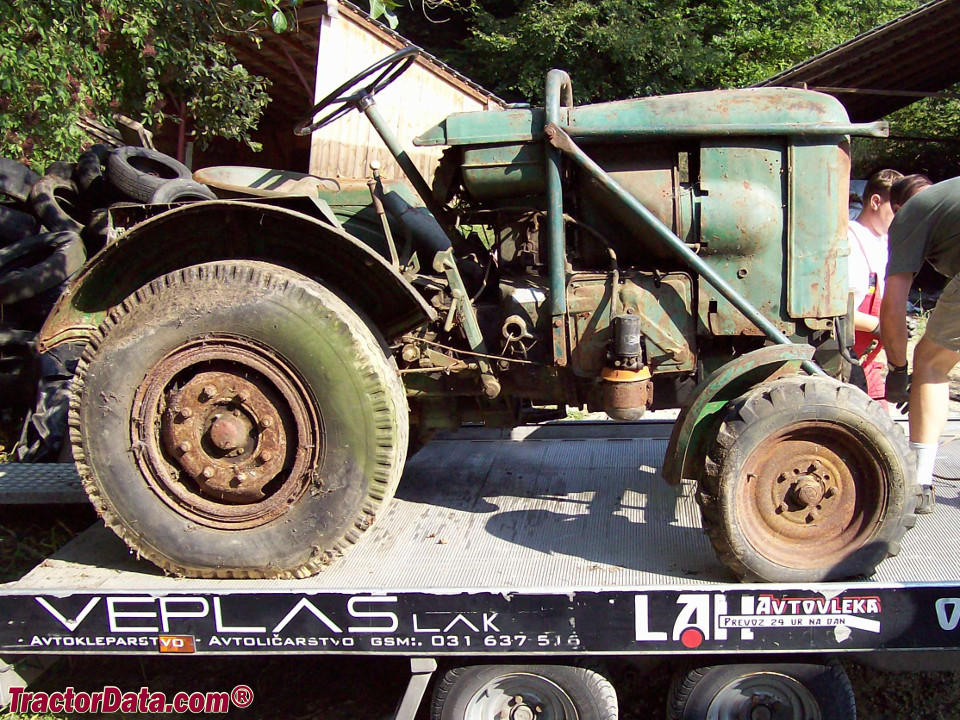

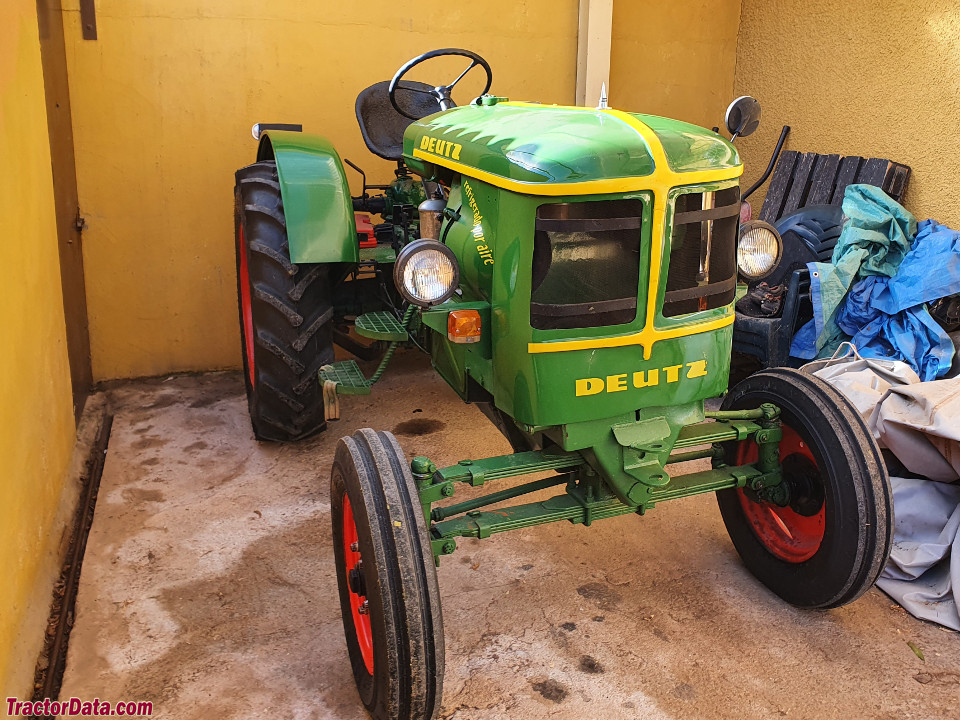

Deutz F2L514 50
Deutz F2L514 50 — Model year 1950-19531954-1955 · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1850 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Built in GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Deutz 2.7L 2-cyl dieselReference
Fuel tank37.1 LReference
Engine20.6 kWReference
DeutzReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement2.7 LReference
Bore/Stroke110 x 140 mmReference
Power20.6 kWReference
Rated RPM1550Reference
StarterelectricReference
Starter volts12Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase174 cmReference
Weight1850 kgReference
Front tire5.00-16Reference
Rear tire10.00-28Reference
Ag front5.00-16Reference
Ag rear10.00-28Reference
Ag rear11.00-28Reference
Length283 cmReference
Width157 cmReference
Height169 cmReference
Ground clearance40 cmReference
Rear tread124 to 150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
