Tractor · 1934Unverified

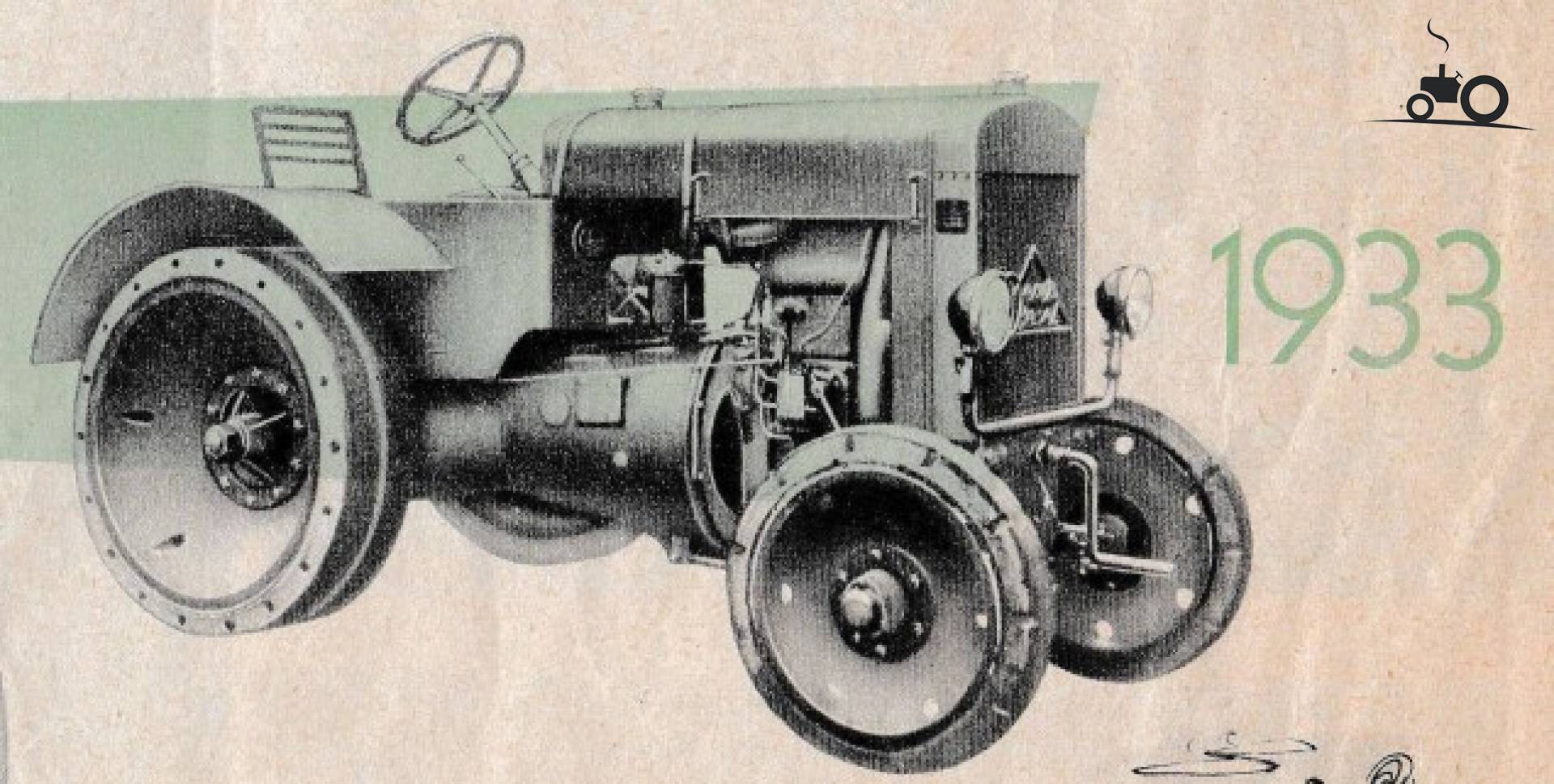

Deutz F2M317

Name: Deutz F2M317
Brand: Deutz

Deutz F2M317 — FM Series · 30 hp. Reference specifications; pending source verification.

The Deutz F2M317 is a compact tractor rated at 30 hp, falling within the lower end of its class in terms of power output. Manufactured from 1934 to 1942, it features a 2-cylinder diesel liquid-cooled engine, which transmits power through a 5-speed gearbox to its two-wheel drive system. The listed weight of the tractor is 2649 kg, making it suitable for tasks of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

2649 kg

Catalogue coverage

Variants represented

Richest spec table

25 rows

Recorded power

30 hp

Recorded weight

2649 kg

Transmissions

5-speed gear

Production years

1934-1942

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerDeutzReference

Built in GermanyReference

Two-wheel driveReference

Manual steeringReference

Open operator station. Cab available.Reference

Engine

Deutz 3.8L 2-cyl dieselReference

Fuel tank85.2 LReference

Engine22.1 kWReference

DeutzReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke120 x 170 mmReference

Power22.1 kWReference

Rated RPM1350Reference

Transmission

5-speed gearReference

TypegearReference

Gears5 forward and 1 reverseReference

Dimensions

Wheelbase192 cmReference

Weight2649 kgReference

Length340 cmReference

Width199 cmReference

Height (cab)223 cmReference

Ground clearance29 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
