Tractor · 1941Unverified

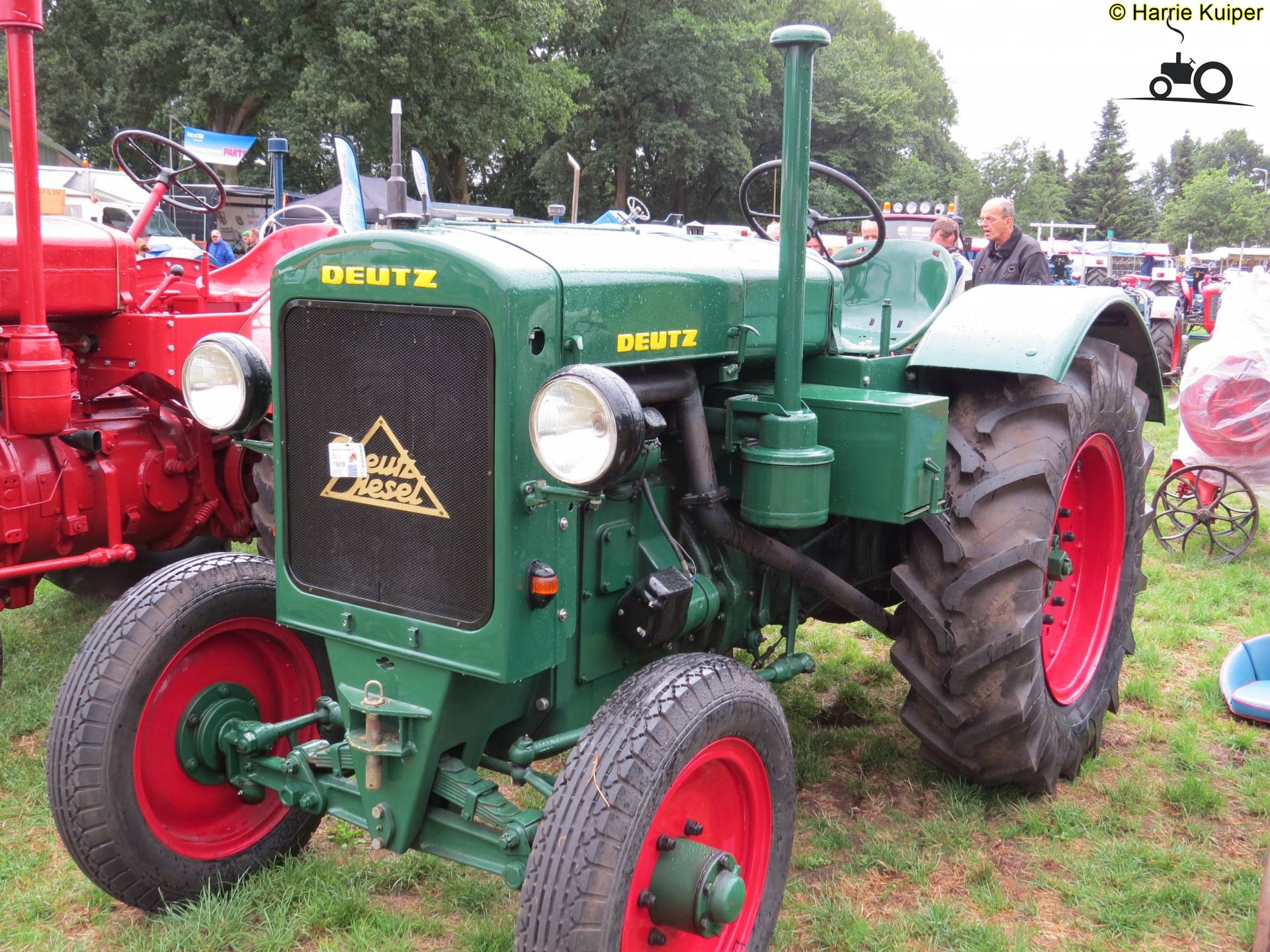

Deutz F2M417
Deutz F2M417 — FM Series · 35 hp. Reference specifications; pending source verification.
The Deutz F2M417 is a compact tractor with a power rating of 35 hp, falling into a smaller category within its class. Manufactured from 1941 to 1953, the model features a 2-cylinder diesel liquid-cooled engine driving a two-wheel drive system with a 5-speed gearbox. The listed weight of the Deutz F2M417 is 2500 kg, suitable for tasks involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2500 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
35 hp
Recorded weight
2500 kg
Transmissions
5-speed gear
Production years
1941-1953
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Built in GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Deutz 3.8L 2-cyl dieselReference
Fuel tank90.1 LReference
Engine25.7 kWReference
DeutzReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke120 x 170 mmReference
Power25.7 kWReference
Rated RPM1350Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Oil capacity20.0 LReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase194 cmReference
Weight2500 kgReference
Length318 cmReference
Width167 cmReference
Height198 cmReference
Height (cab)227 cmReference
Ground clearance29 cmReference
Rear tread135 cmReference
Capacities
Diameter36 cmReference
Width17 cmReference
RPM900Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
